2DC-0001-I05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 3.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.60 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 20.50 Body Height: 13.50 Body Length: 13.50 PCB to Top Height: 13.50 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

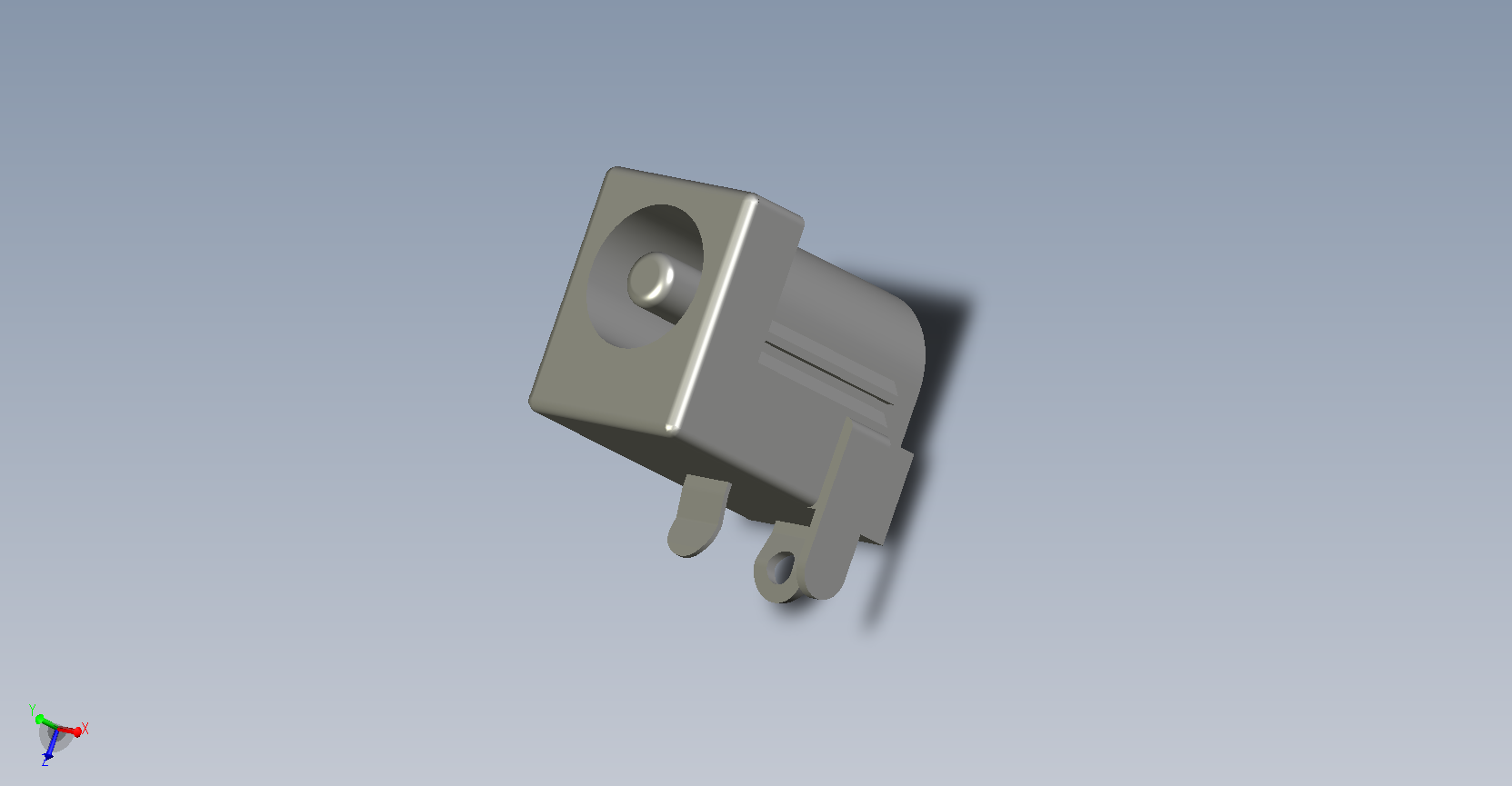

2DC-0005-B12 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

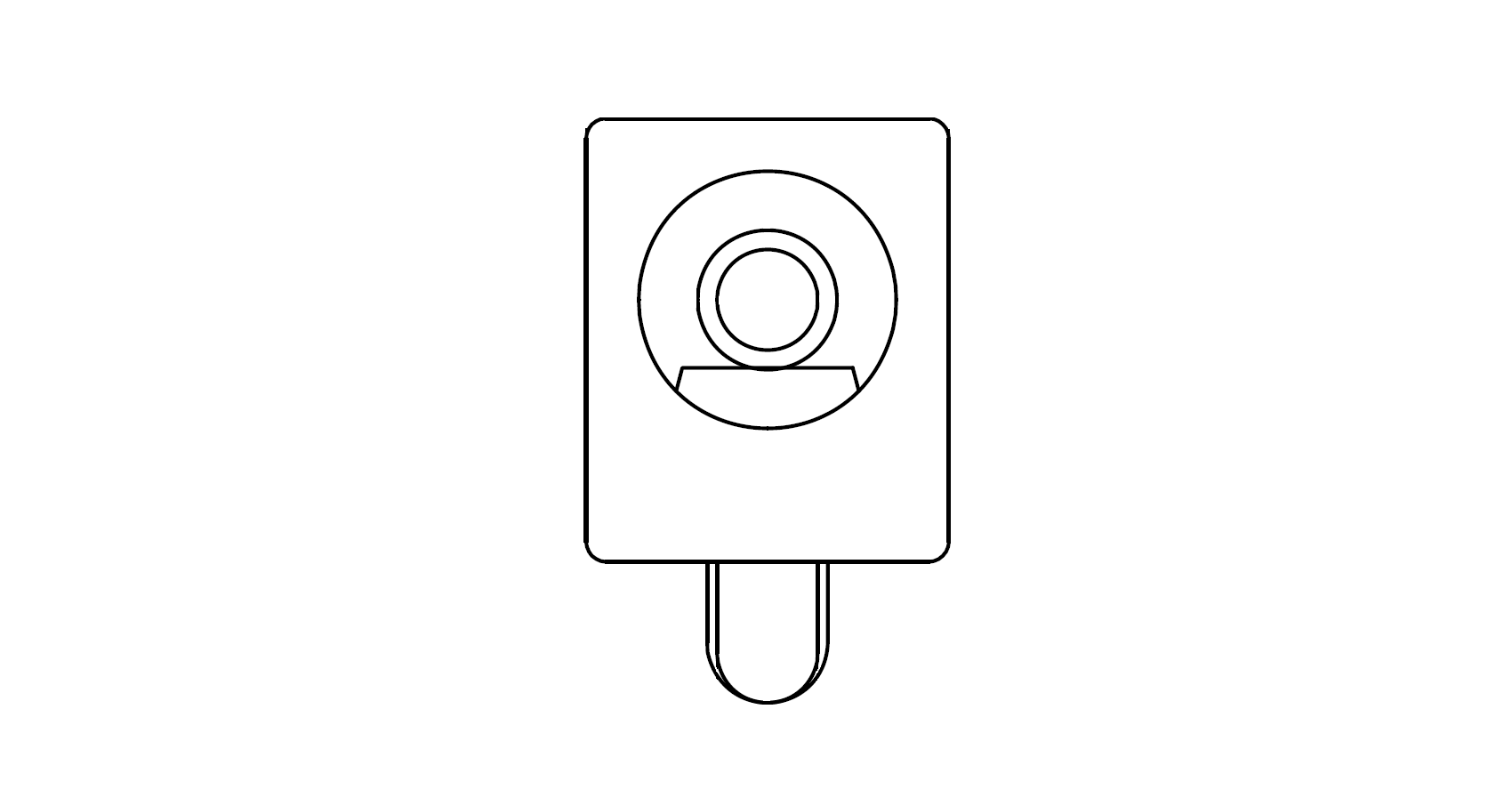

2DC-0005-B17 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

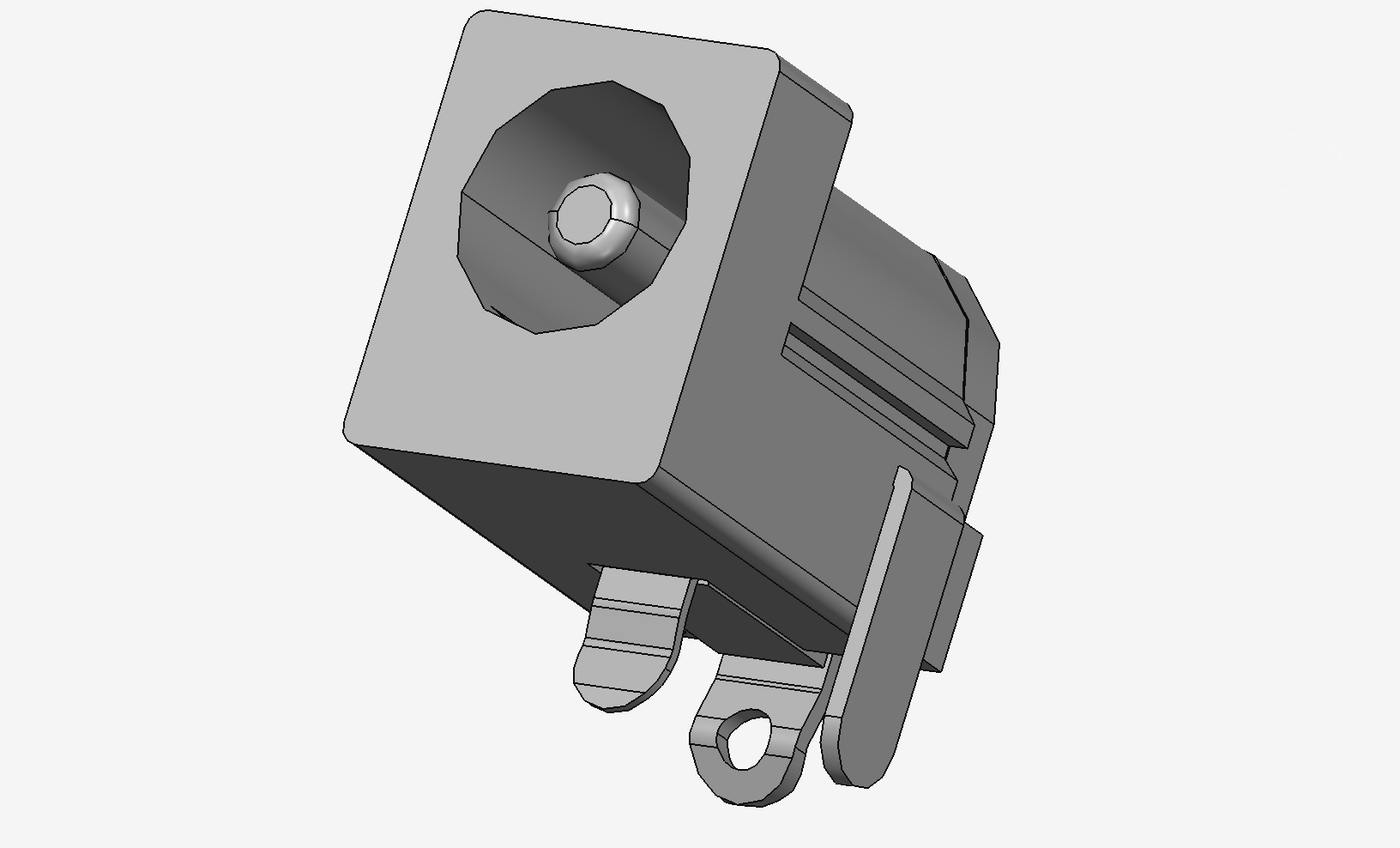

2DC-0005-B21F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

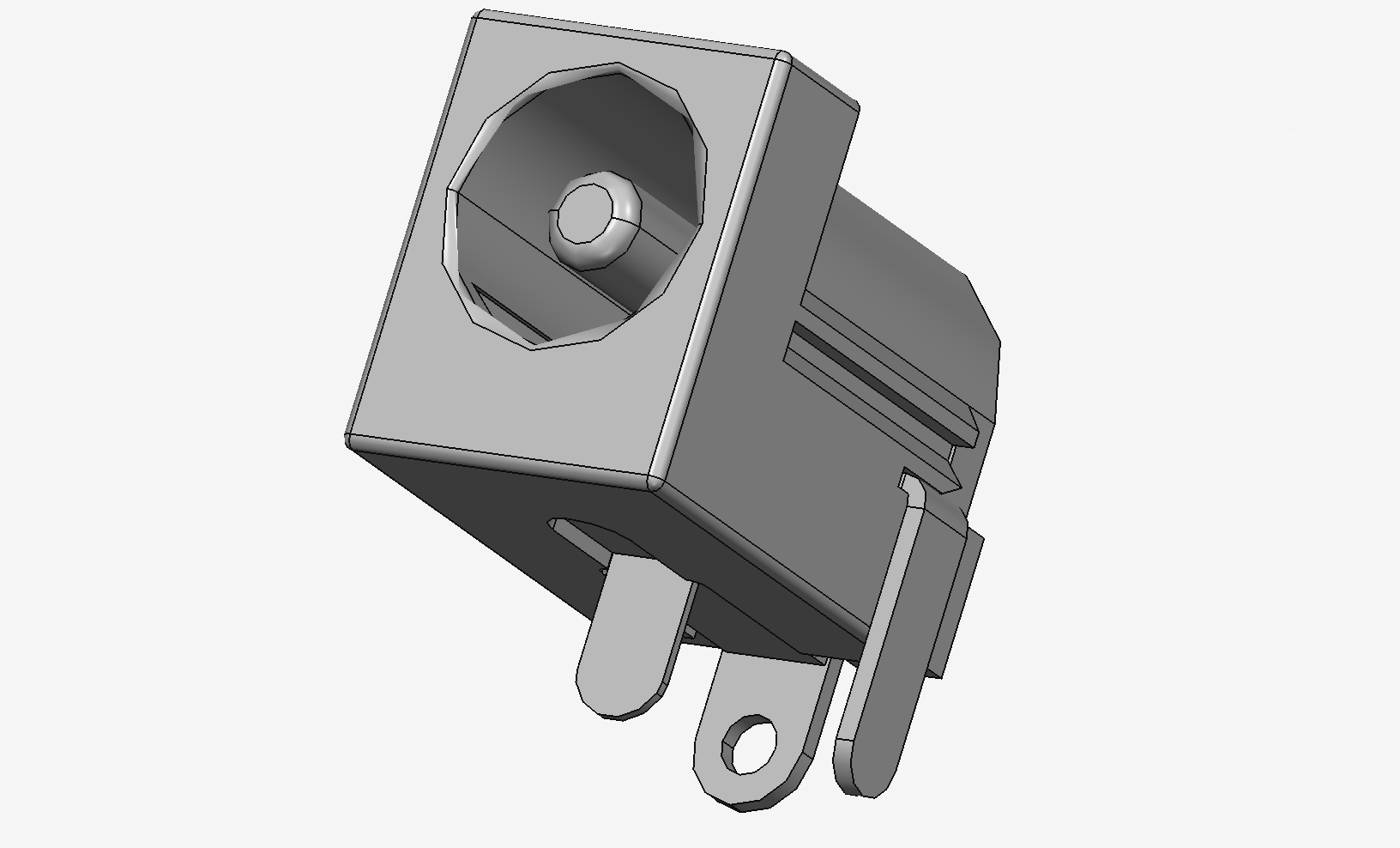

2DC-0005-B22F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.20 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0005-C02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005-C04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005-D02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005-D04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

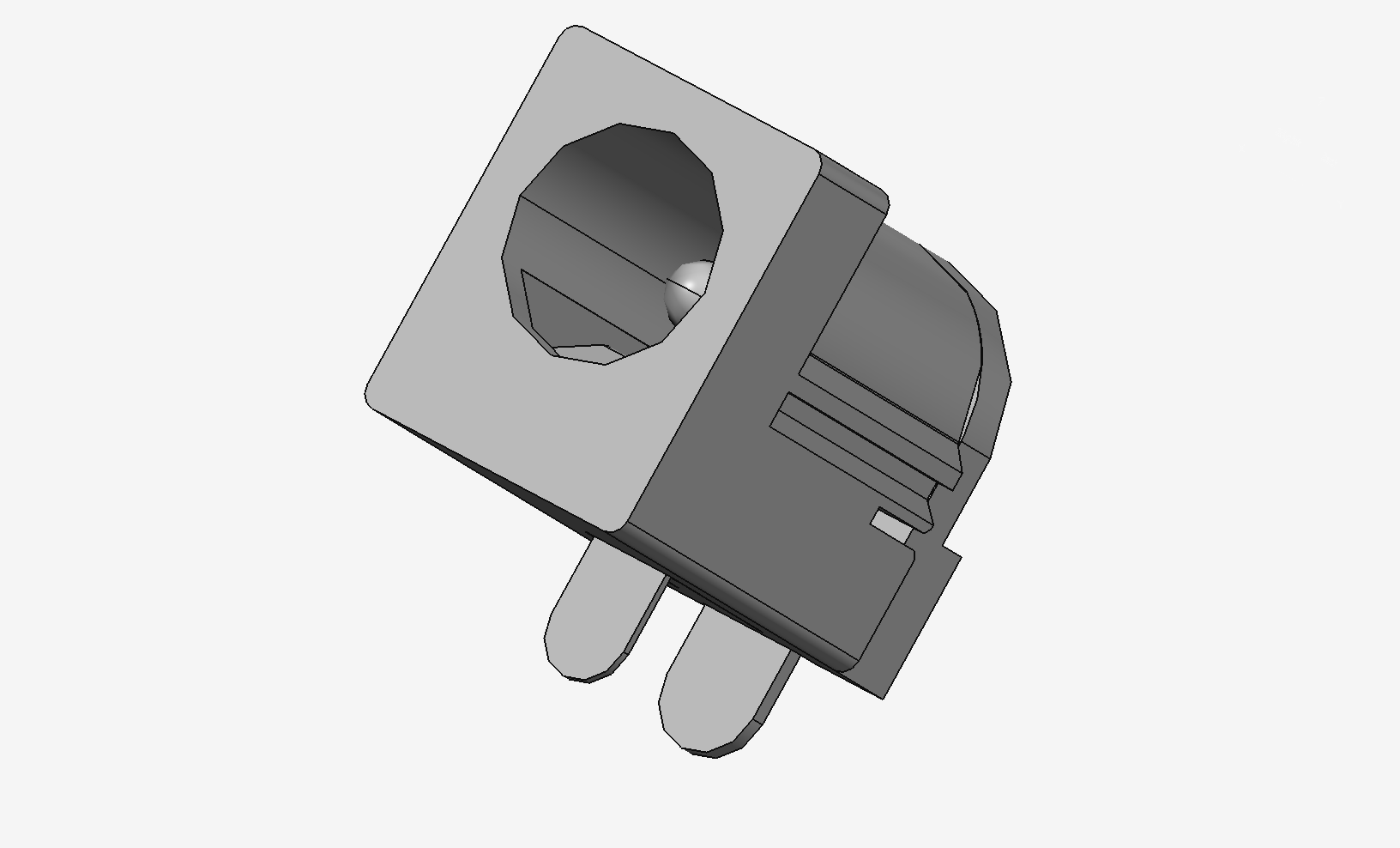

2DC-0005-D10 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

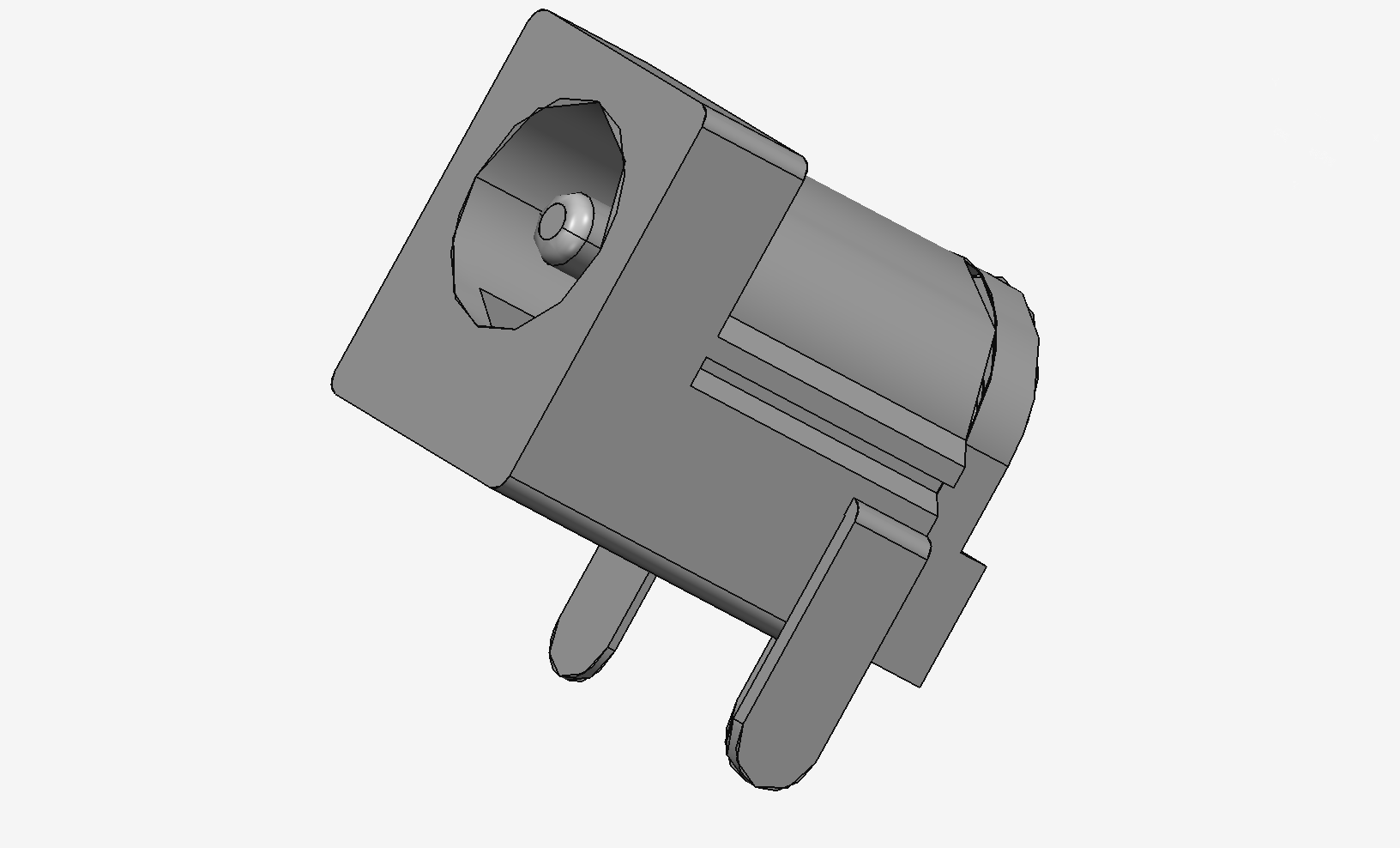

2DC-0005-D11 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

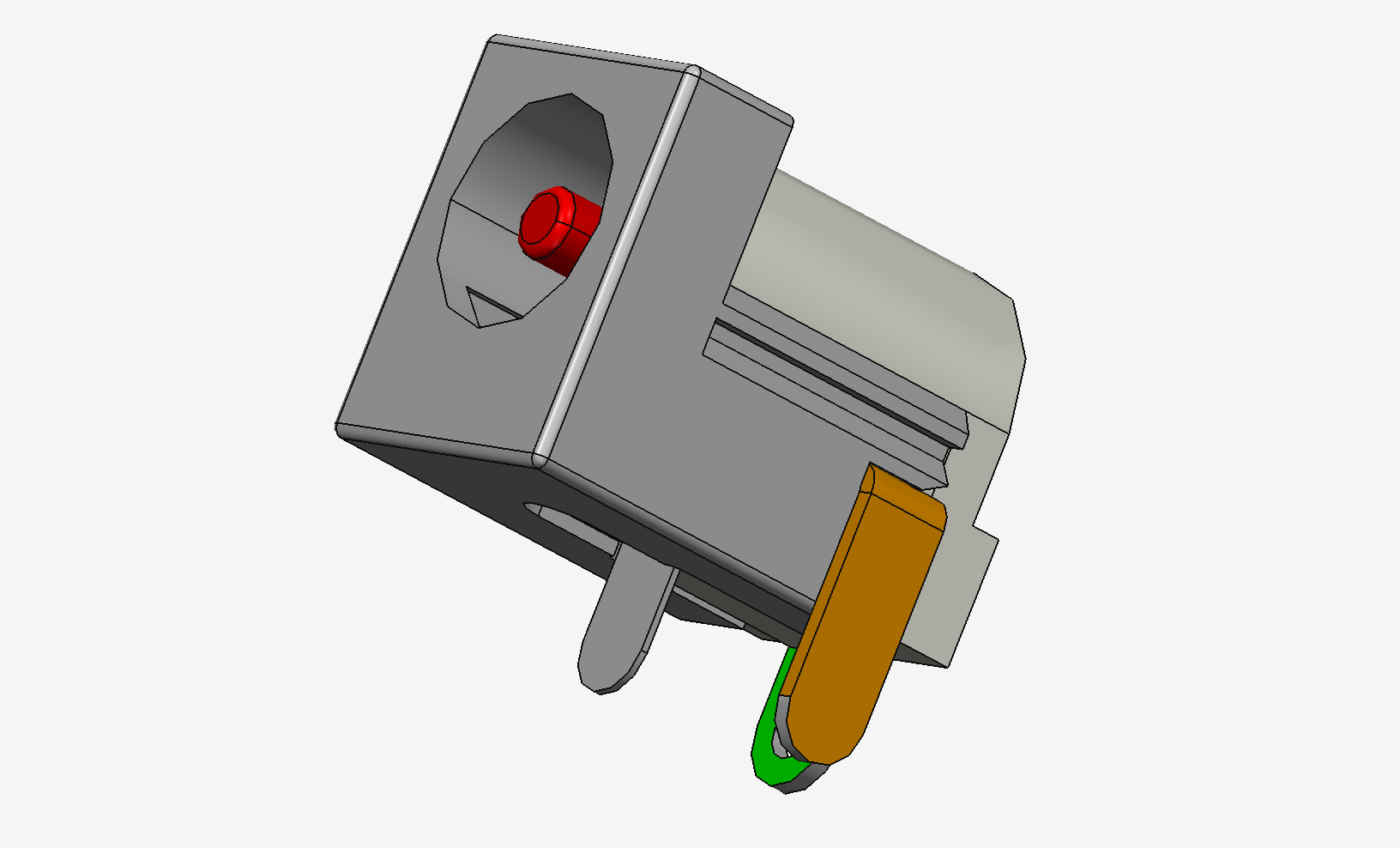

2DC-0005-D23H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

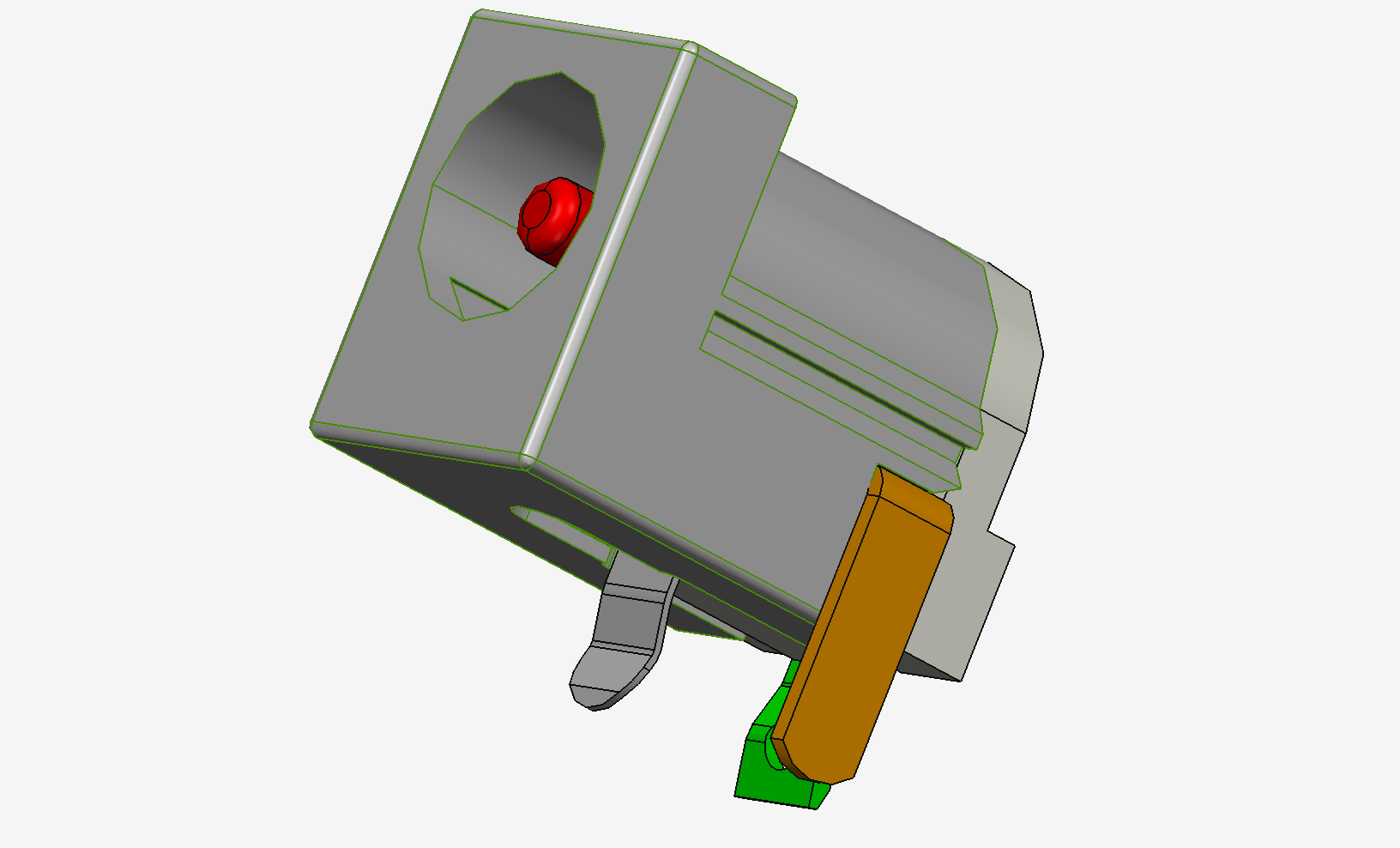

2DC-0005-D25F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0005-D28H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

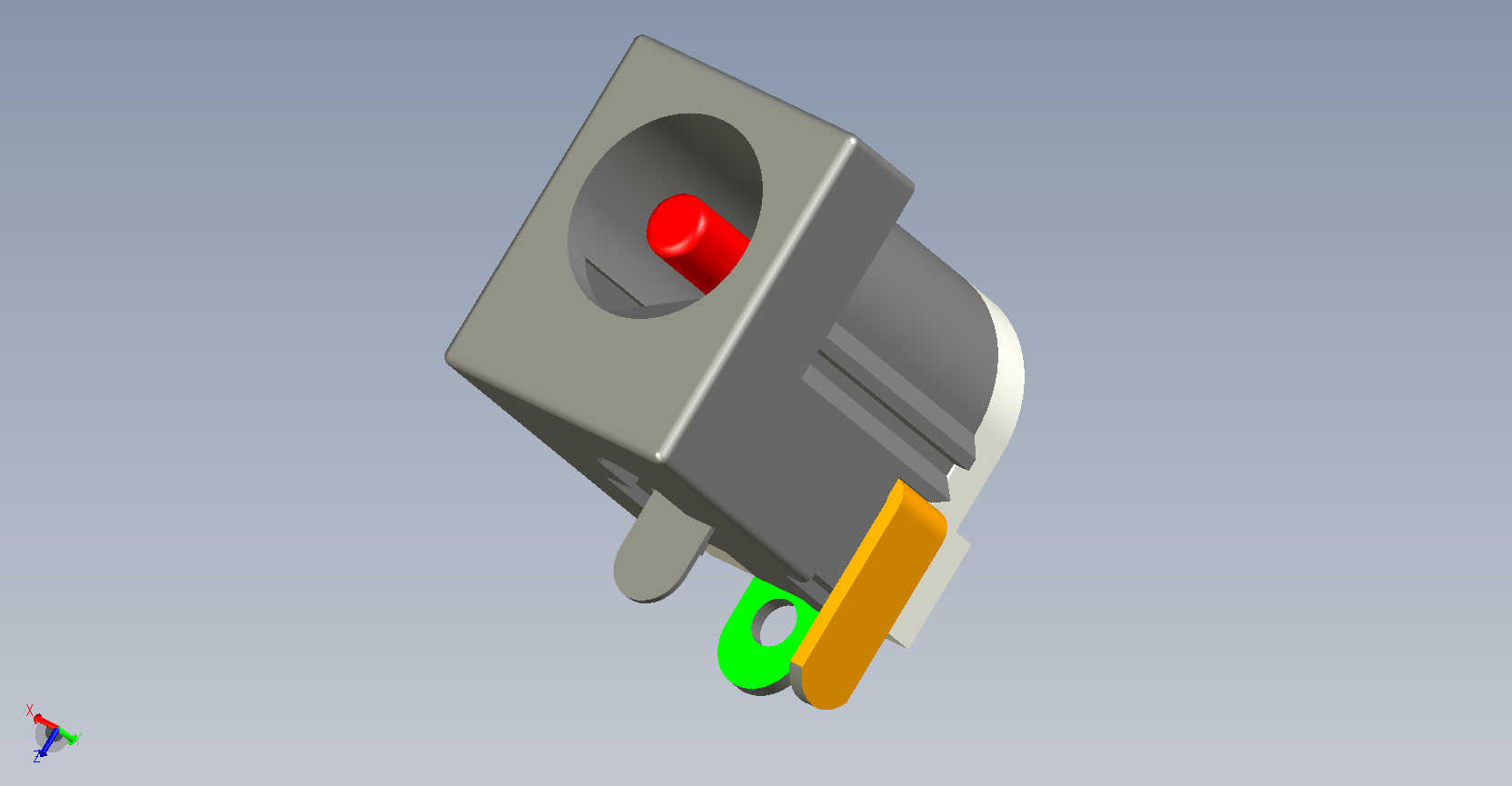

2DC-0005-D30F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0005-F02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005-F04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005-G02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005-G04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005-G17F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.15 Mating Plug: 1.20x4.00 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 15.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

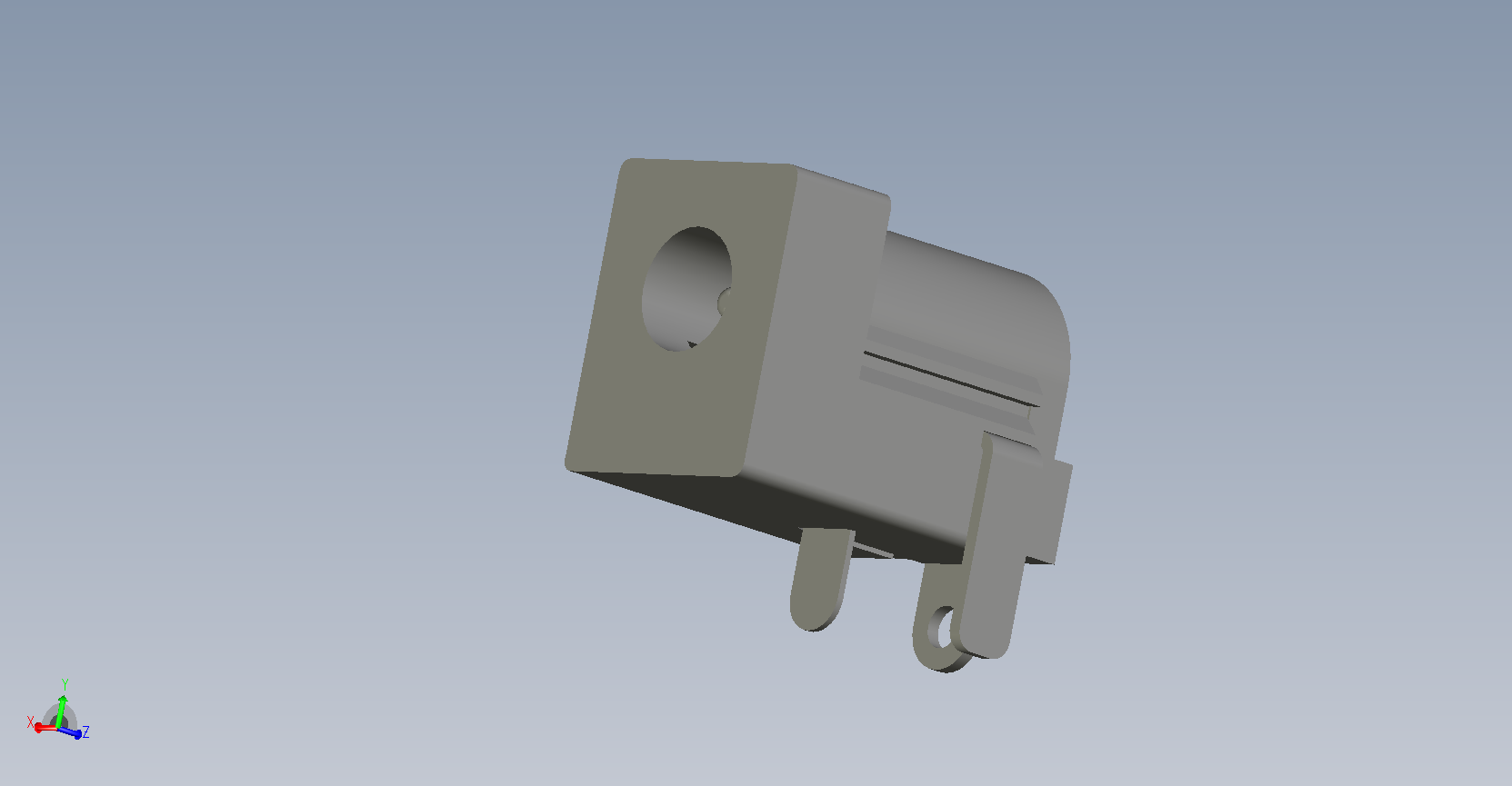

2DC-0005-G20F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.15 Mating Plug: 1.20x4.00 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 15.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: White Halogen Free: Yes High Temperature: No LED: No

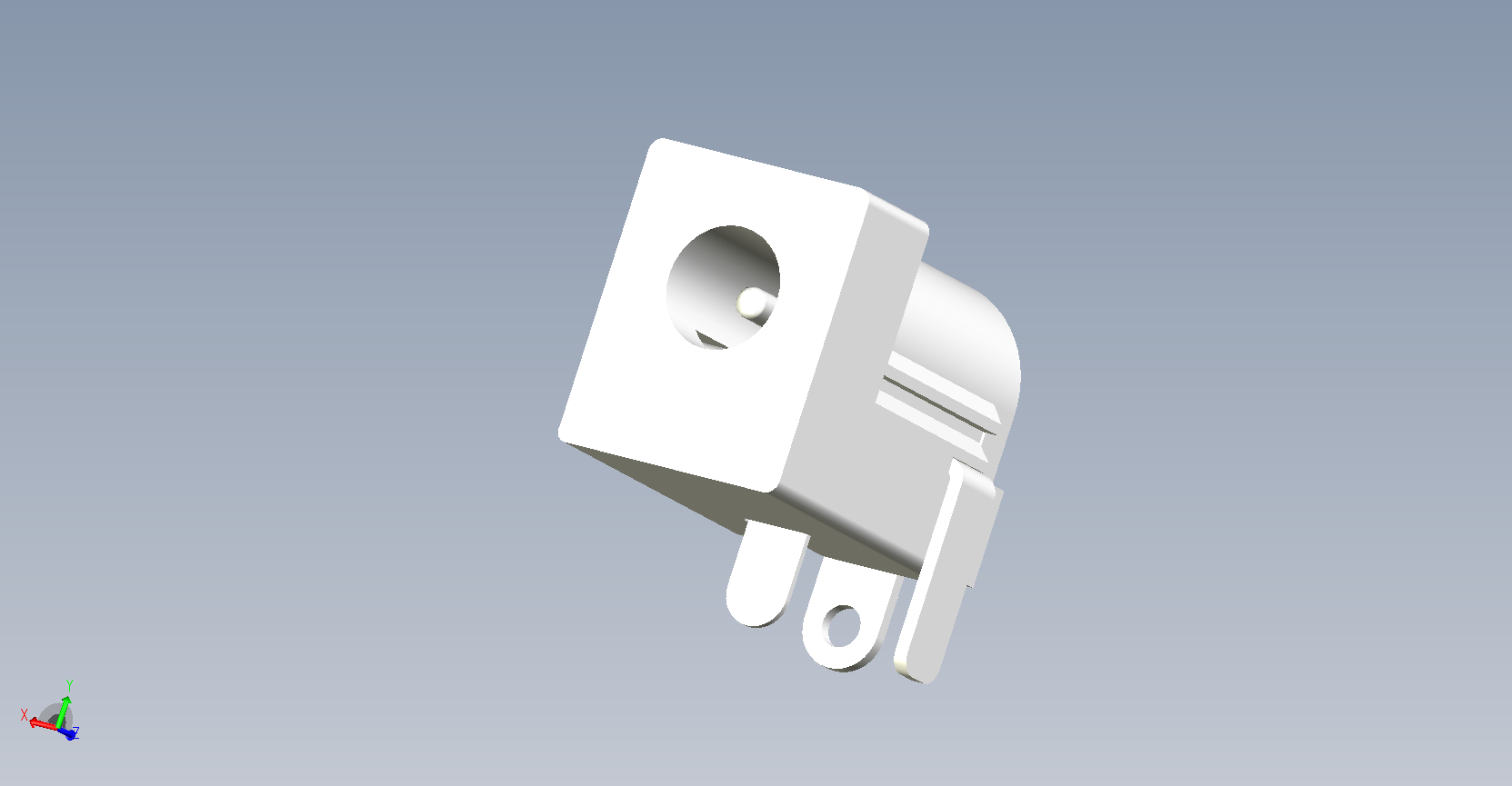

2DC-0005-G21F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.15 Mating Plug: 1.20x4.00 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 15.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: White Halogen Free: Yes High Temperature: No LED: No

2DC-0005-G22F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.15 Mating Plug: 1.20x4.00 Center Height: 6.50 Body Width: 8.85 Body Height: 11.00 Body Length: 15.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: White Halogen Free: Yes High Temperature: No LED: No

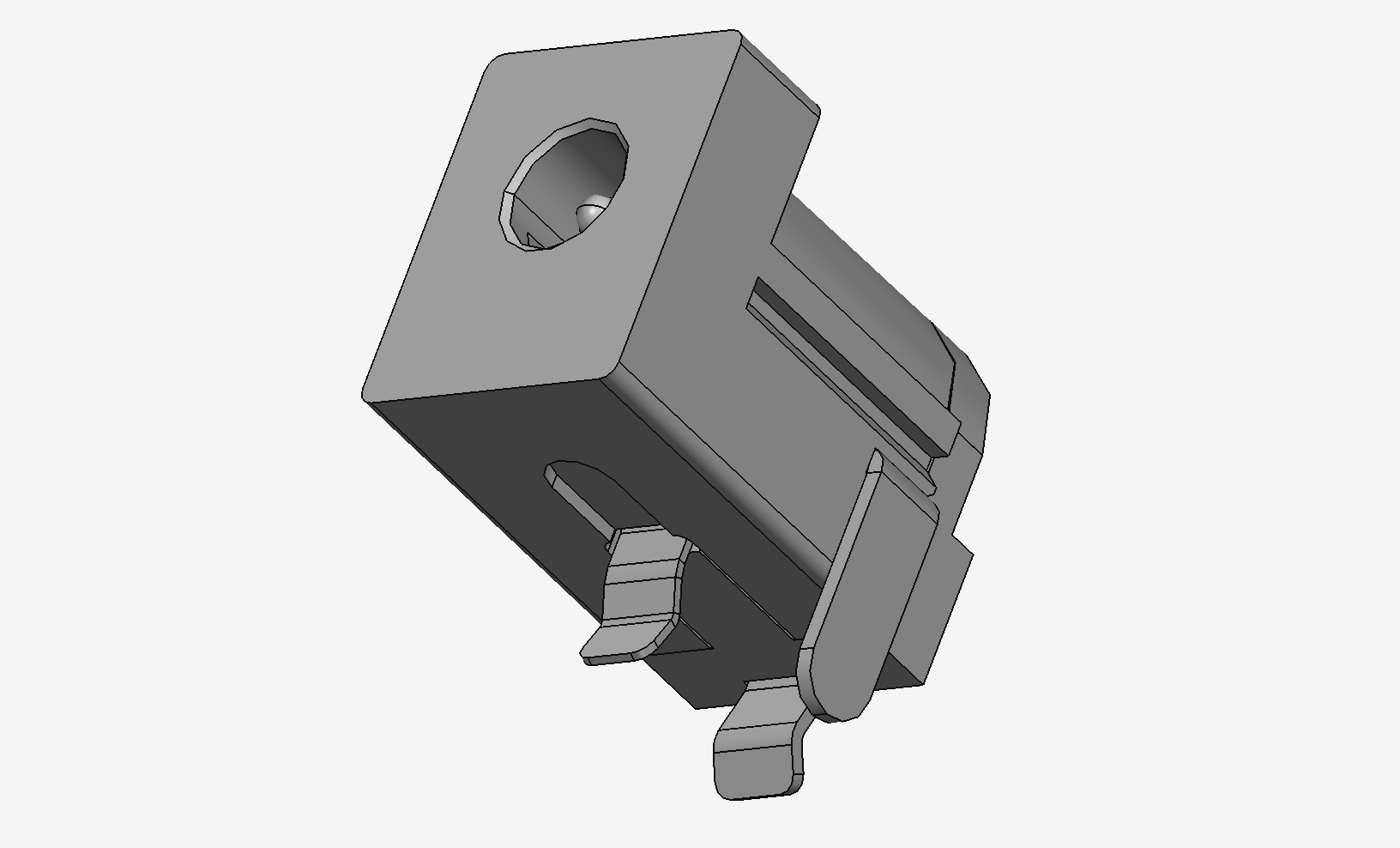

2DC-0005-H18 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

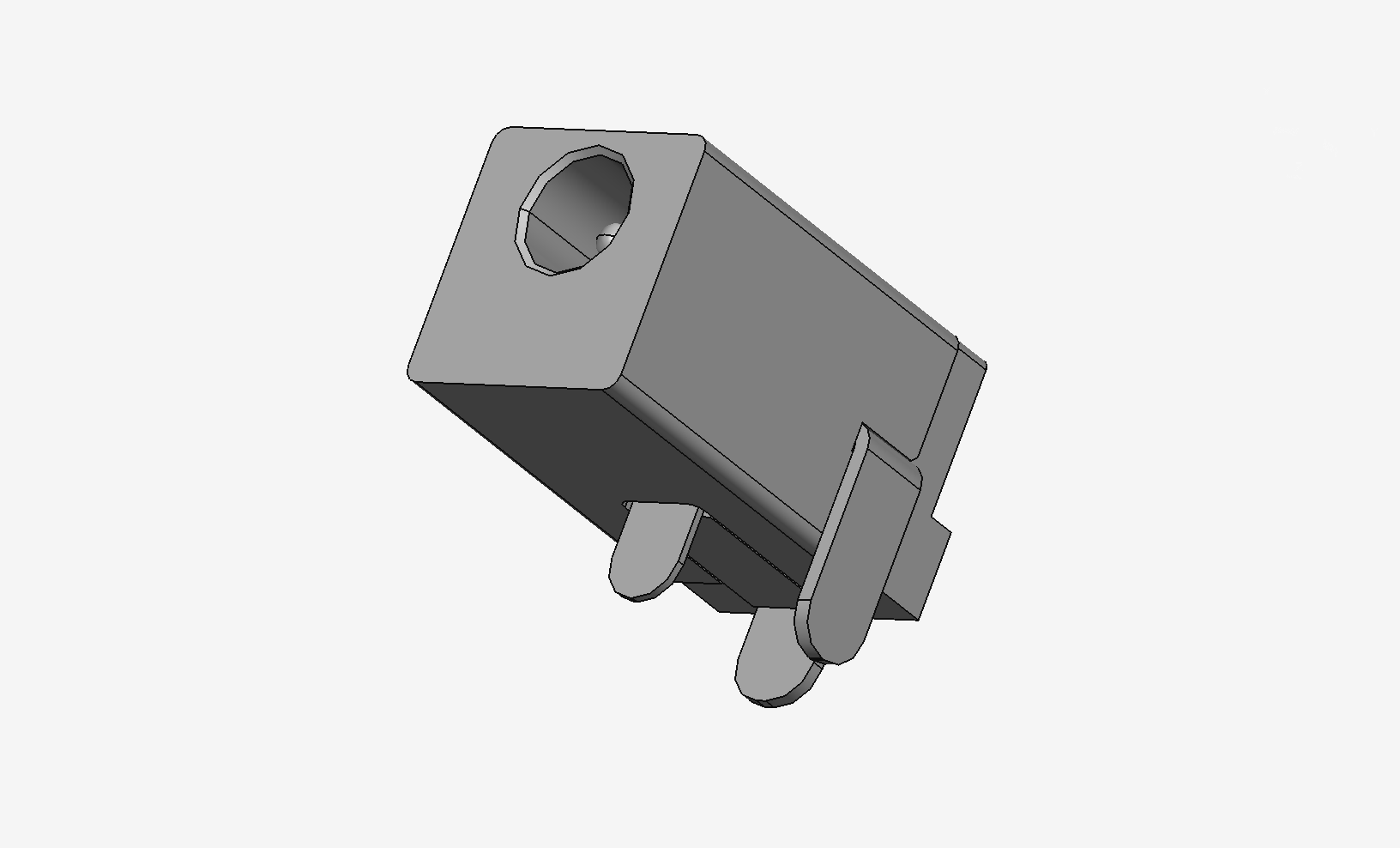

2DC-0005-H20 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 5.50 Body Width: 8.00 Body Height: 8.00 Body Length: 14.50 PCB to Top Height: 8.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

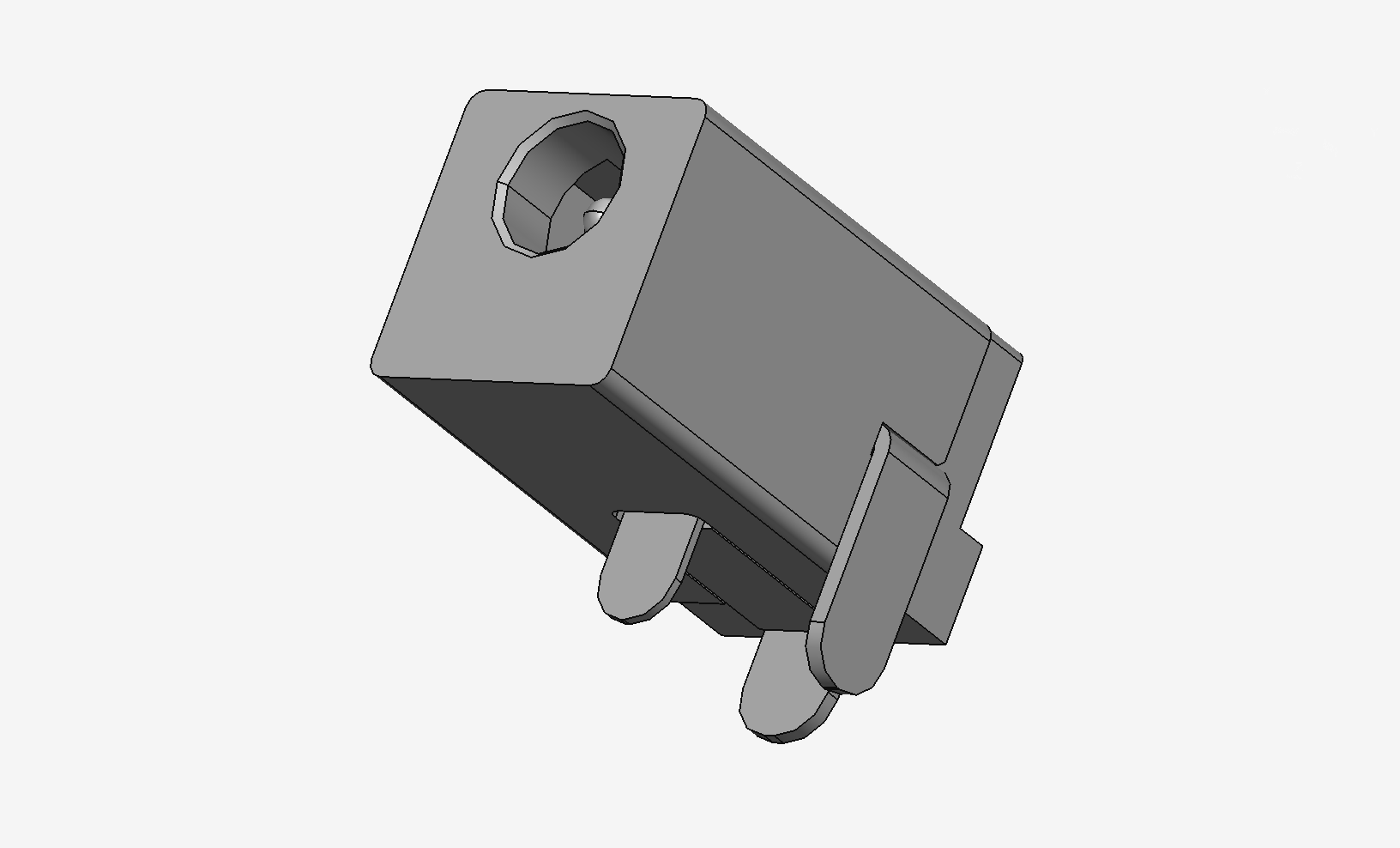

2DC-0005-H22F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 5.50 Body Width: 8.00 Body Height: 8.00 Body Length: 14.50 PCB to Top Height: 8.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

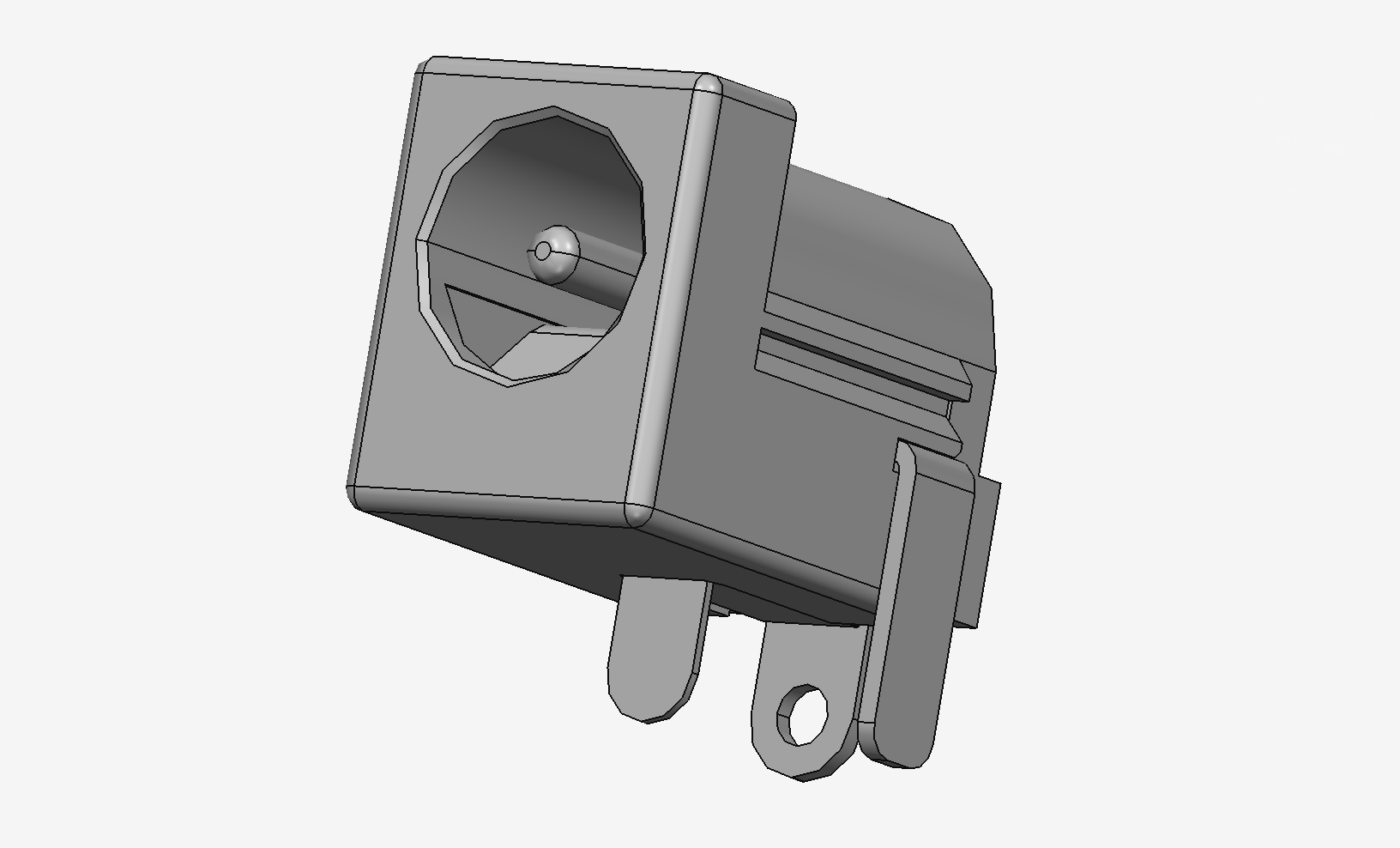

2DC-0005-Q11H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005-Q21H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

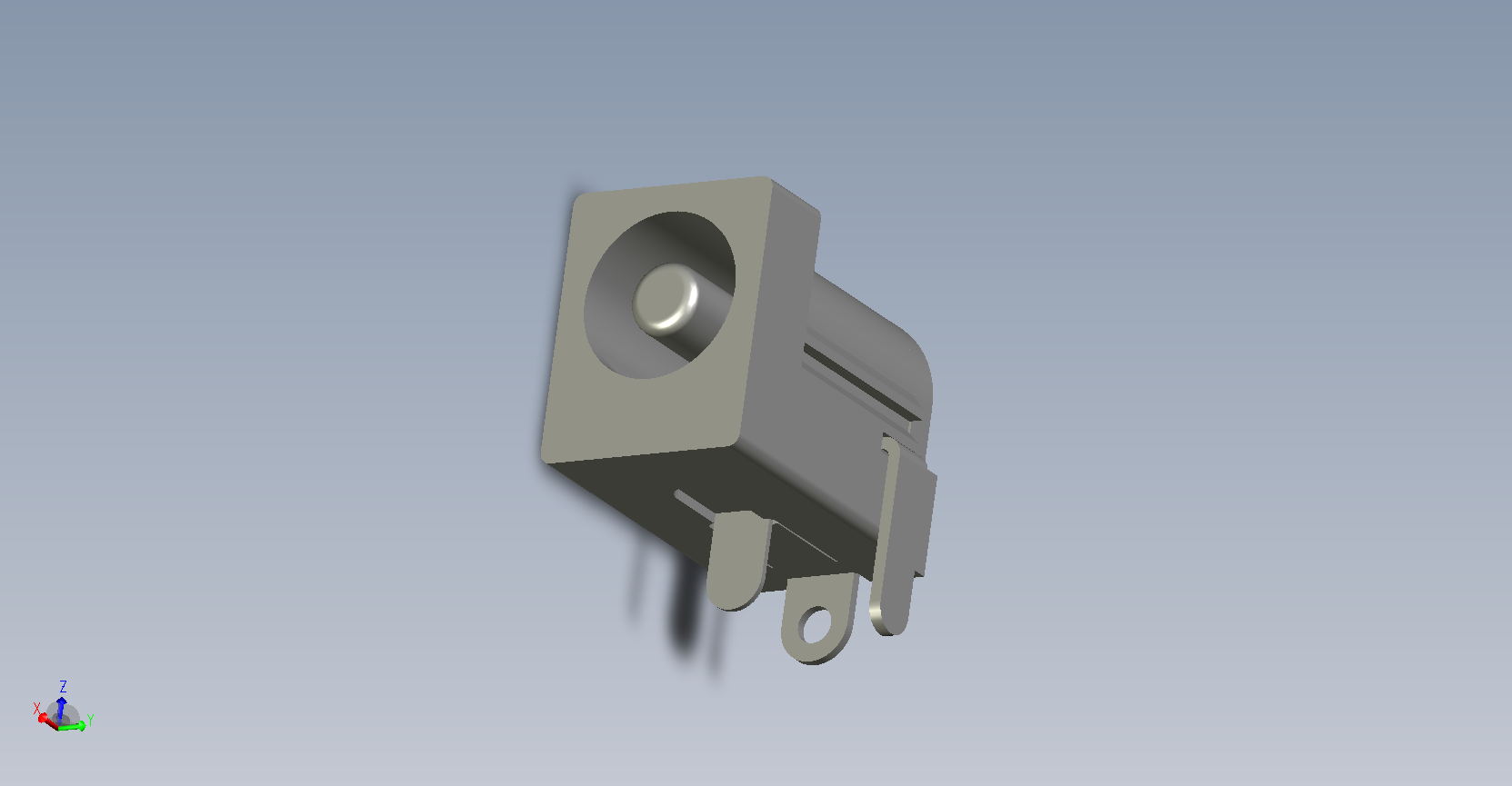

2DC-0005-S15 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 3.00 Mating Plug: 3.10x5.90 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.20 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

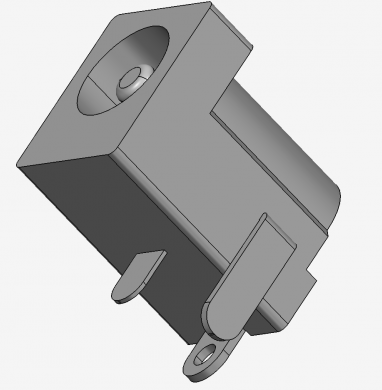

2DC-0005B100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

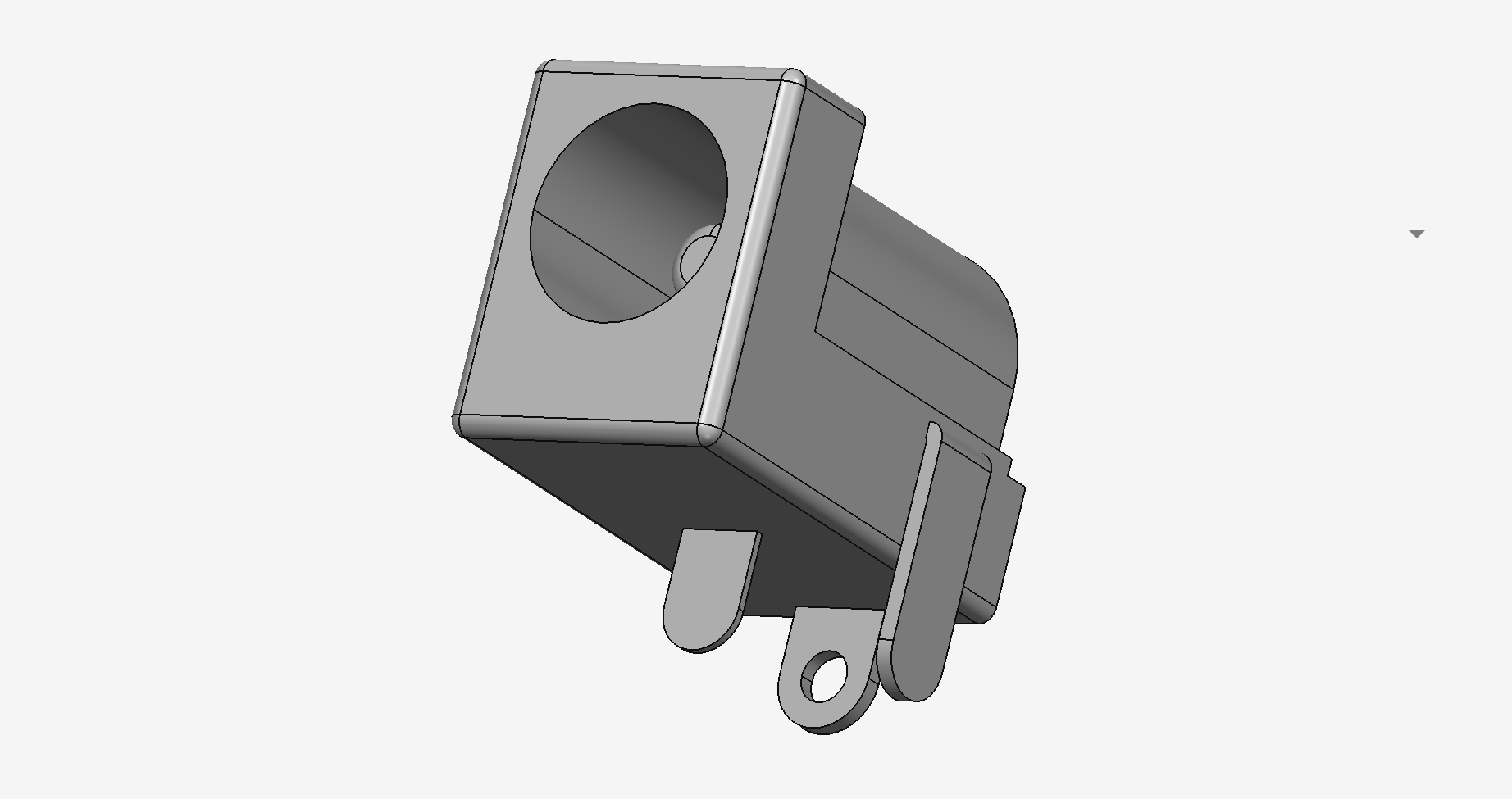

2DC-0005B101 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

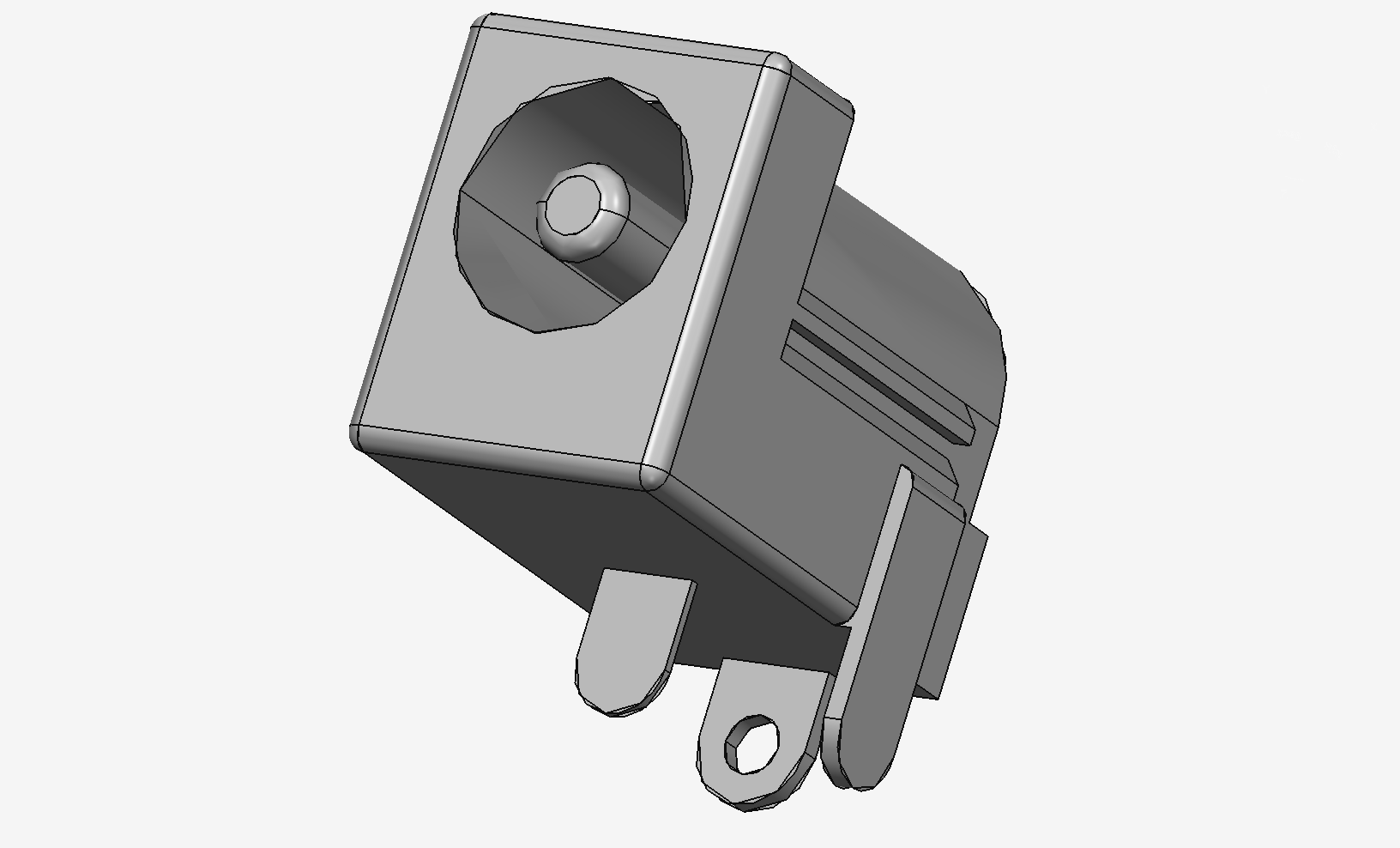

2DC-0005B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

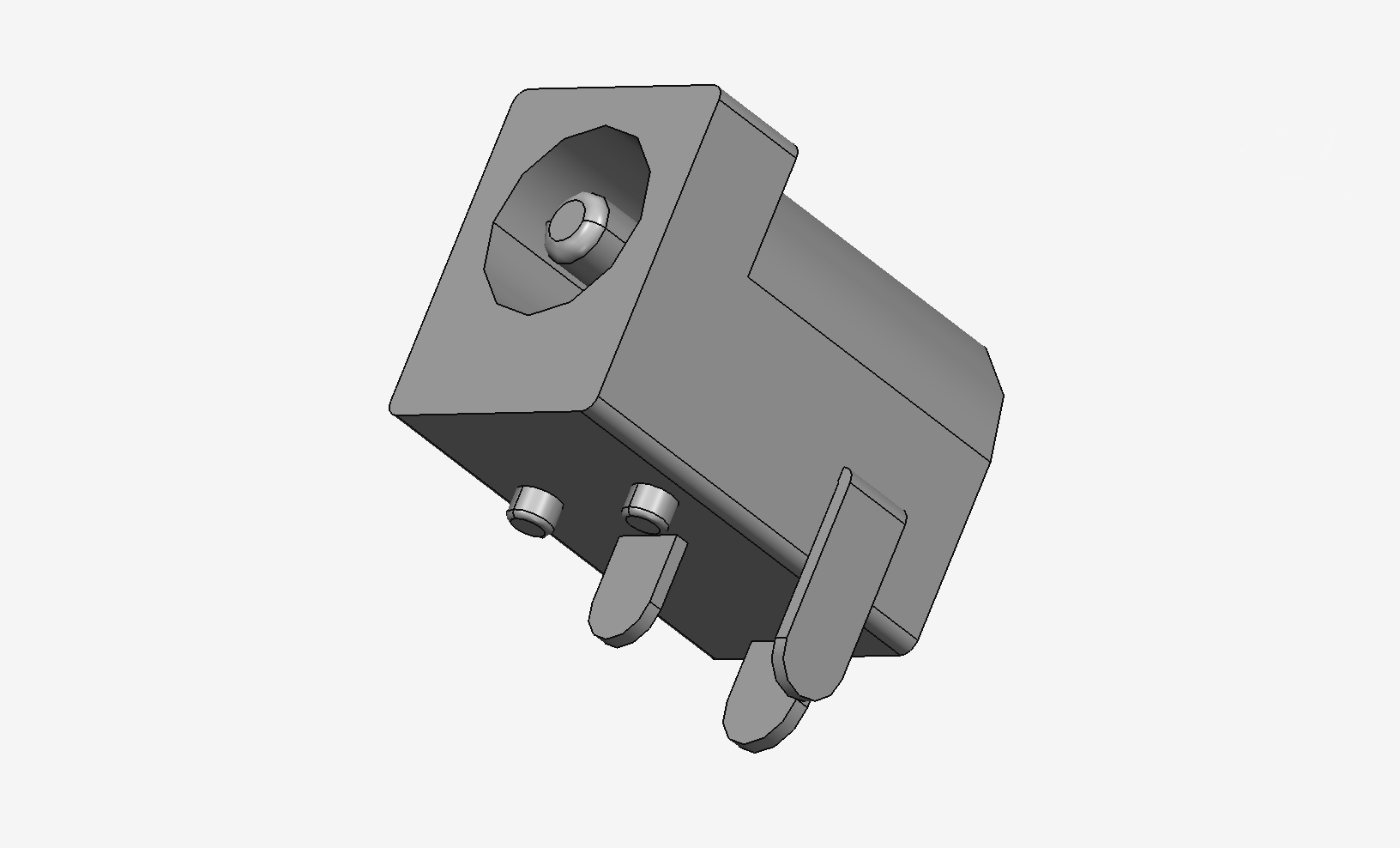

2DC-0005B201F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0005B202H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005B203F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0005B205F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0005B206F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

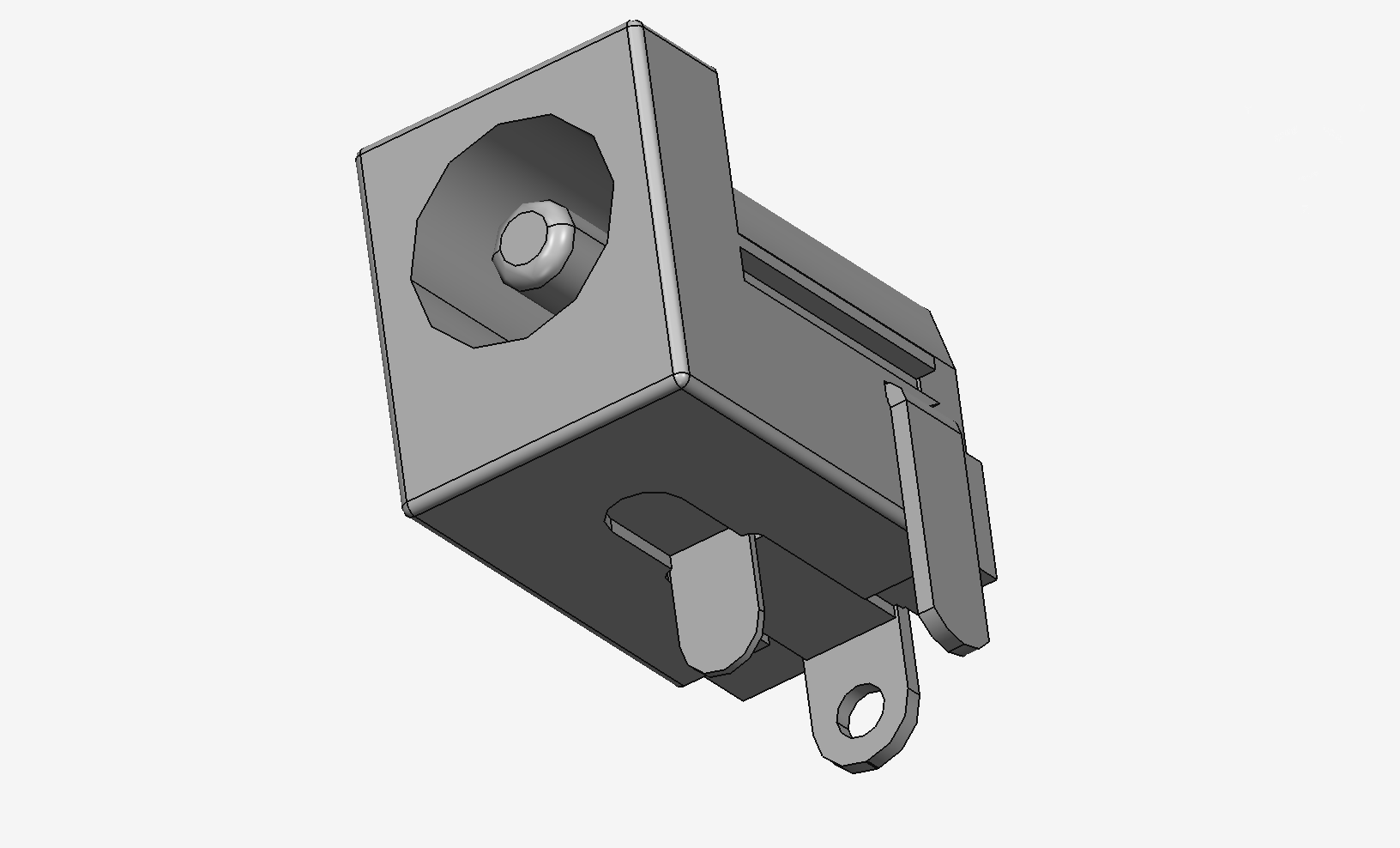

2DC-0005B501F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0005C100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0005C200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005D100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

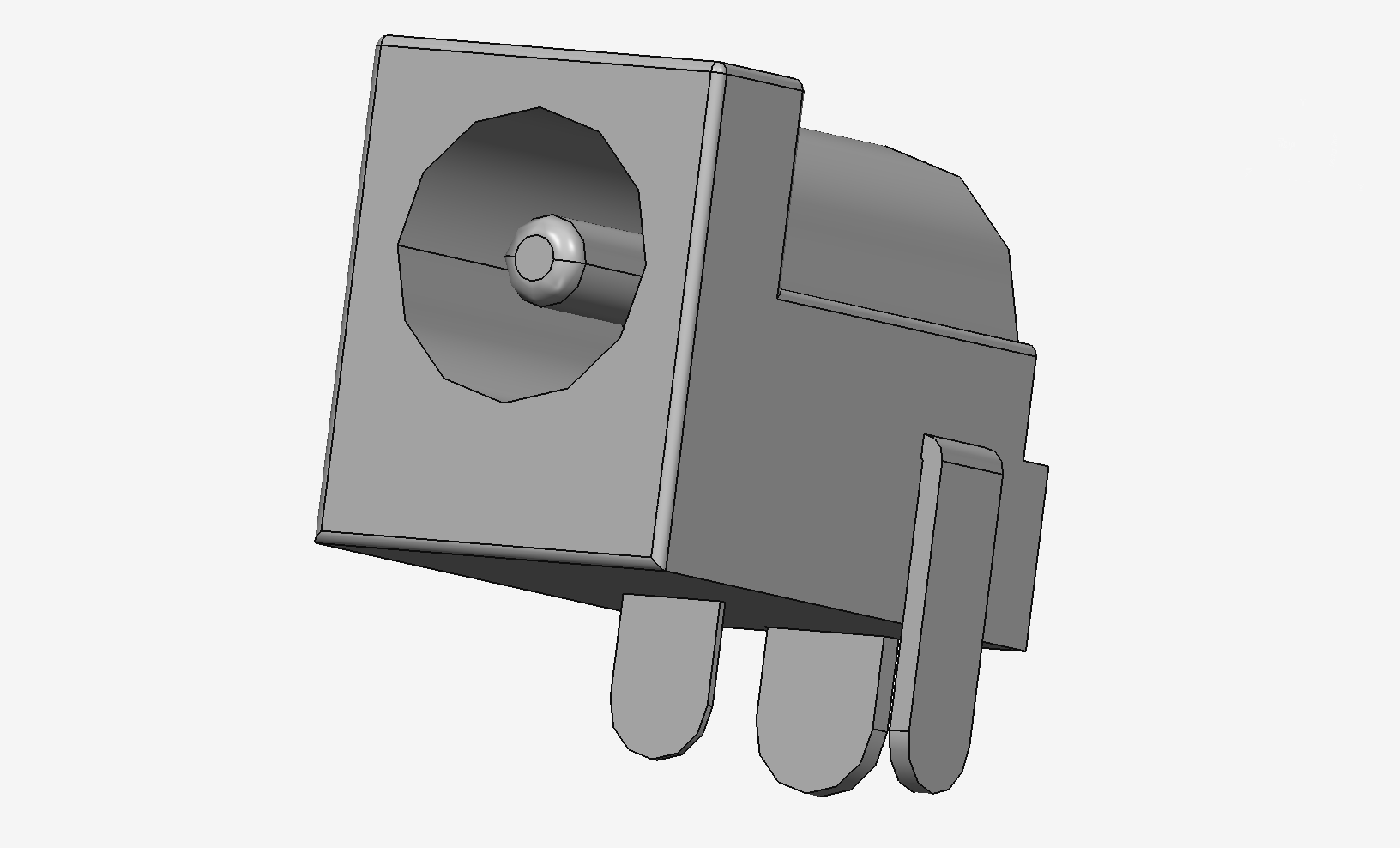

2DC-0005D101 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0005D200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005D211F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 10.70 Body Length: 14.50 PCB to Top Height: 10.70 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

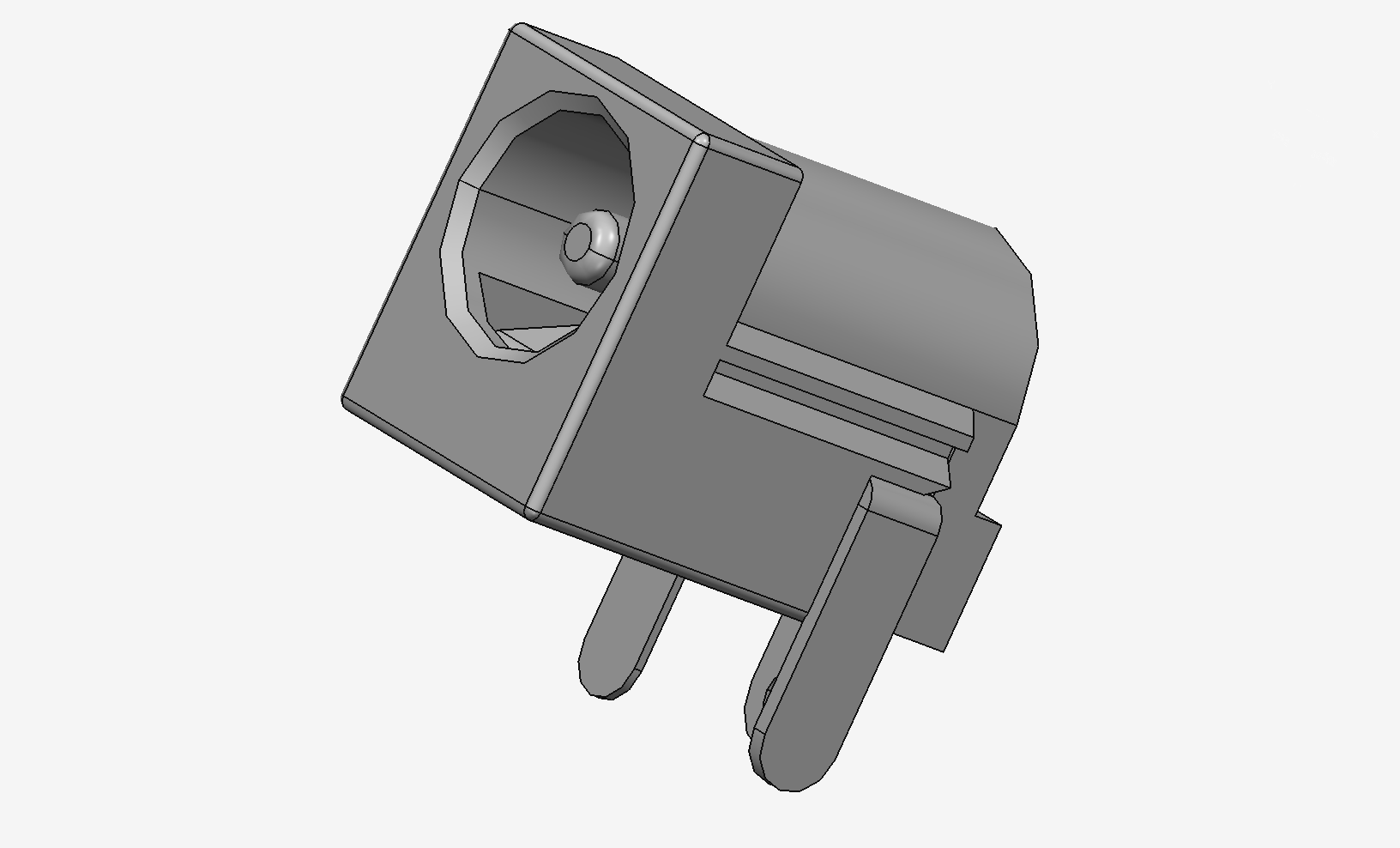

2DC-0005D221F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 9A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 10.70 Body Length: 14.50 PCB to Top Height: 10.70 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0005D500F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

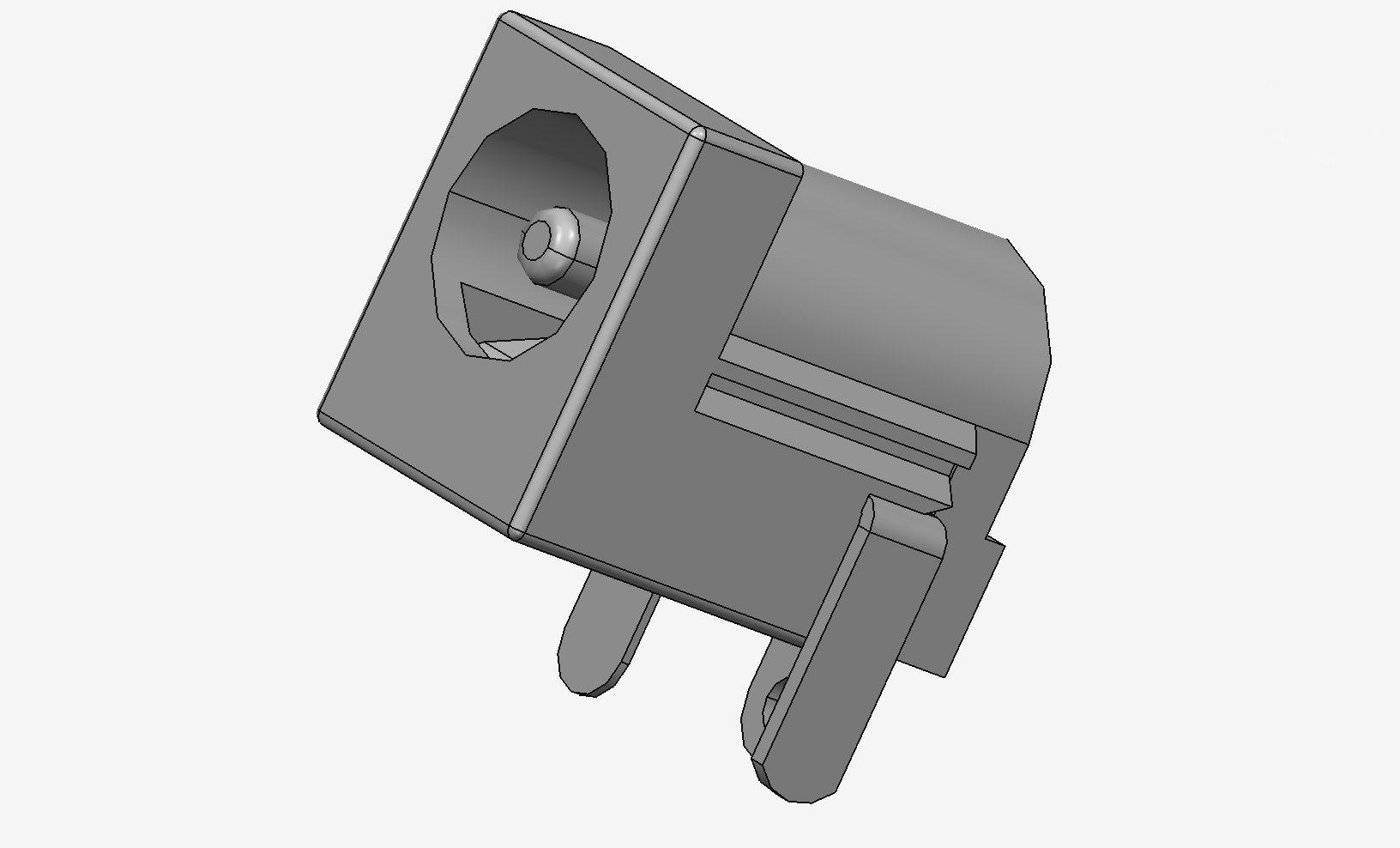

2DC-0005D800H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005F100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0005F200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005G200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005G300F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.50x4.75 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0005I100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

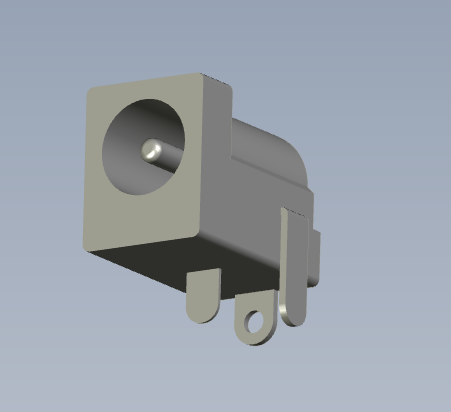

2DC-0005I200F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0005Q200F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 8A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

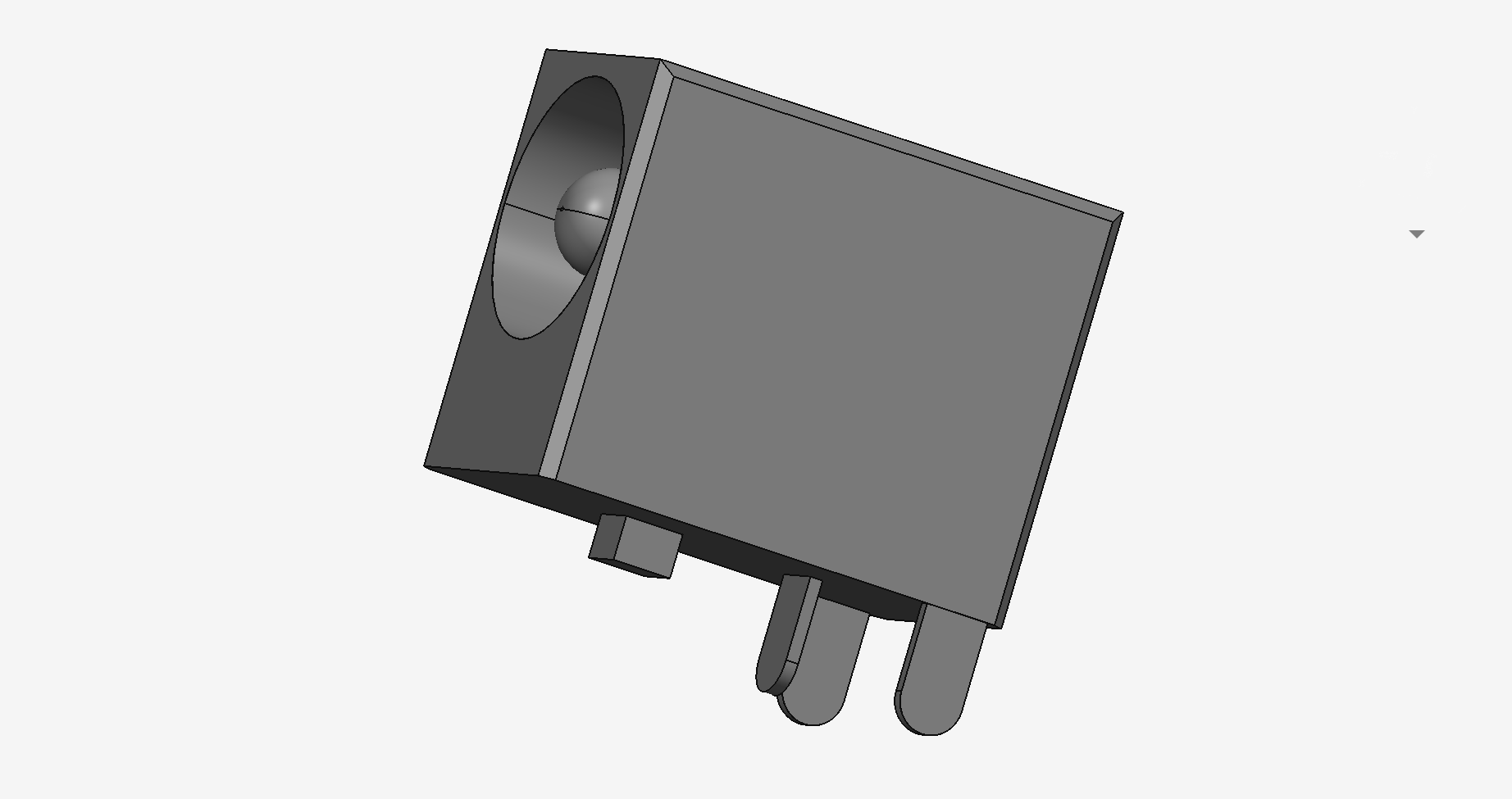

2DC-0006-B01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 11.50 PCB to Top Height: 9.50 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0006-B05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 11.50 PCB to Top Height: 9.50 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

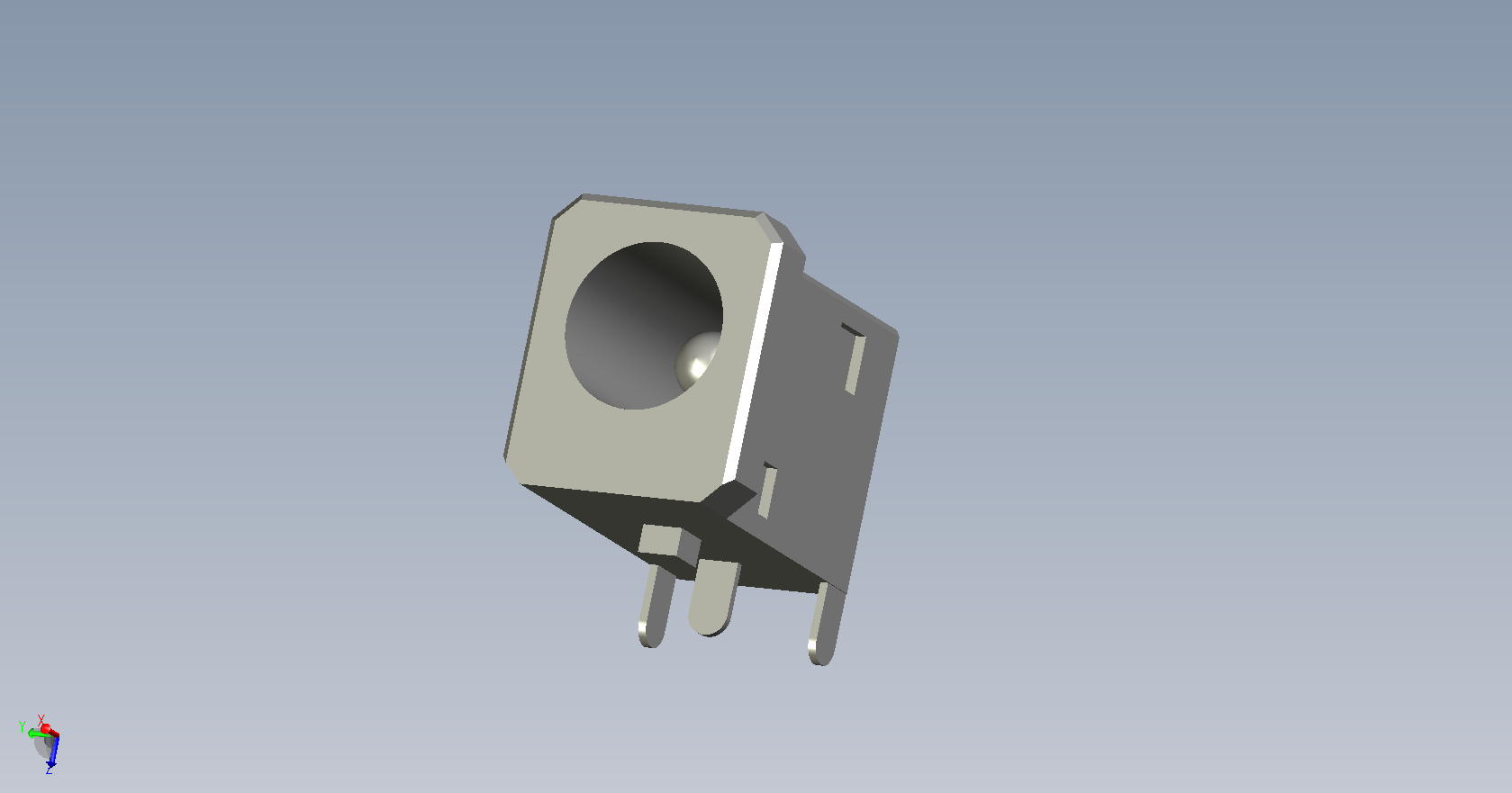

2DC-0006-B12 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 9.00 Body Height: 10.50 Body Length: 12.70 PCB to Top Height: 10.50 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0006-B18 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 11.50 PCB to Top Height: 9.50 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0006-B20F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 11.50 PCB to Top Height: 9.50 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

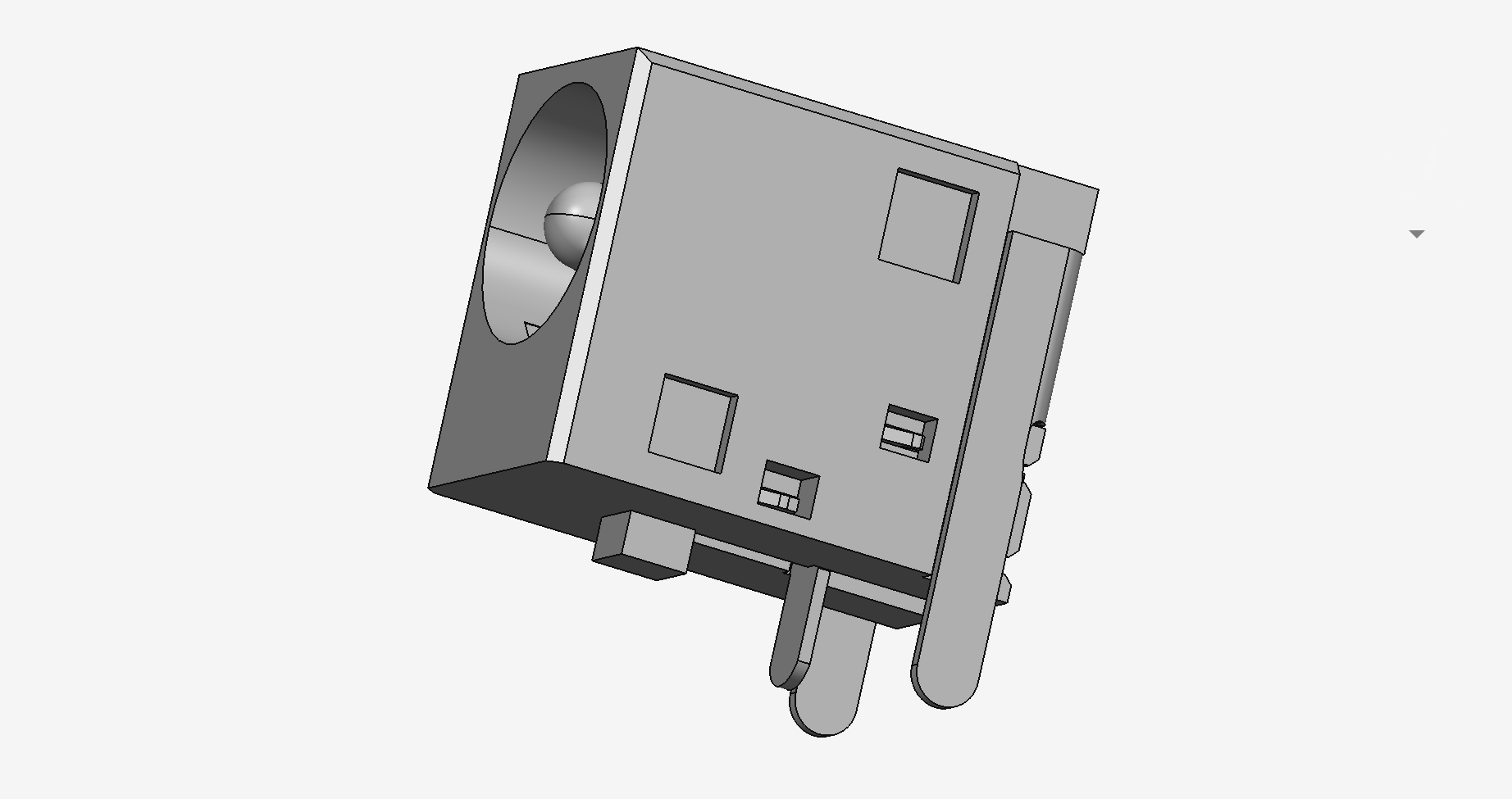

2DC-0006-D01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 11.50 PCB to Top Height: 9.50 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

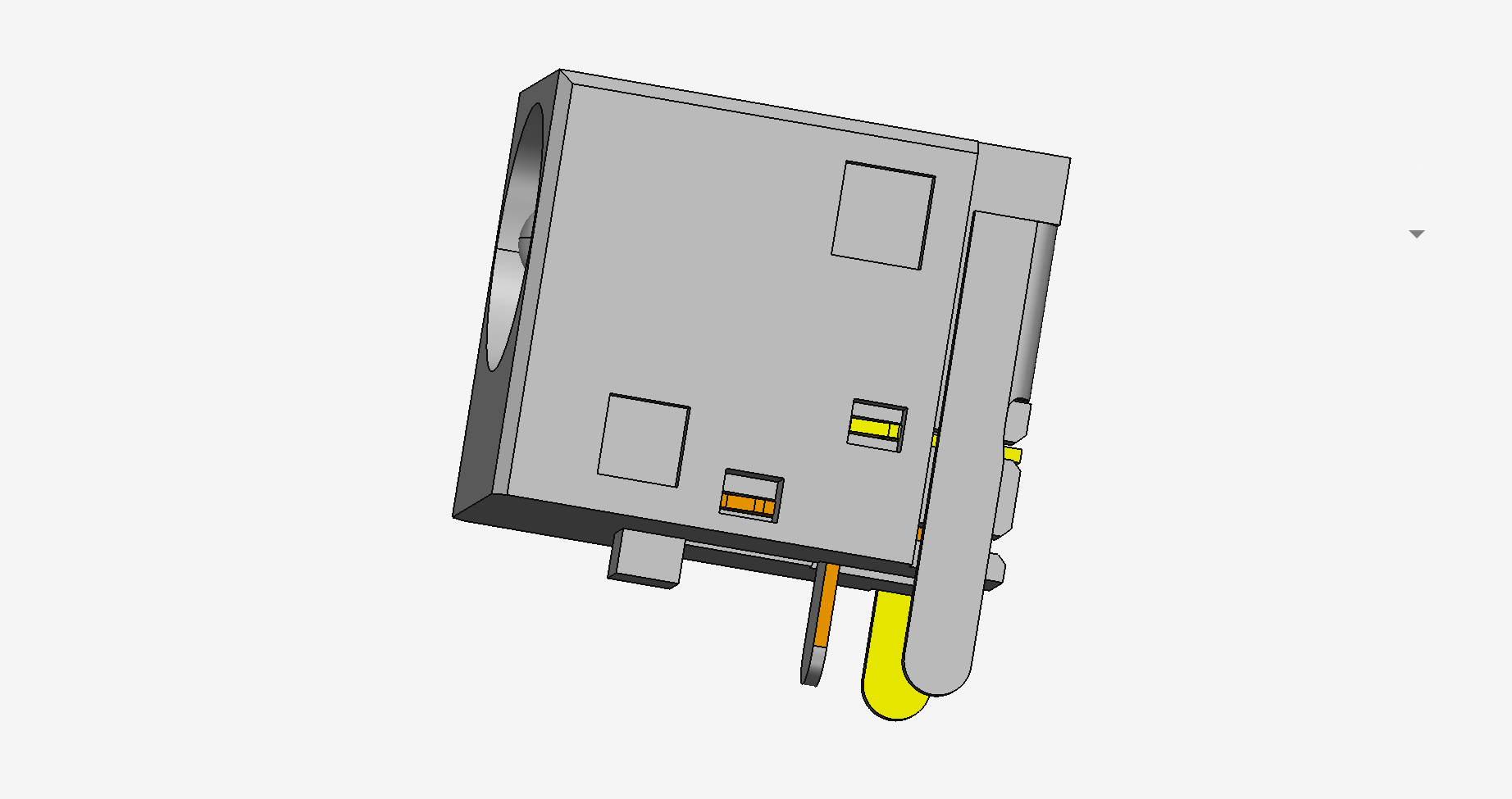

2DC-0006-D02H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 11.50 PCB to Top Height: 9.50 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

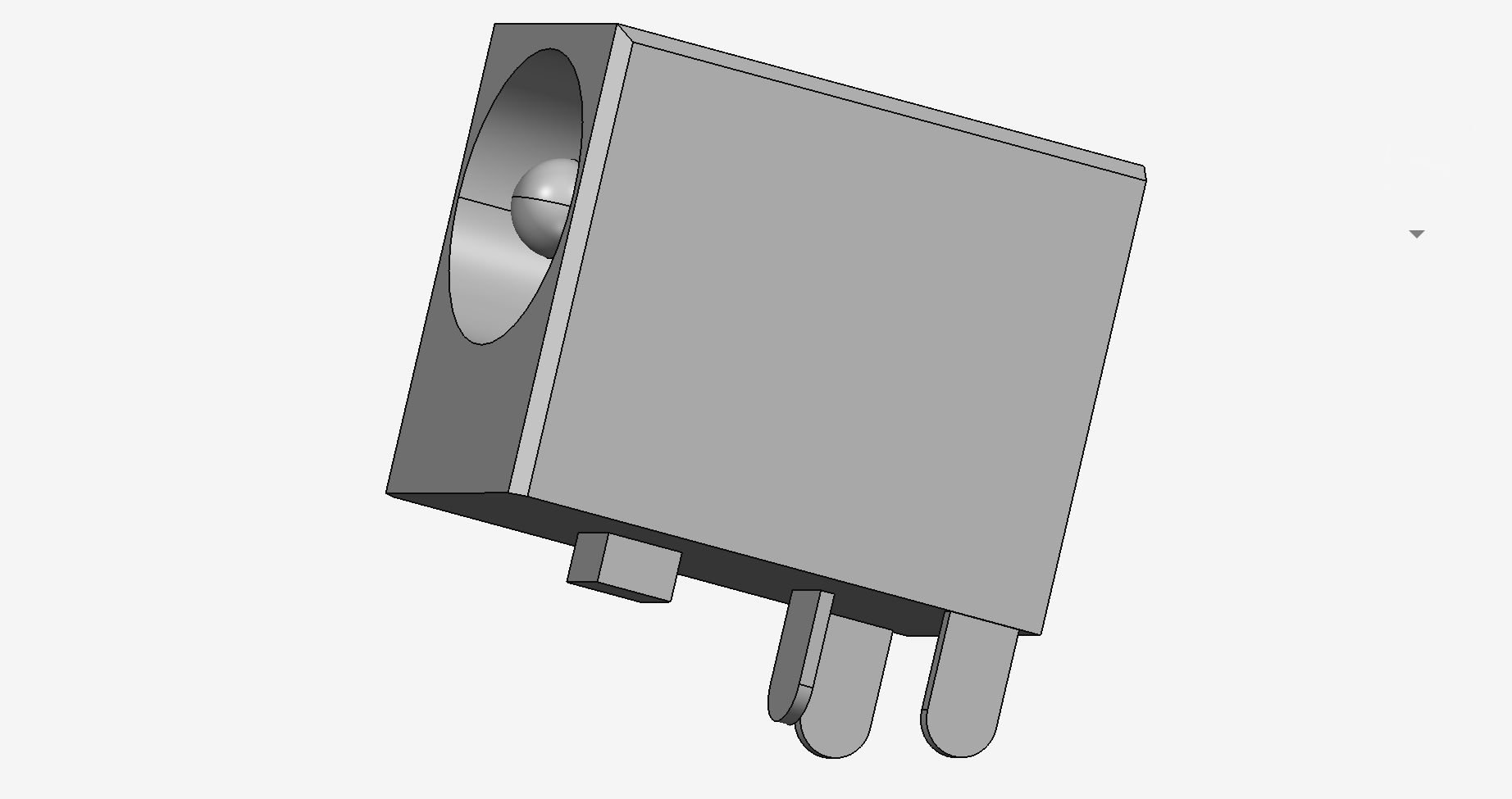

2DC-0006-D18 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 11.50 PCB to Top Height: 9.50 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

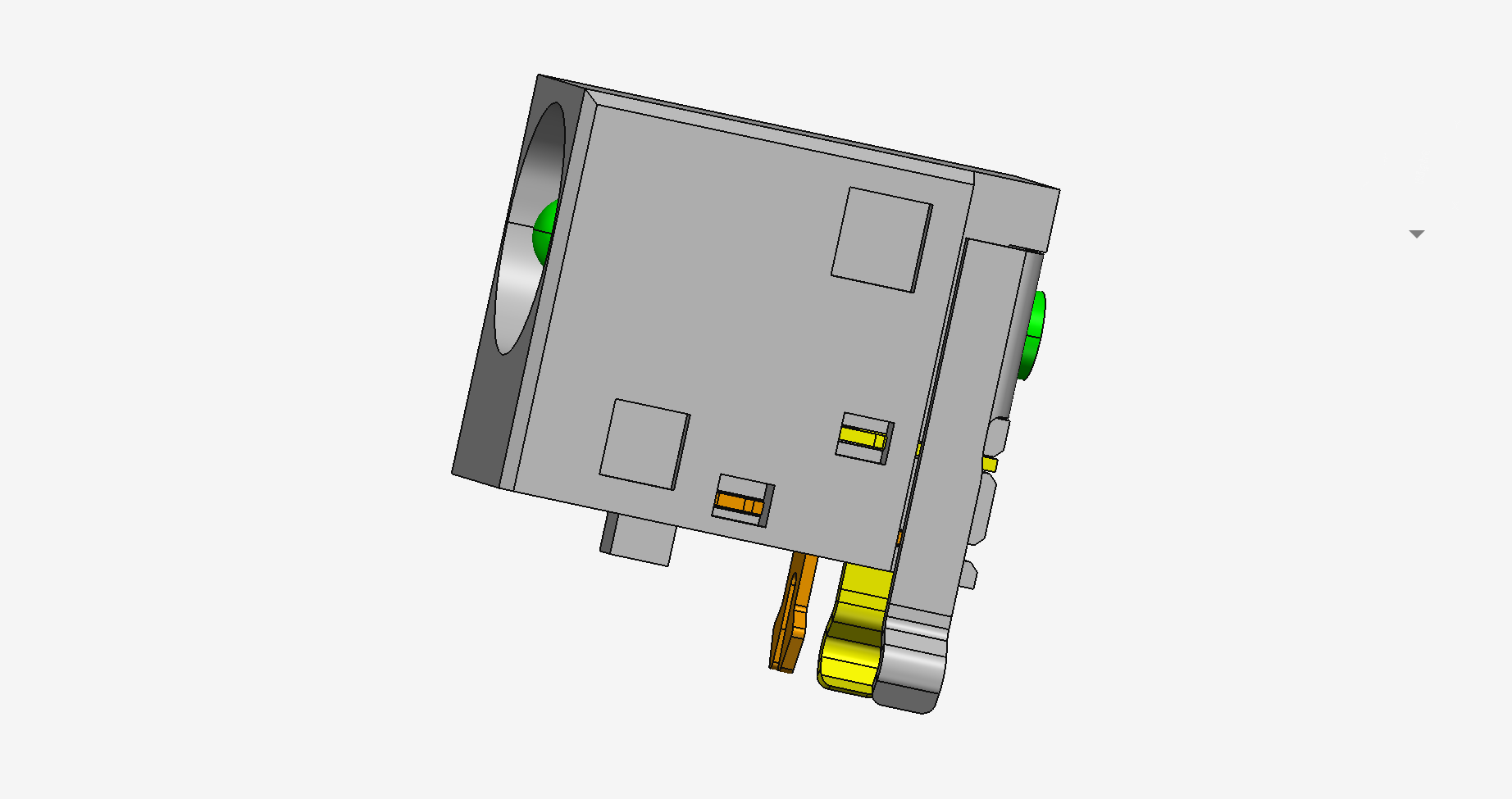

2DC-0006-D19F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 11.50 PCB to Top Height: 9.50 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0006-D20F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 11.50 Body Length: 11.30 PCB to Top Height: 10.50 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

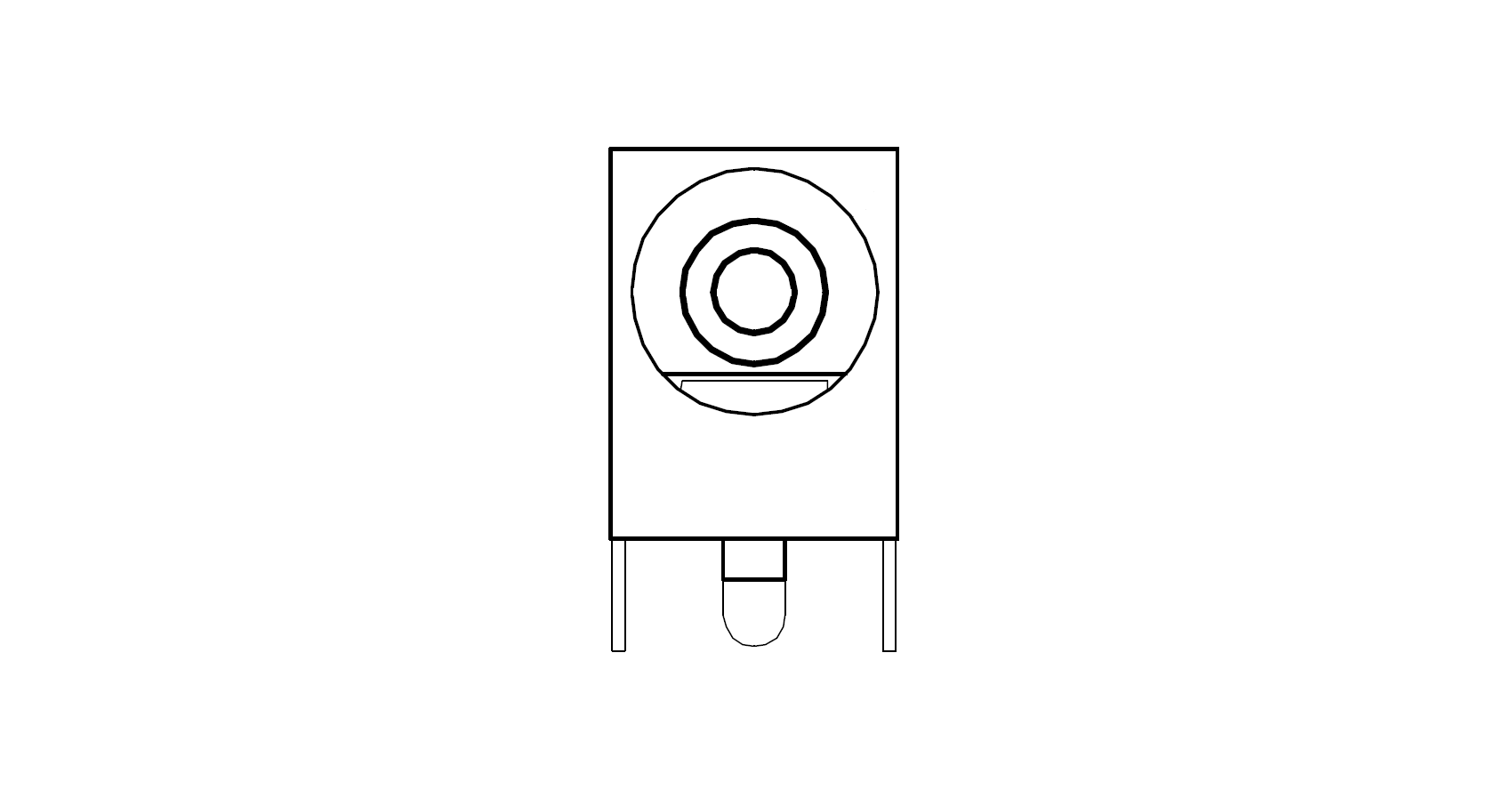

2DC-0006C100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 11.50 PCB to Top Height: 9.50 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

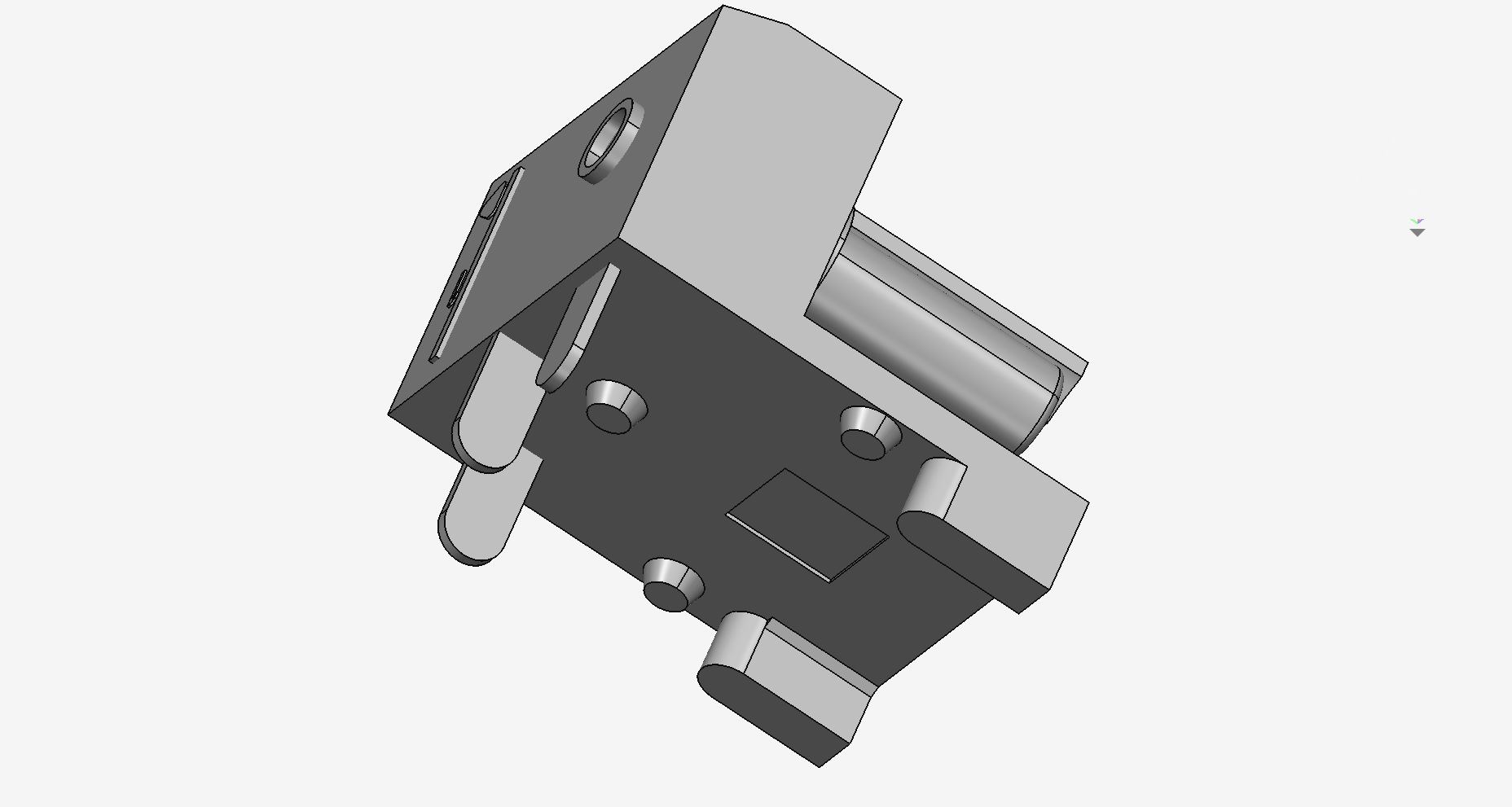

2DC-0009B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 12V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.48 Mating Plug: 2.50x5.50 Center Height: 5.50 Body Width: 10.50 Body Height: 7.50 Body Length: 12.00 PCB to Top Height: 7.50 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0009E200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 12V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.98 Mating Plug: 2.10x5.50 Center Height: 5.50 Body Width: 10.50 Body Height: 7.50 Body Length: 12.00 PCB to Top Height: 7.50 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

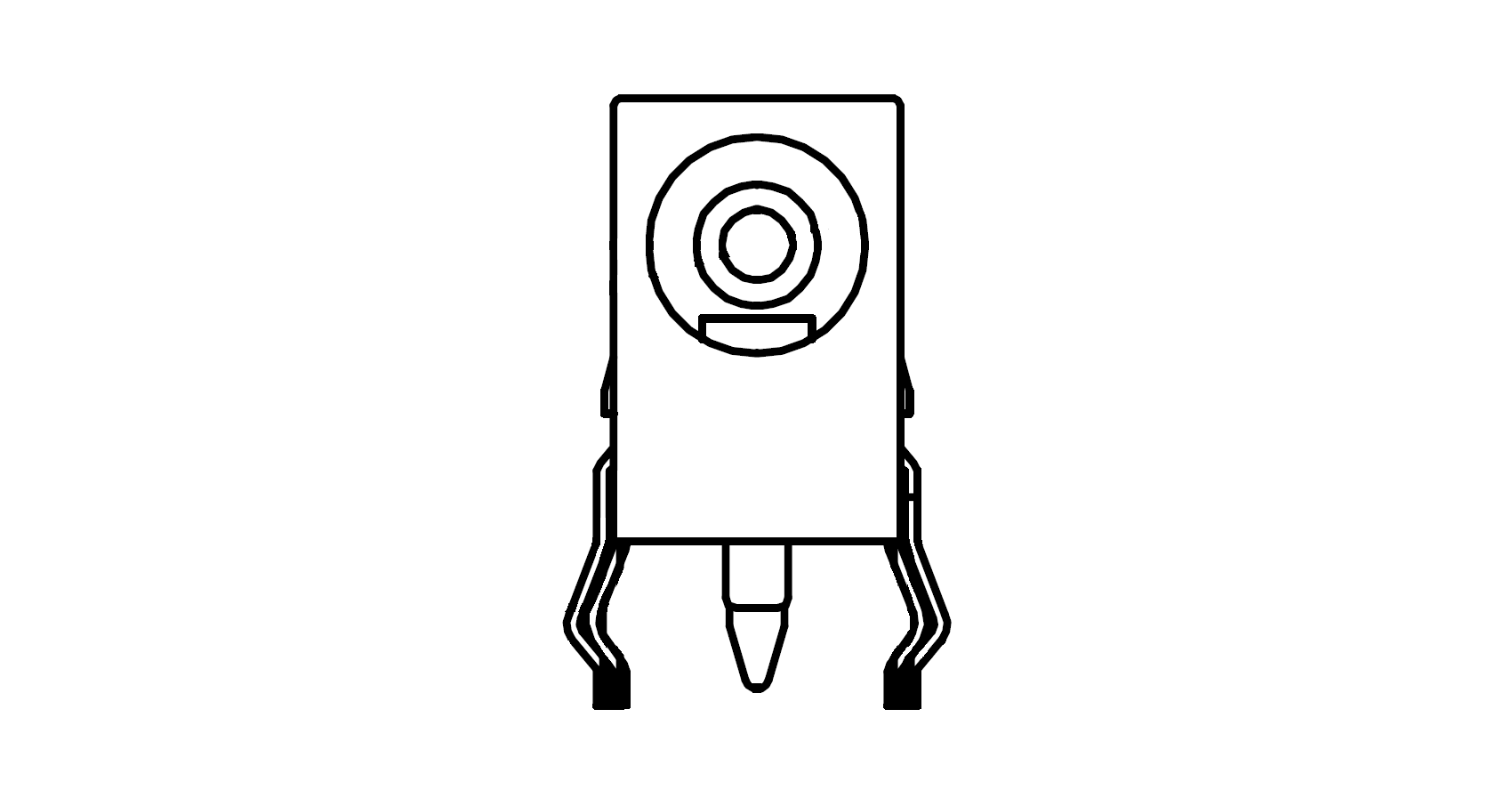

2DC-0010I700 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 19V Current Rating: 2.6A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.60 Mating Plug: 1.70x4.75 Center Height: 7.00 Body Width: 6.80 Body Height: 10.40 Body Length: 13.00 PCB to Top Height: 10.40 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

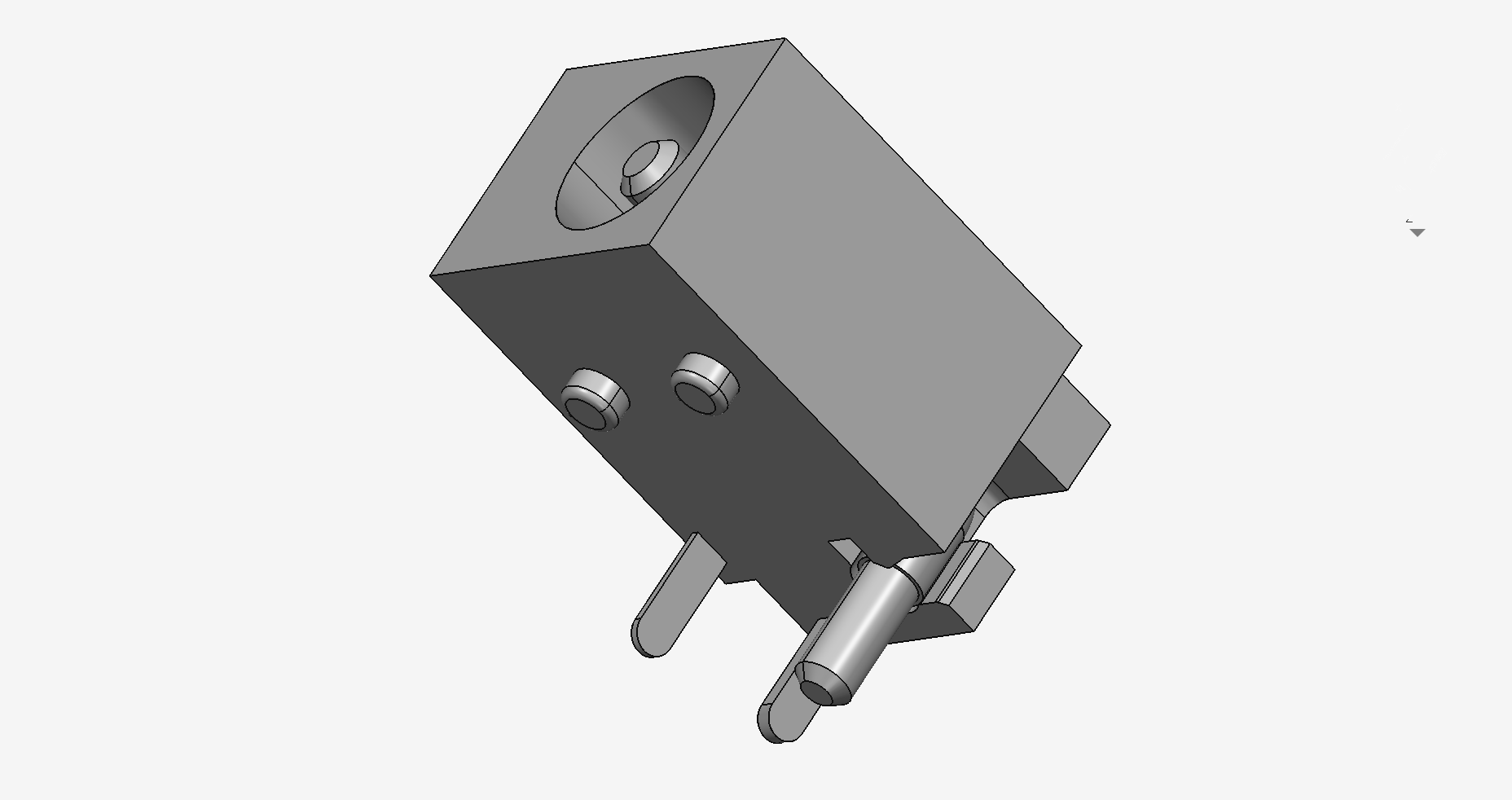

2DC-0018-001 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

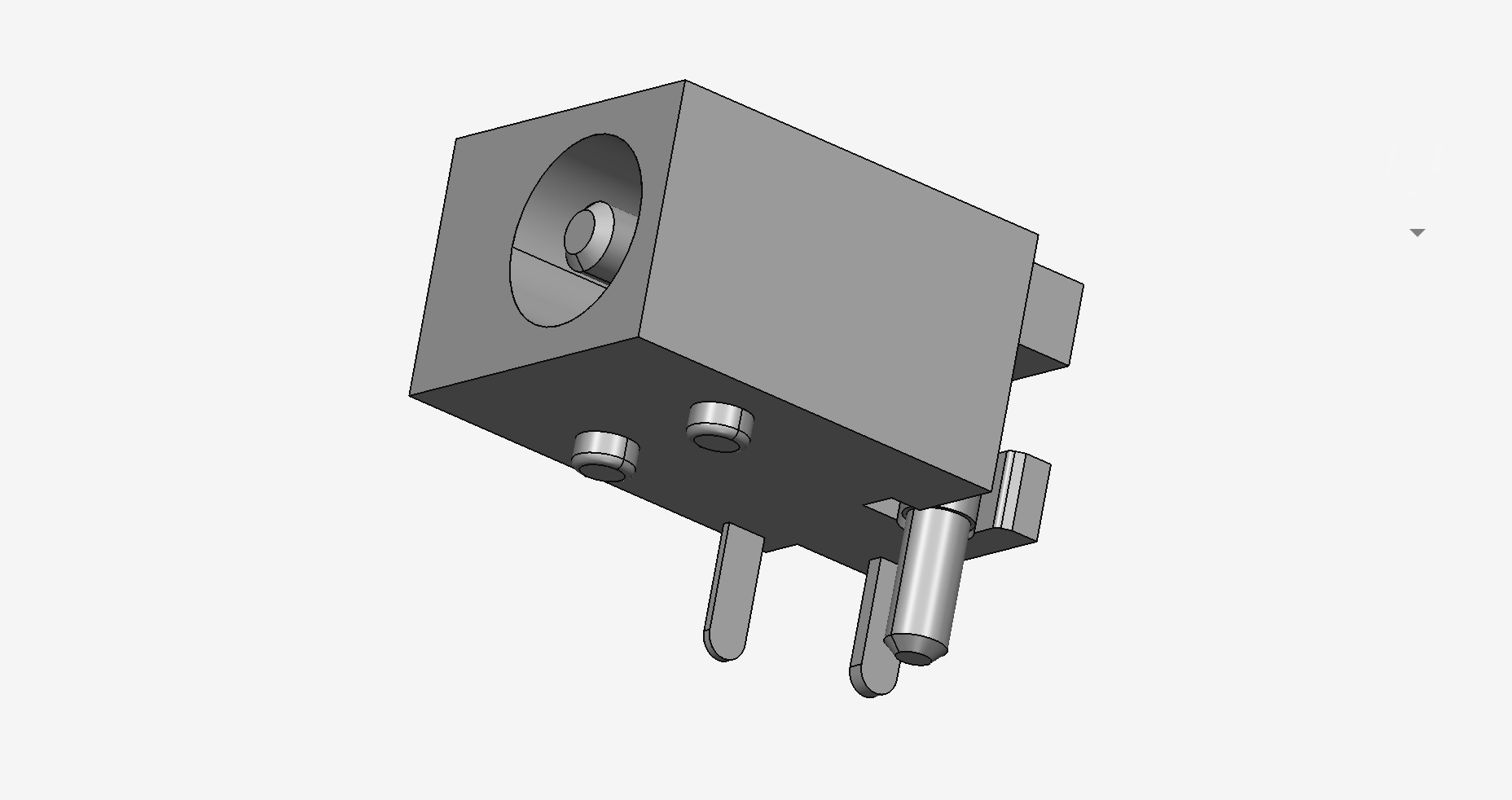

2DC-0018-002 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0018-005 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0018-006 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0018-007 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0018-008 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

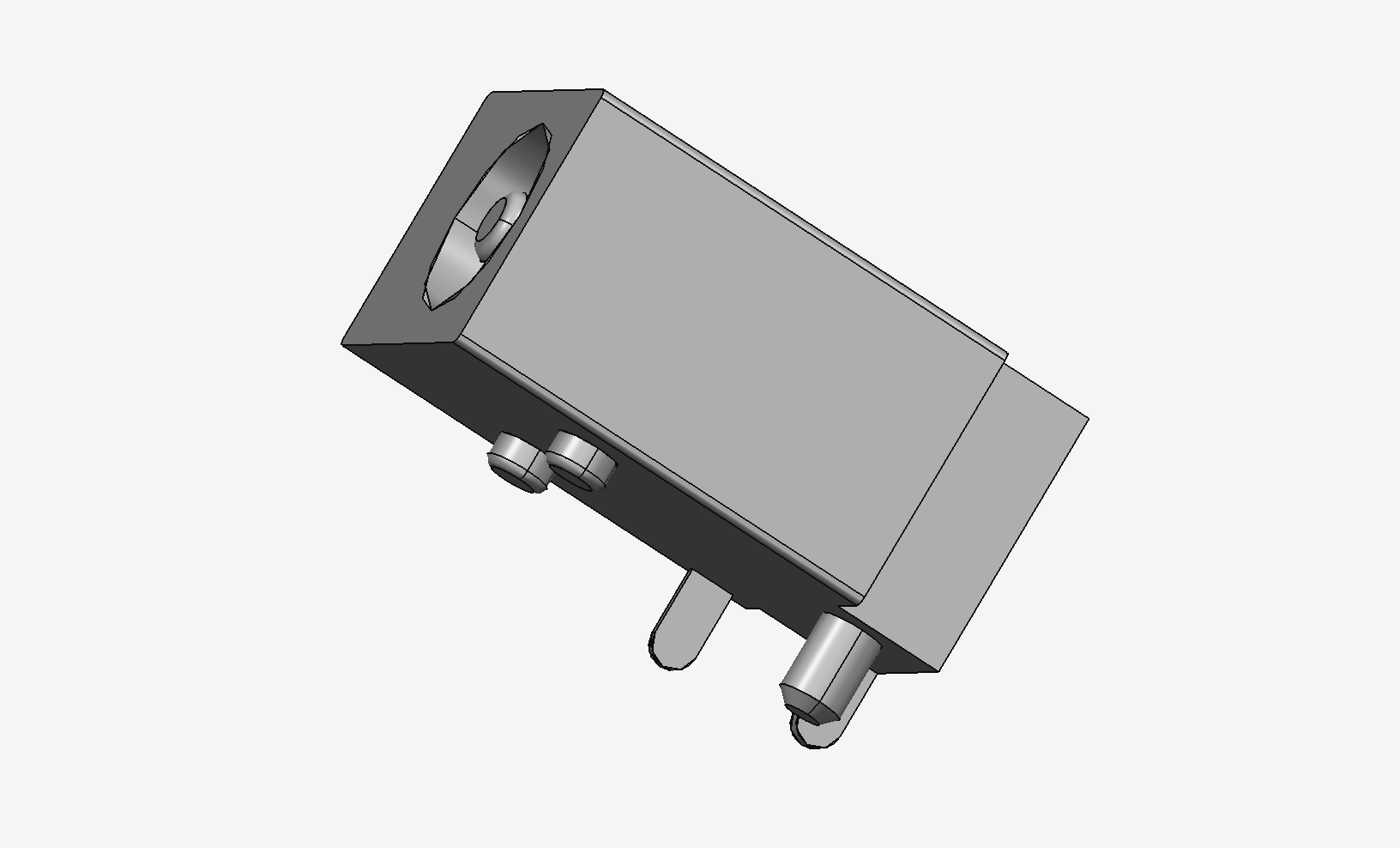

2DC-0018-009 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

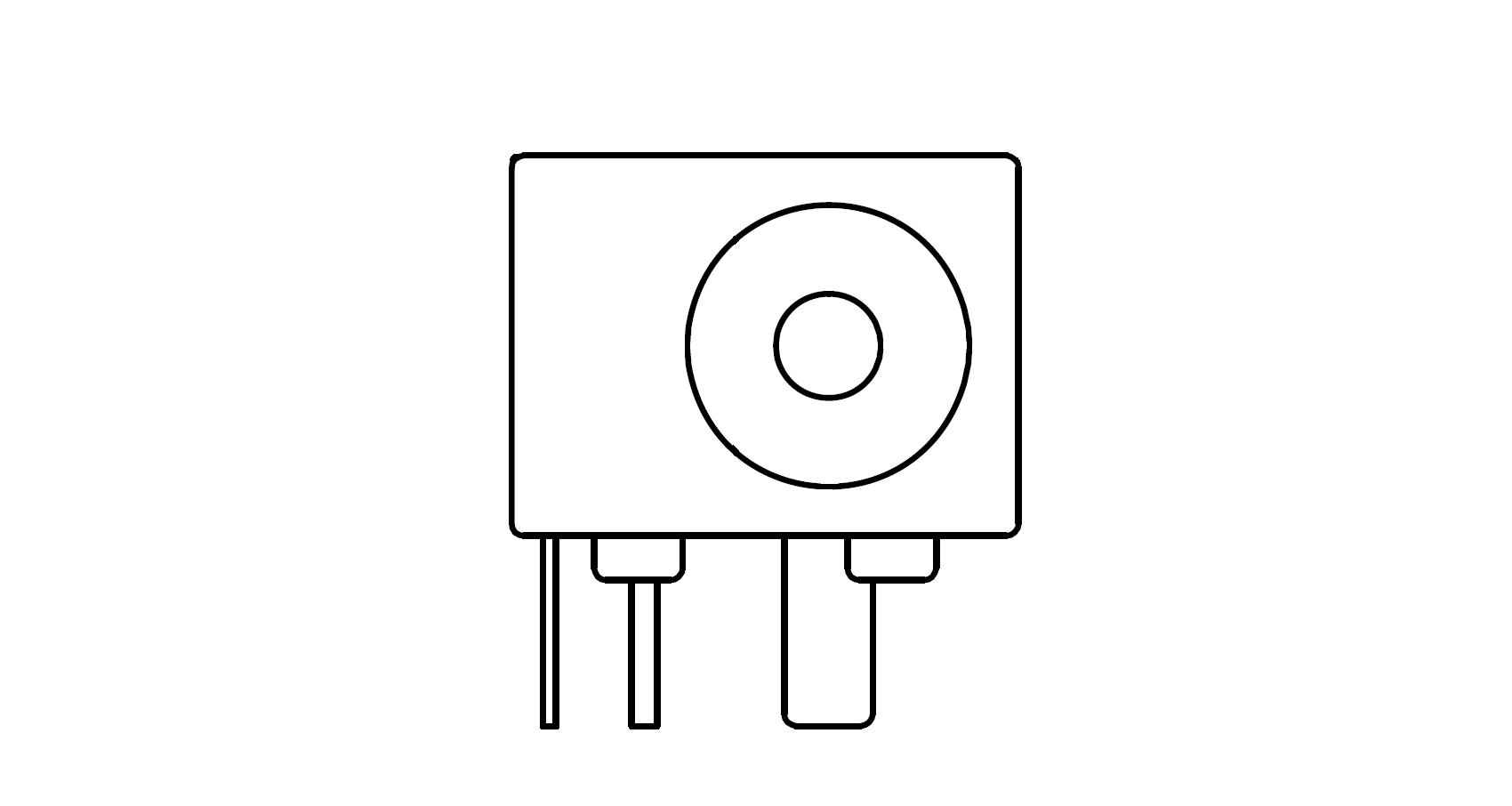

2DC-0018-011 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

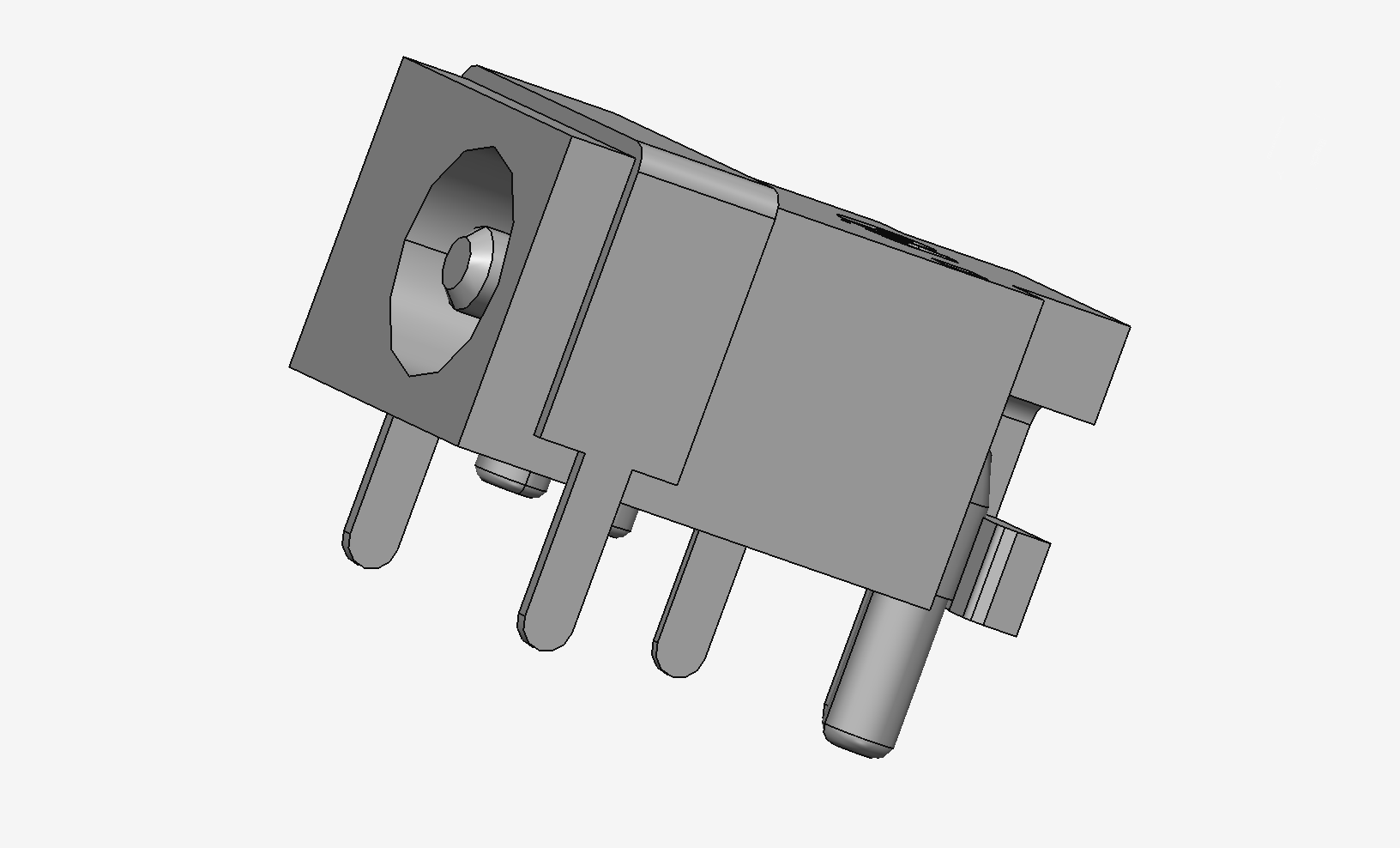

2DC-0018-012 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.60 Body Height: 6.30 Body Length: 12.50 PCB to Top Height: 6.30 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

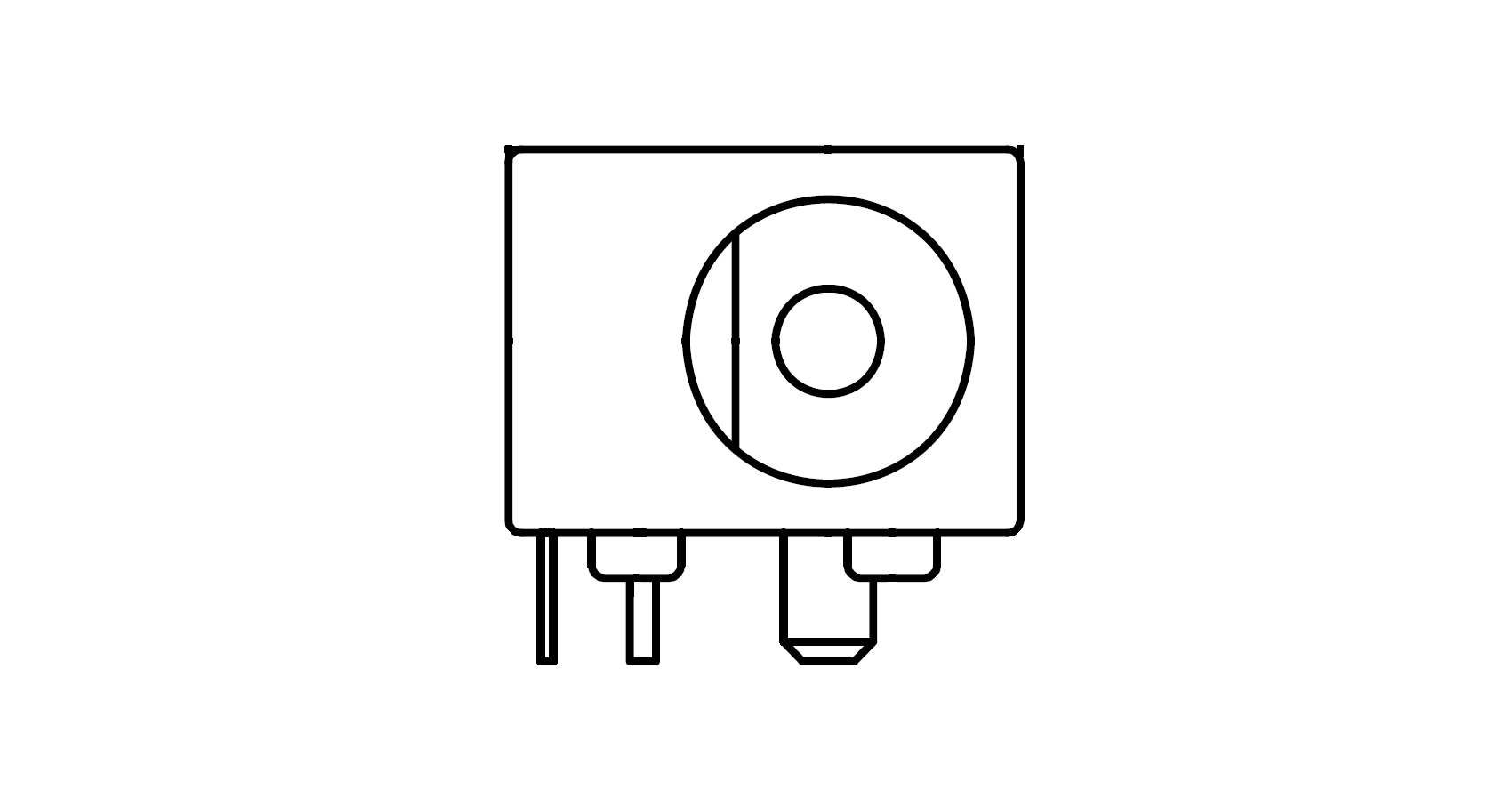

2DC-0018-015F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

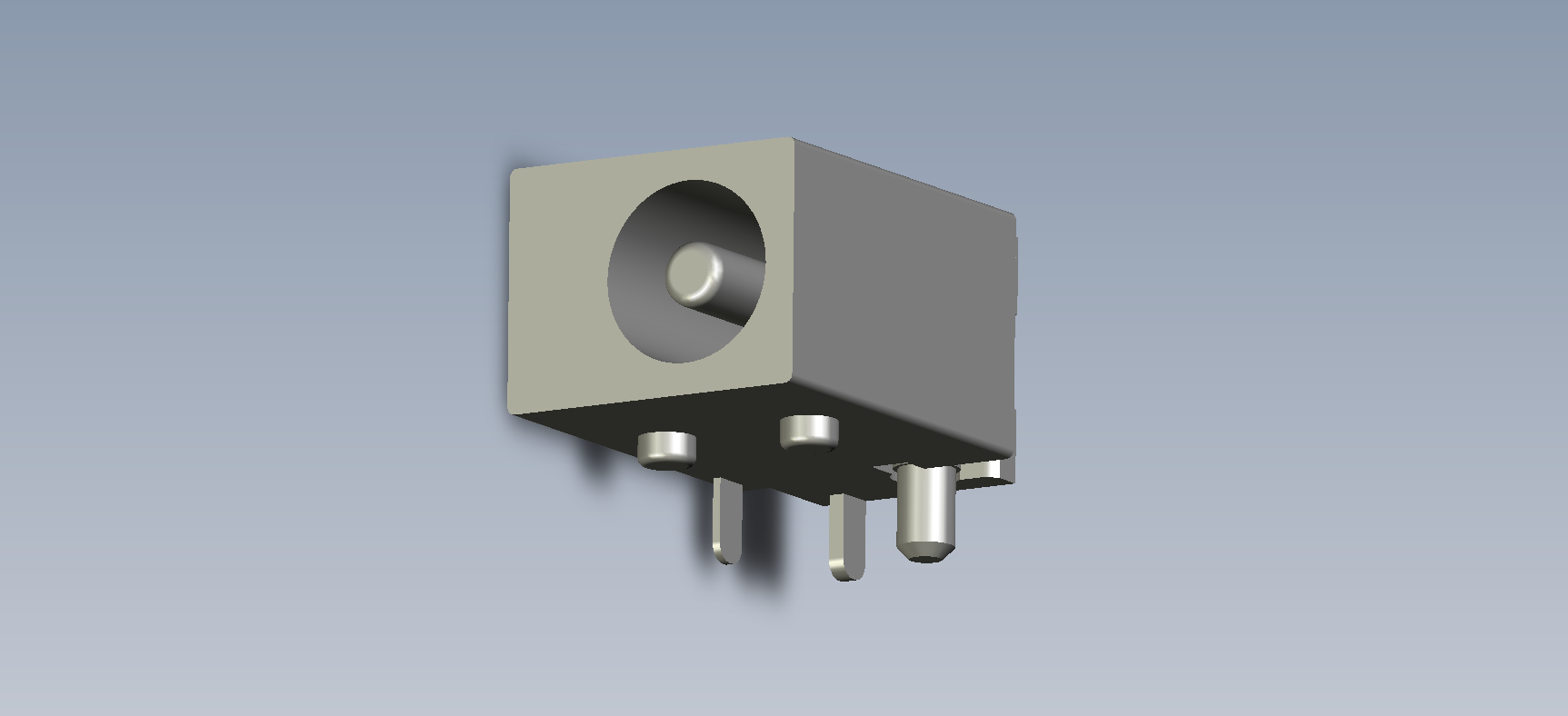

2DC-0018-018F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

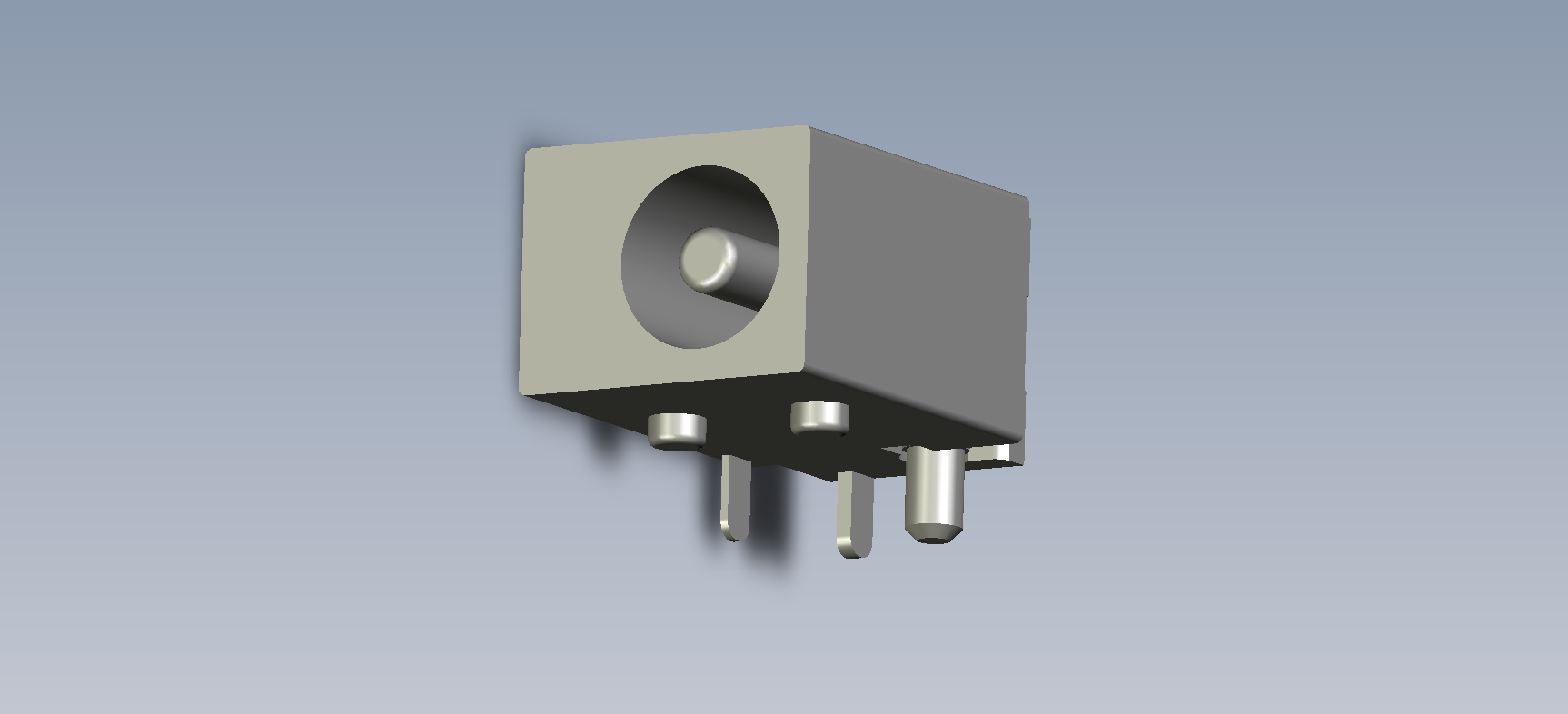

2DC-0018-019F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

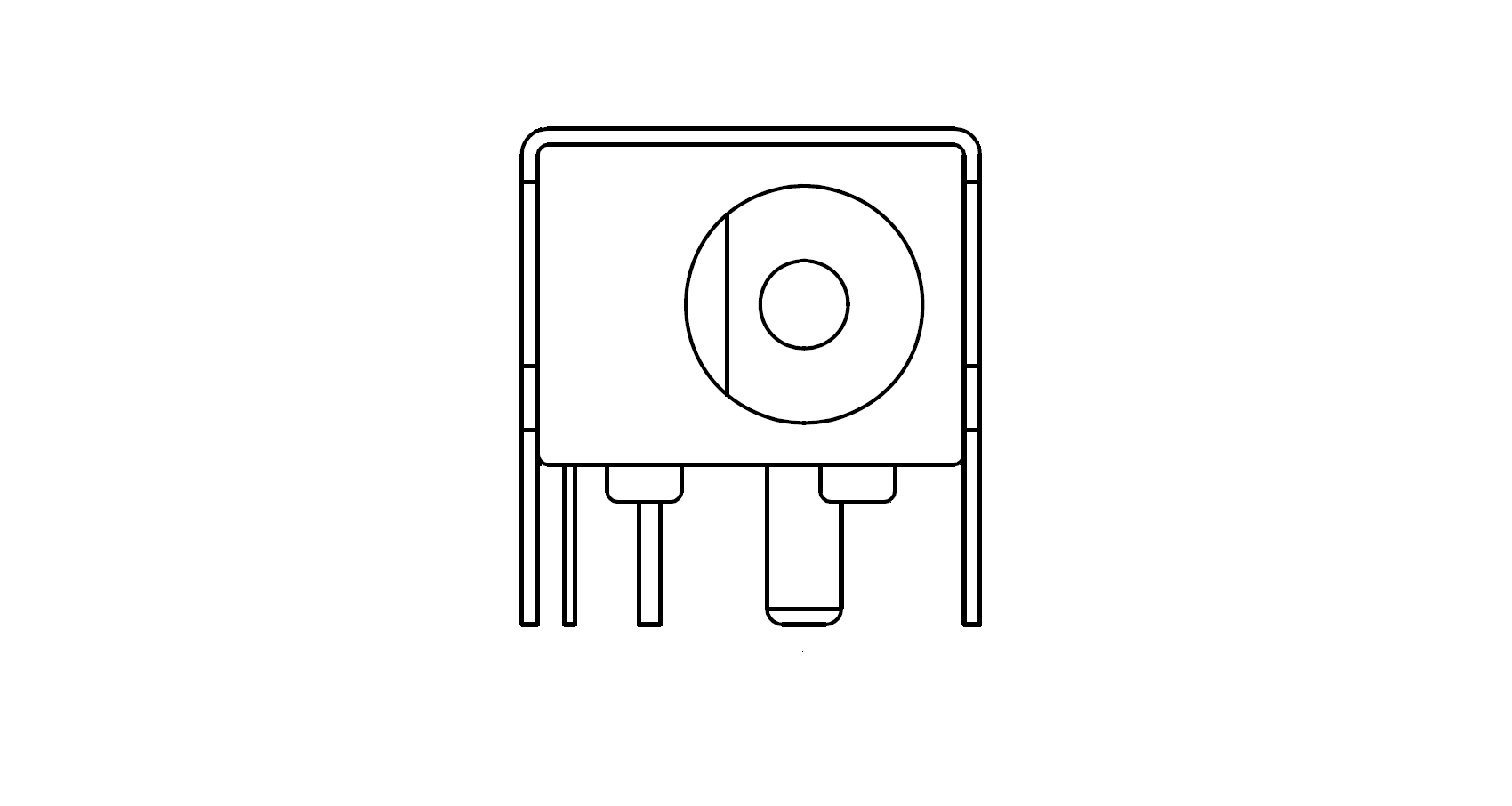

2DC-0018-020F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.60 Body Height: 6.30 Body Length: 12.50 PCB to Top Height: 6.30 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

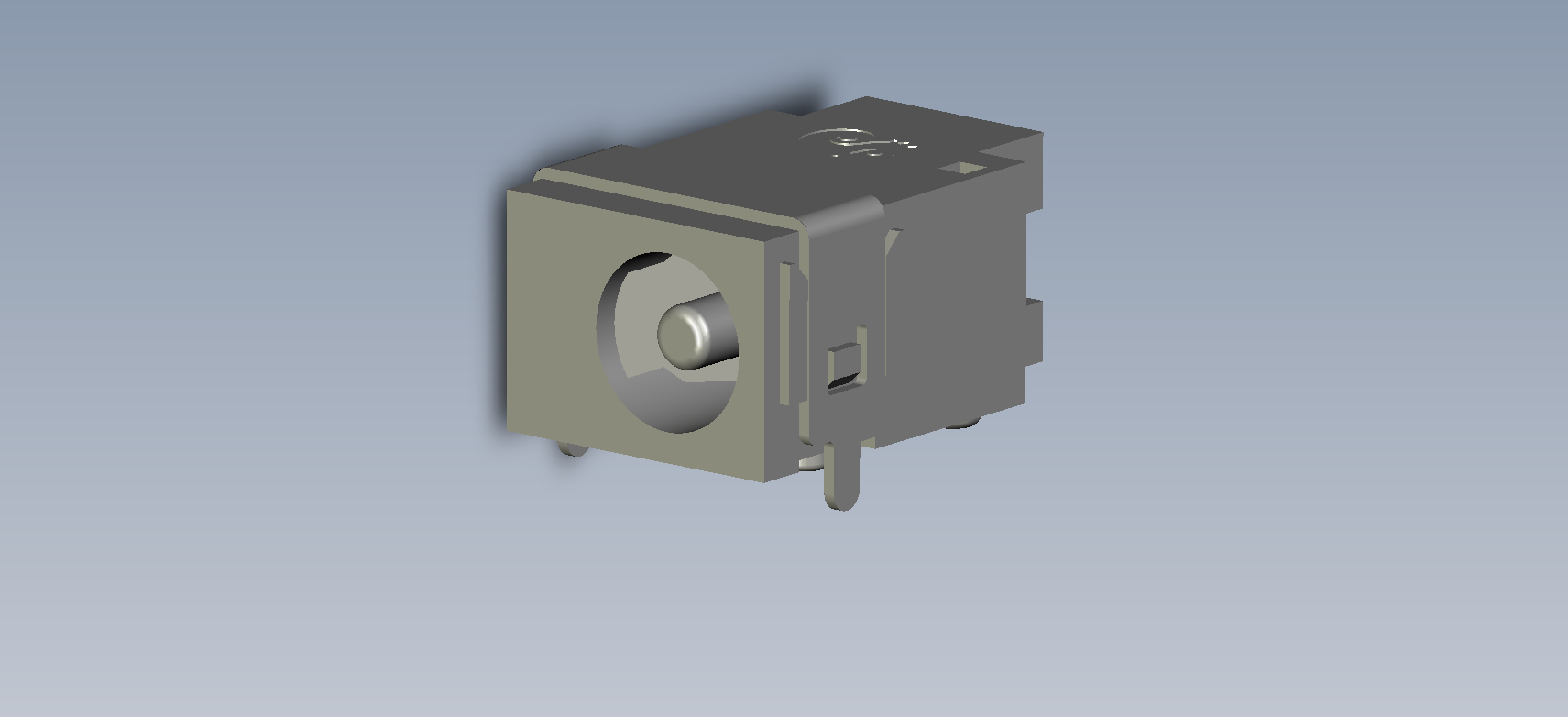

2DC-0018-021F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.30 Body Height: 6.30 Body Length: 12.50 PCB to Top Height: 6.30 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0018-A02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

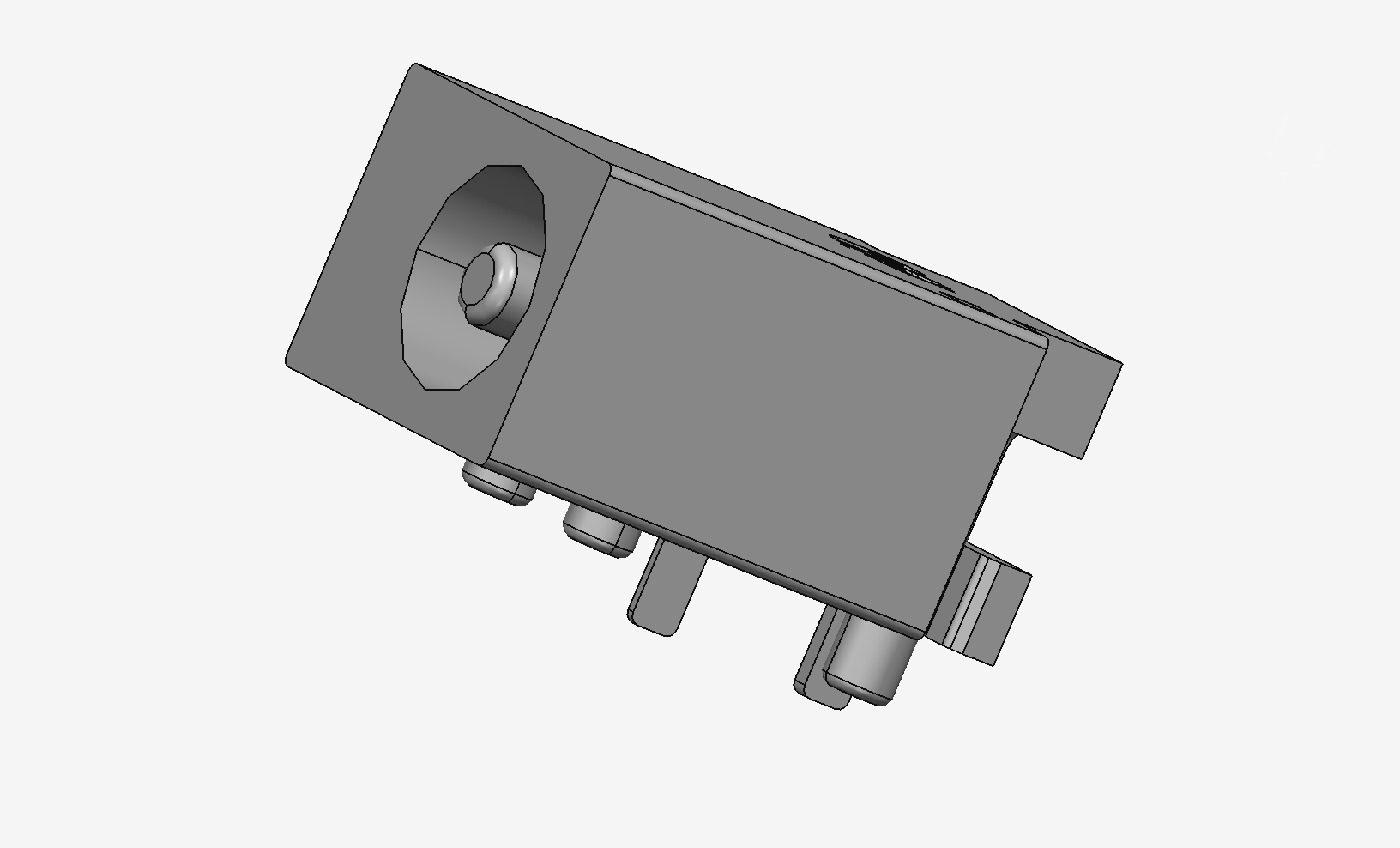

2DC-0018-A07H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0018-A08H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

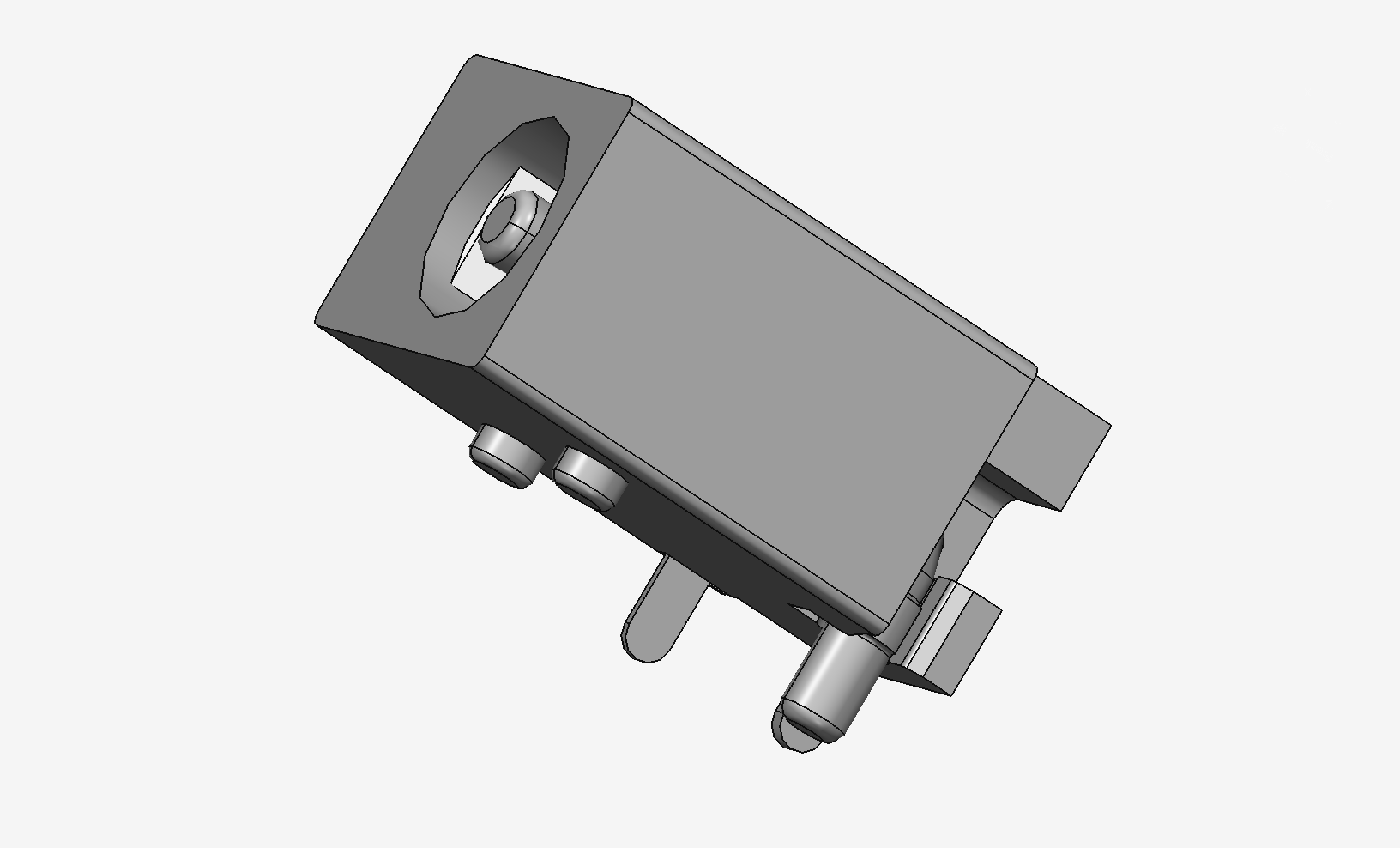

2DC-0018-A09F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0018-A10F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.00 Body Width: 8.00 Body Height: 6.00 Body Length: 12.50 PCB to Top Height: 6.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0026-C01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 3.50 Body Width: 9.50 Body Height: 7.00 Body Length: 11.50 PCB to Top Height: 7.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

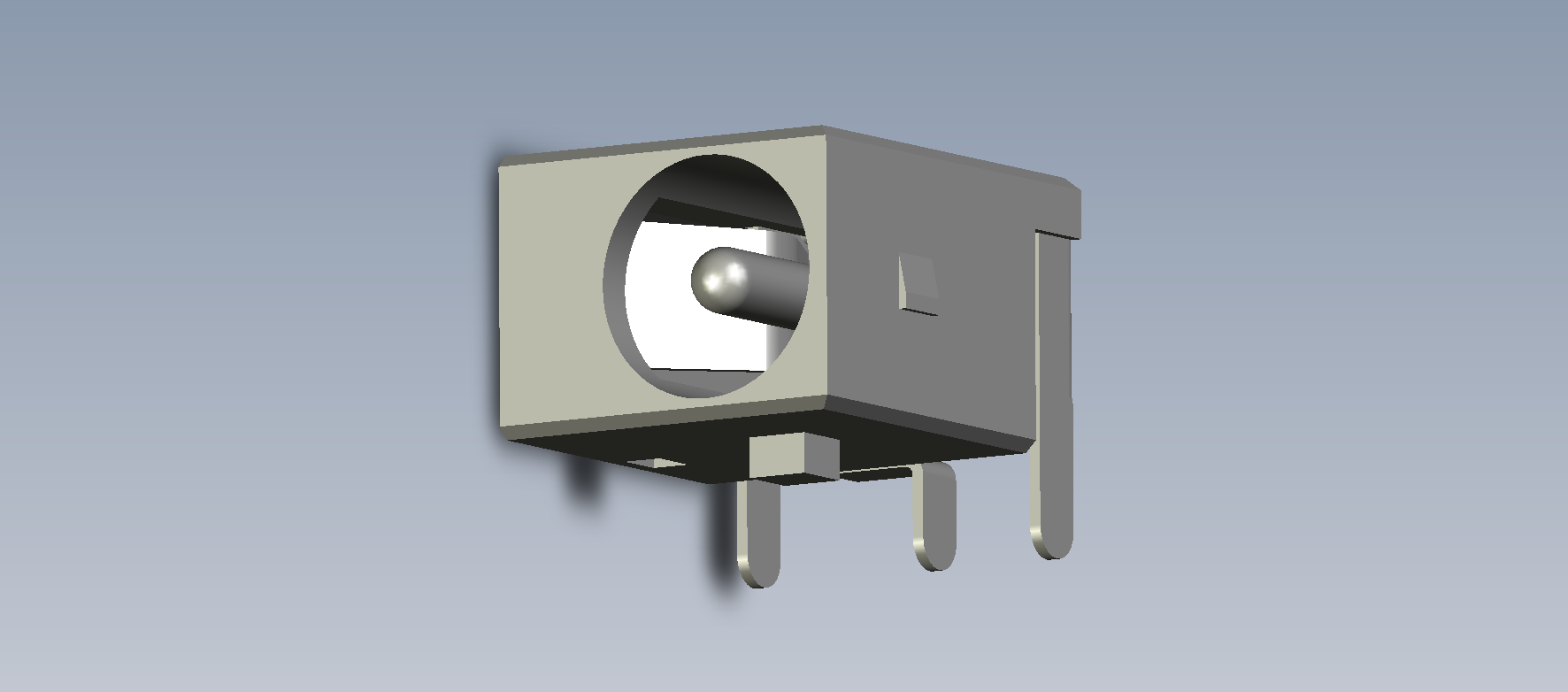

2DC-0026-D01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 9.50 Body Height: 7.00 Body Length: 11.50 PCB to Top Height: 7.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0026-L01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.95 Mating Plug: 3.10x5.50 Center Height: 3.50 Body Width: 9.50 Body Height: 7.00 Body Length: 11.50 PCB to Top Height: 7.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

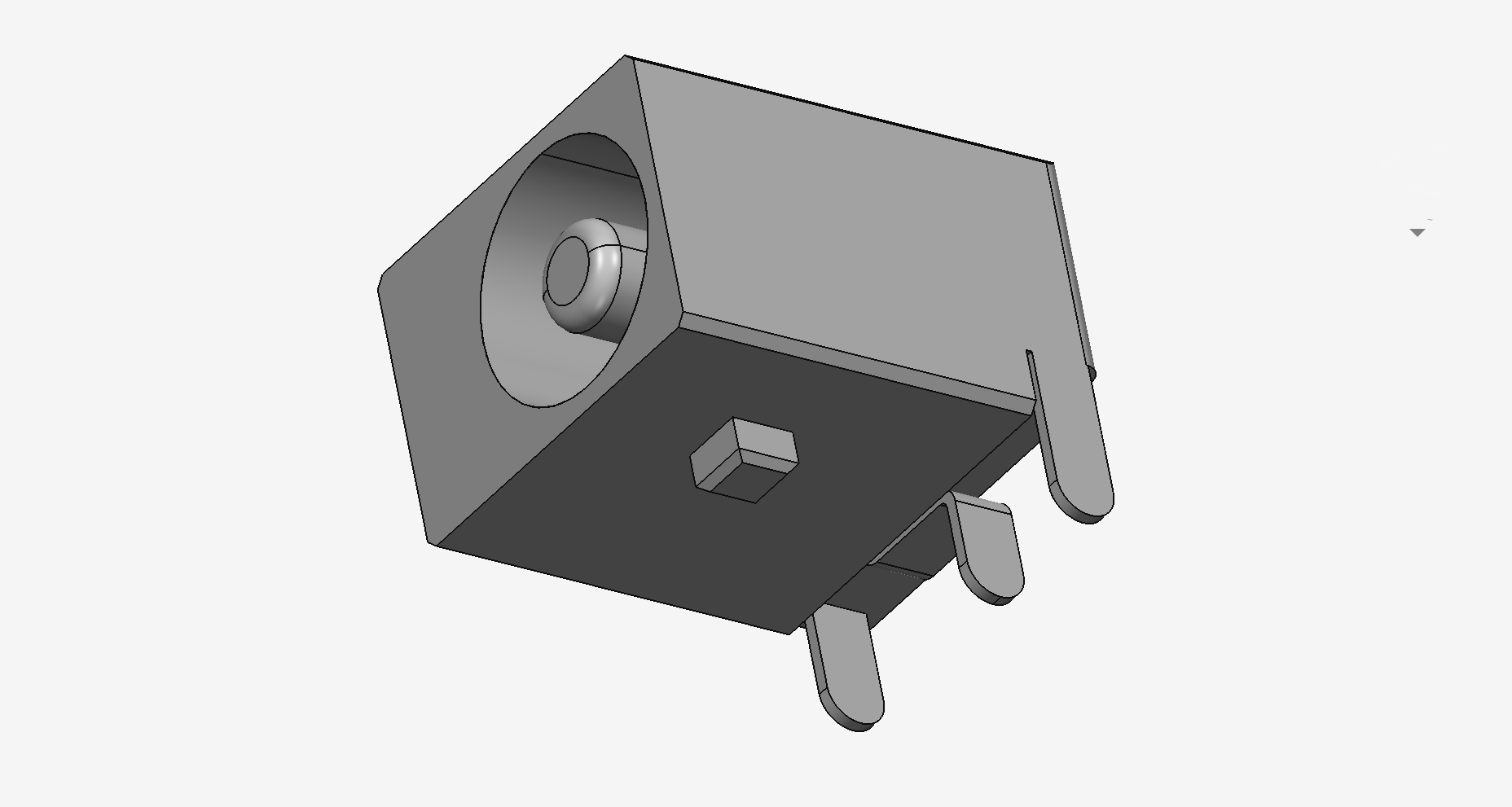

2DC-0026B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: -3.50 Body Width: 9.50 Body Height: 7.00 Body Length: 11.50 PCB to Top Height: 7.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

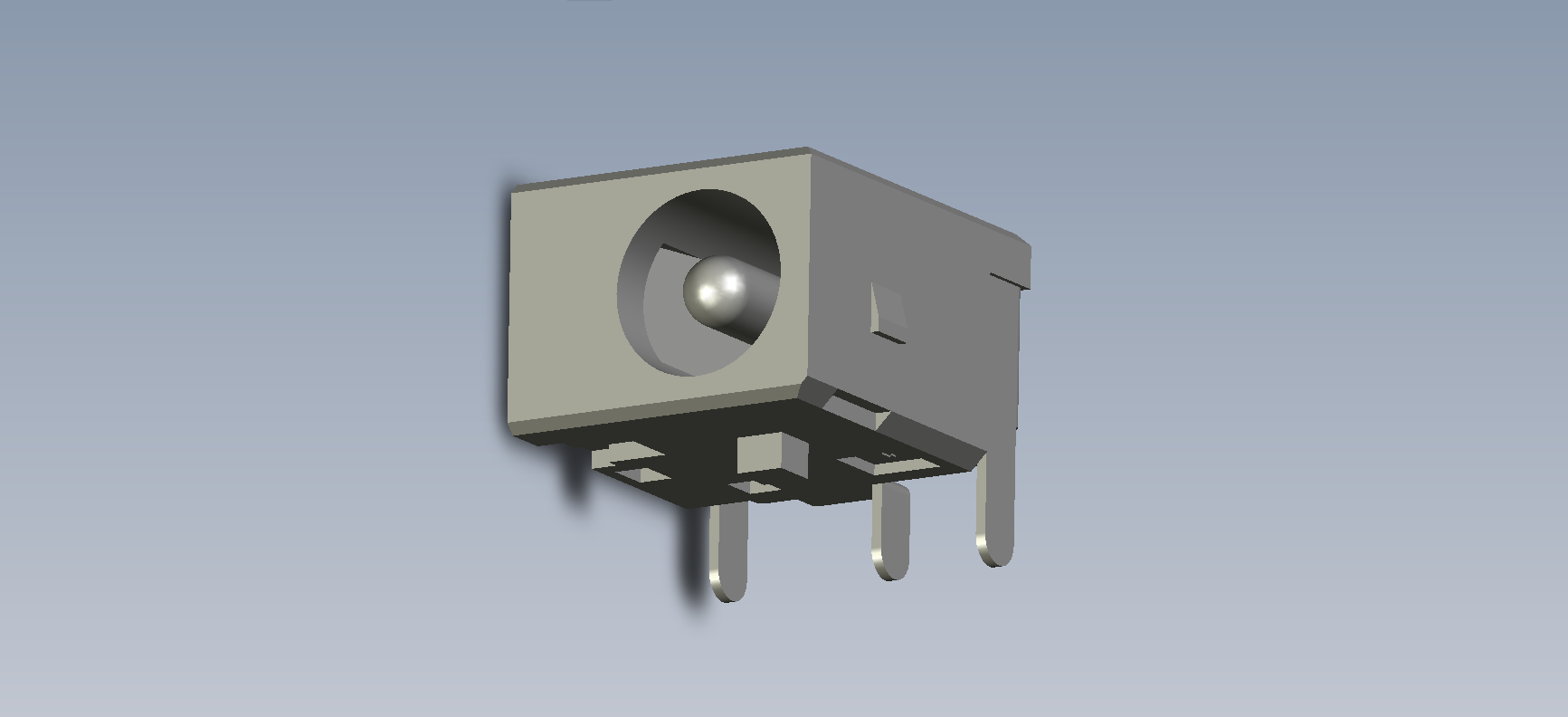

2DC-0026D200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: -3.50 Body Width: 9.50 Body Height: 7.00 Body Length: 11.50 PCB to Top Height: 7.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0026D201 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: -3.50 Body Width: 9.50 Body Height: 7.00 Body Length: 11.50 PCB to Top Height: 7.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0026L200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.95 Mating Plug: 3.10x5.50 Center Height: 3.50 Body Width: 9.50 Body Height: 7.00 Body Length: 11.50 PCB to Top Height: 7.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0034-Q04F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 13.00 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

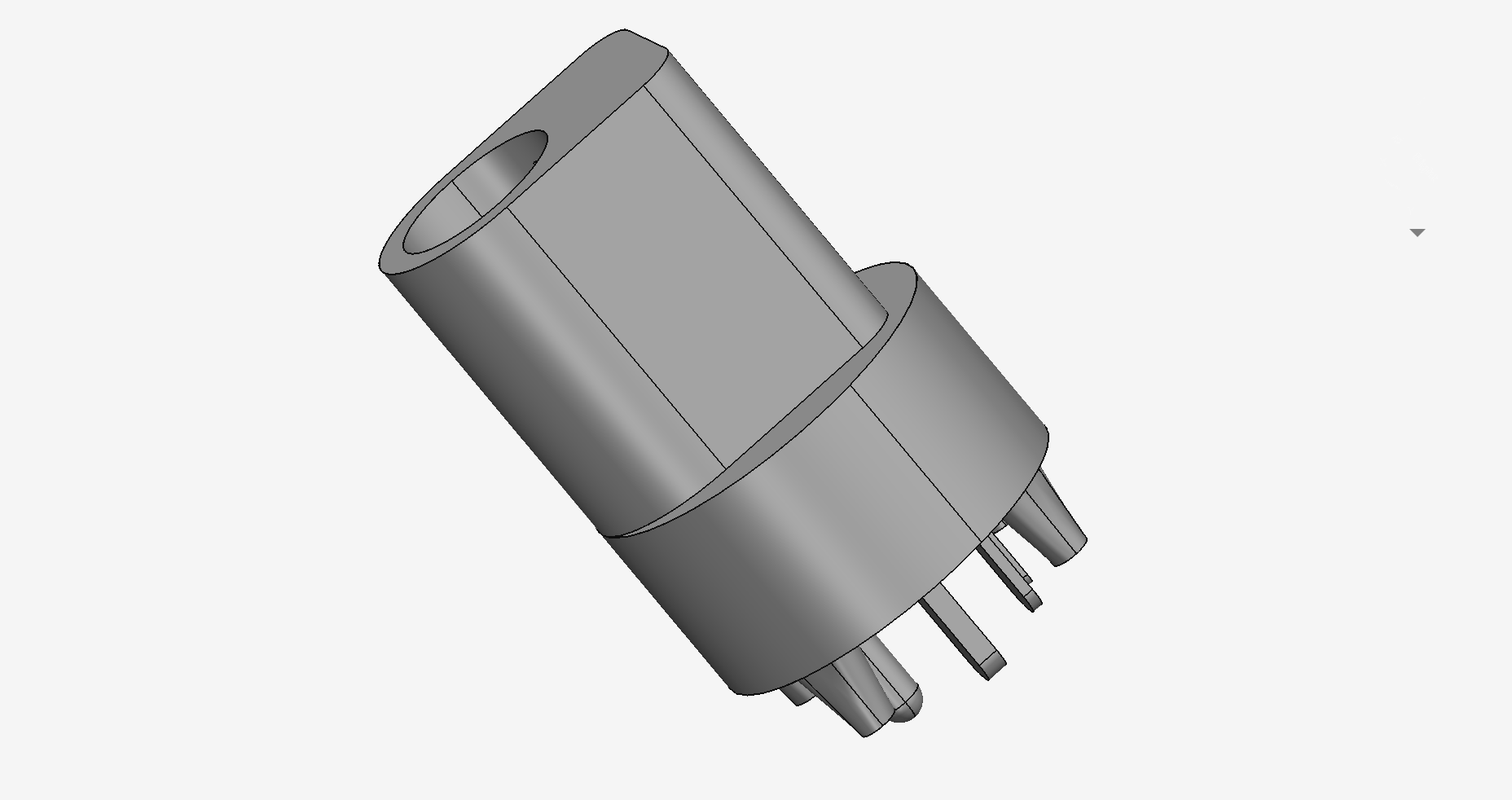

2DC-0036-H01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 12V Current Rating: 1A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: N/A Body Width: 8.70 Body Height: 13.83 Body Length: 13.83 PCB to Top Height: 13.83 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

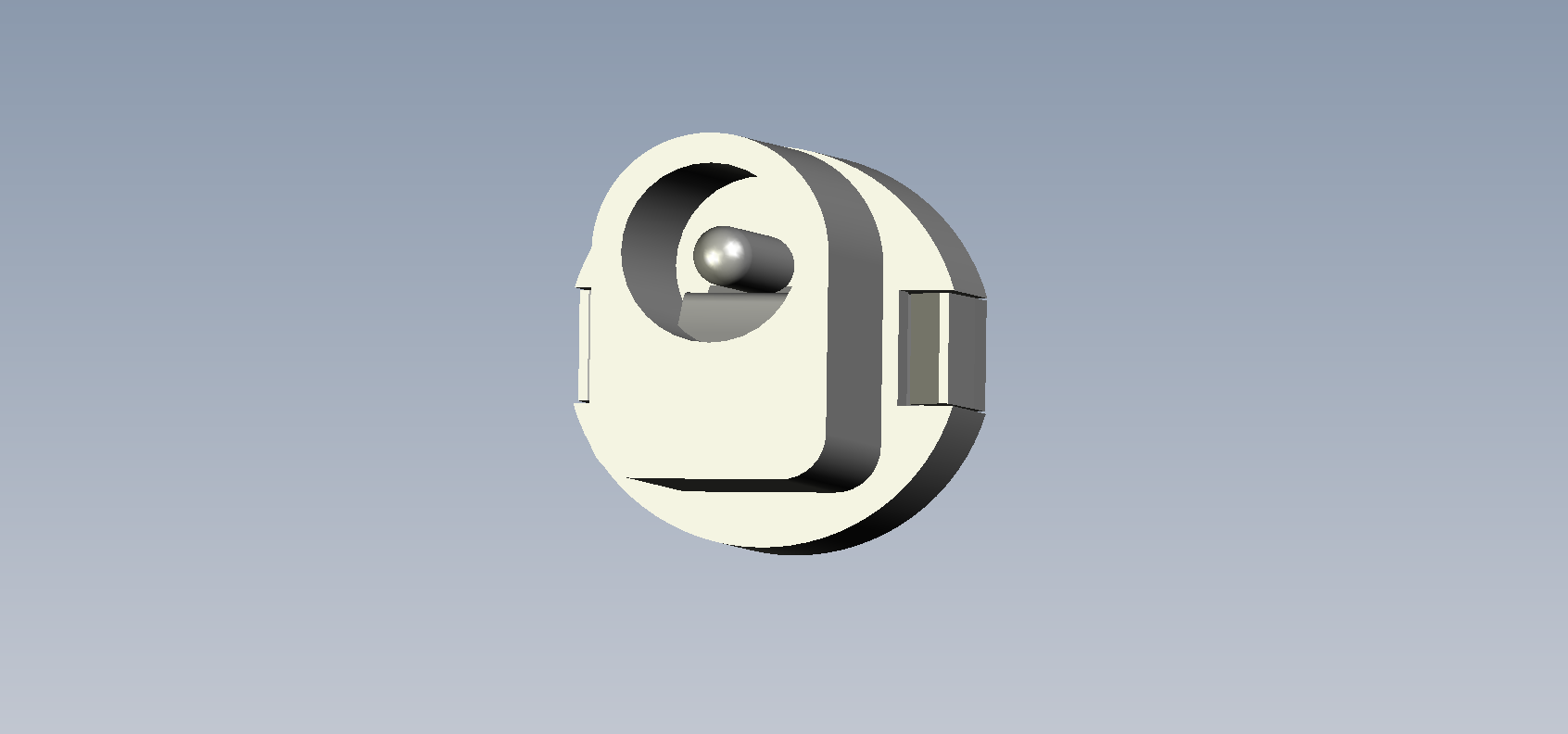

2DC-0036-H03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 12V Current Rating: 1A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: N/A Body Width: 8.70 Body Height: 12.00 Body Length: 12.00 PCB to Top Height: 12.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0036-H04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 12V Current Rating: 1A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: N/A Body Width: 8.70 Body Height: 13.45 Body Length: 13.45 PCB to Top Height: 13.45 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

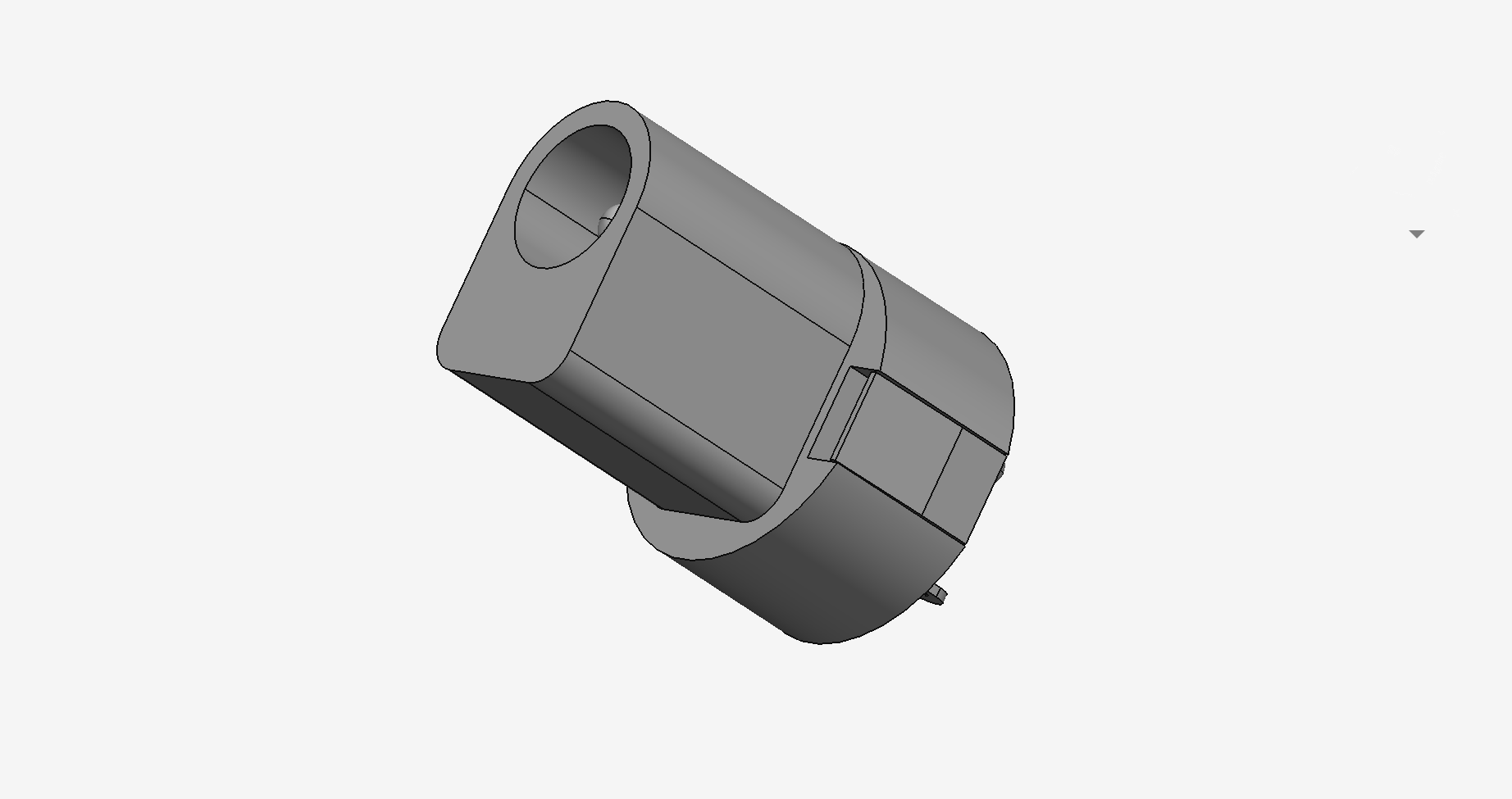

2DC-0036-H06H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 12V Current Rating: 1A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: N/A Body Width: 8.70 Body Height: 12.00 Body Length: 12.00 PCB to Top Height: 12.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

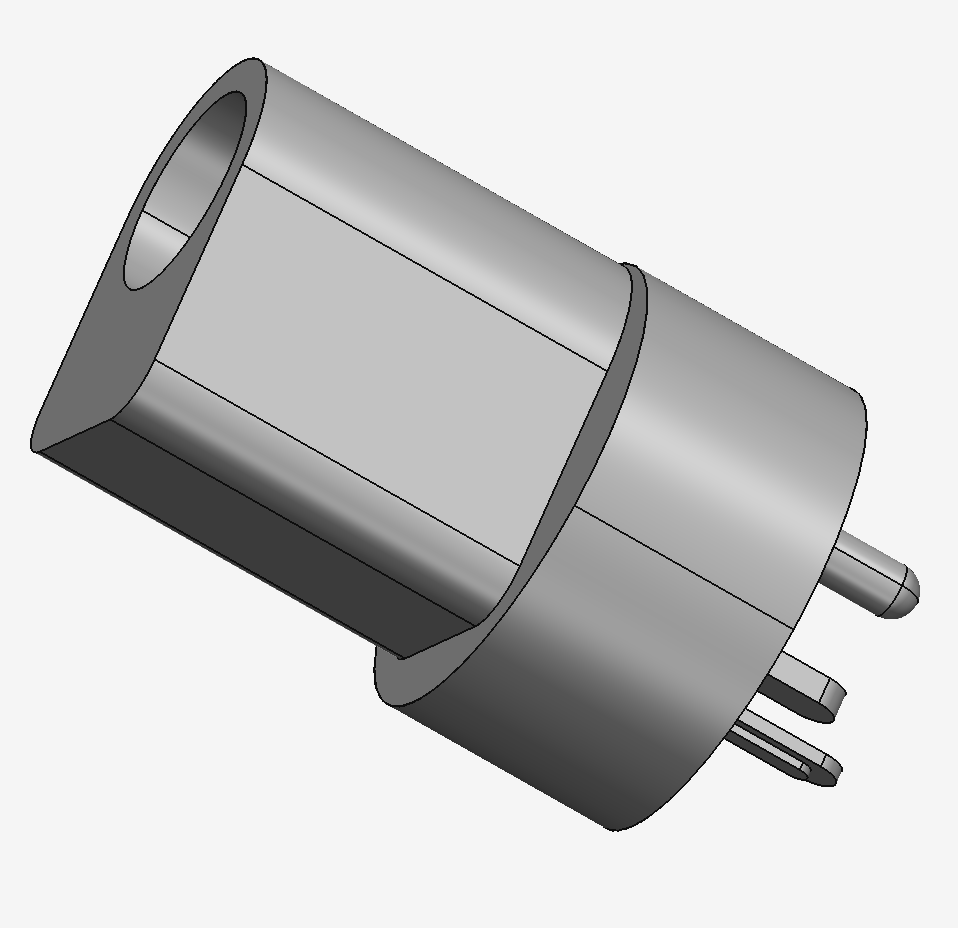

2DC-0036H122 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 12V Current Rating: 1A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: N/A Body Width: 8.70 Body Height: 12.00 Body Length: 12.00 PCB to Top Height: 12.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0039E100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 12V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.98 Mating Plug: 2.10x5.50 Center Height: N/A Body Width: 10.50 Body Height: 13.70 Body Length: 13.70 PCB to Top Height: 13.70 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

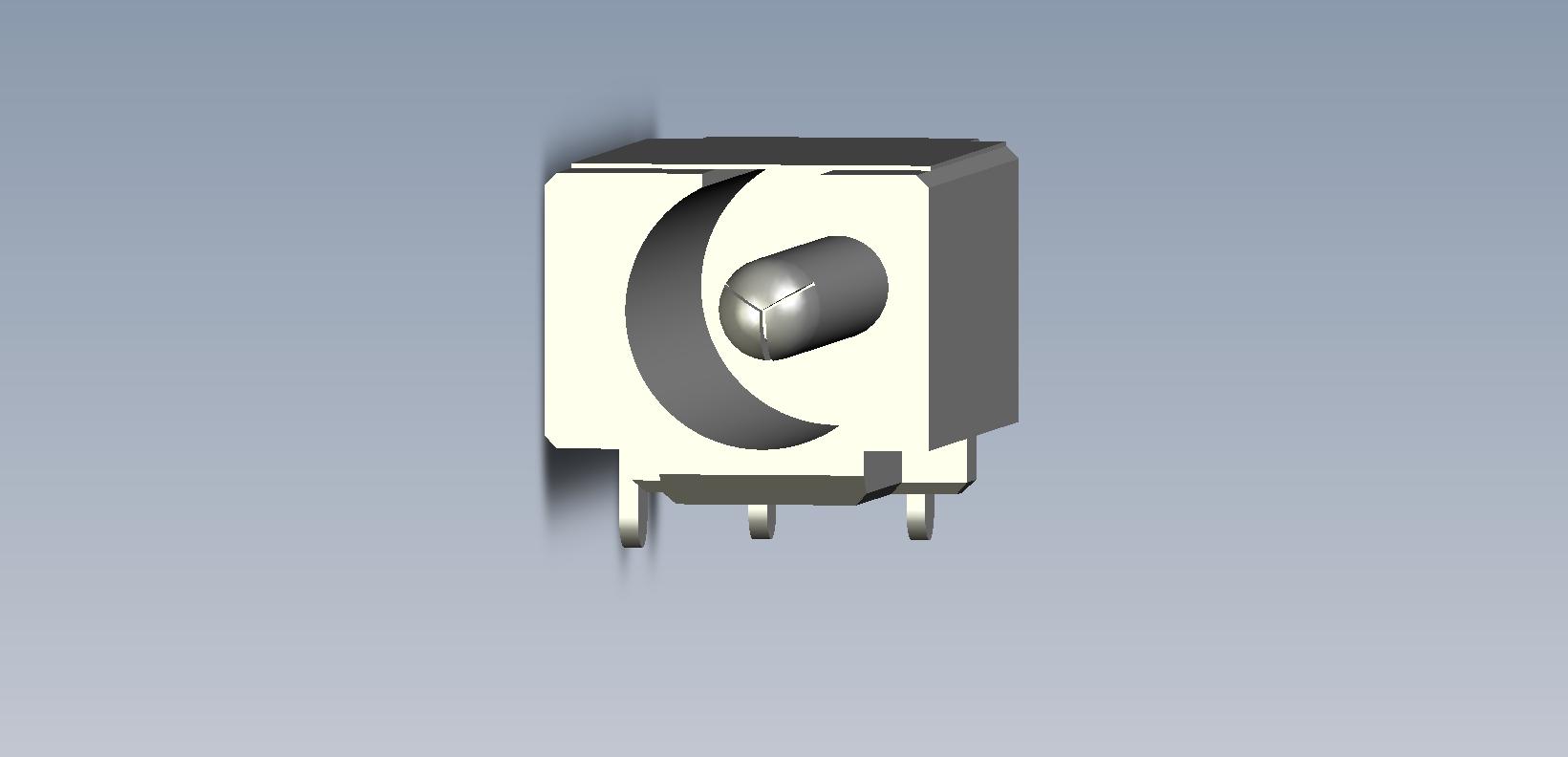

2DC-0051-I03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 6.3V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: -2.20 Body Width: 6.20 Body Height: 4.40 Body Length: 12.00 PCB to Top Height: 4.40 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

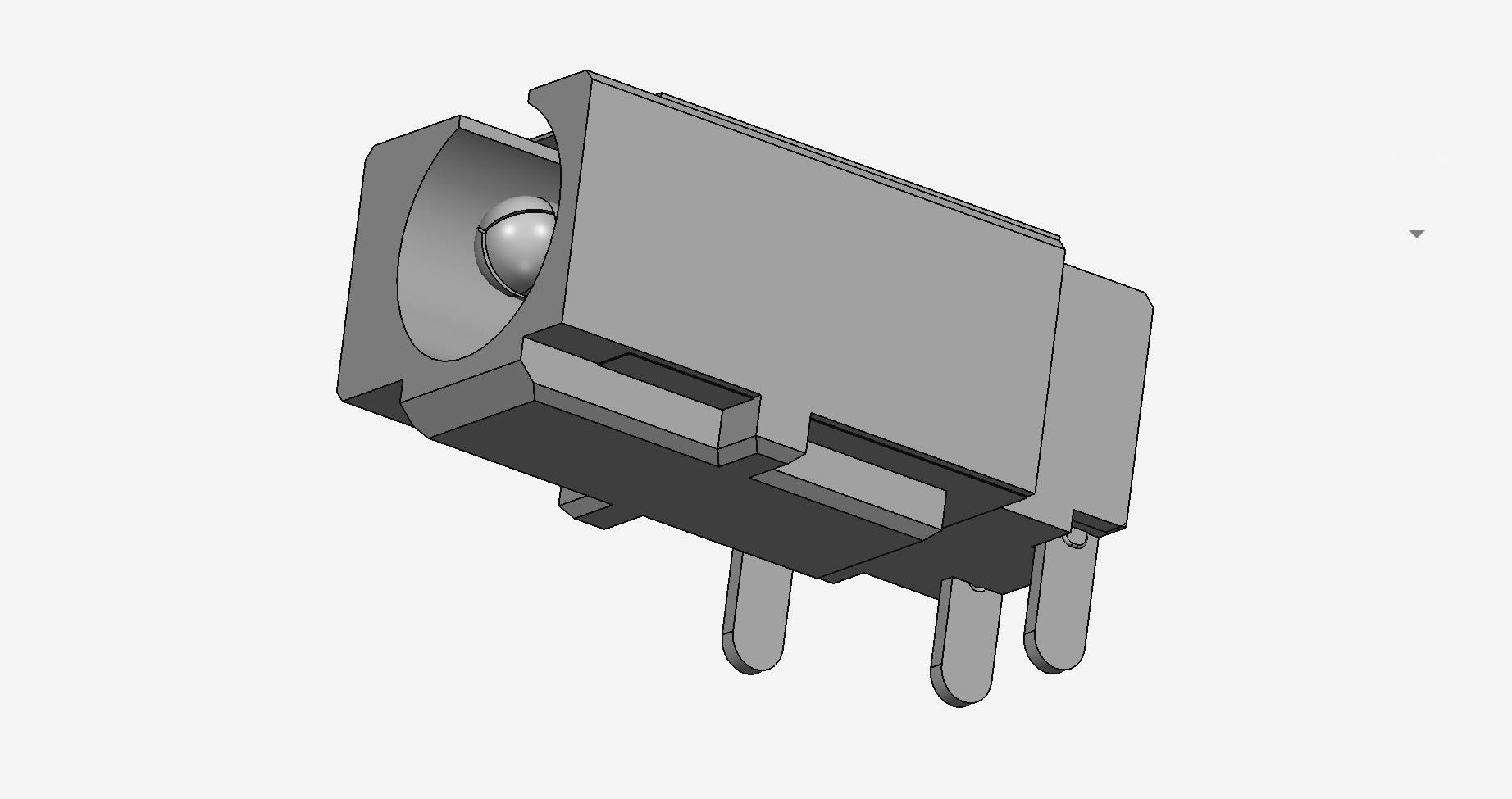

2DC-0051-Q10 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 6.3V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: -2.20 Body Width: 6.20 Body Height: 4.40 Body Length: 12.00 PCB to Top Height: 4.40 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0053-K06 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 12V Current Rating: 3A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: N/A Body Width: 5.90 Body Height: 3.95 Body Length: 8.70 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

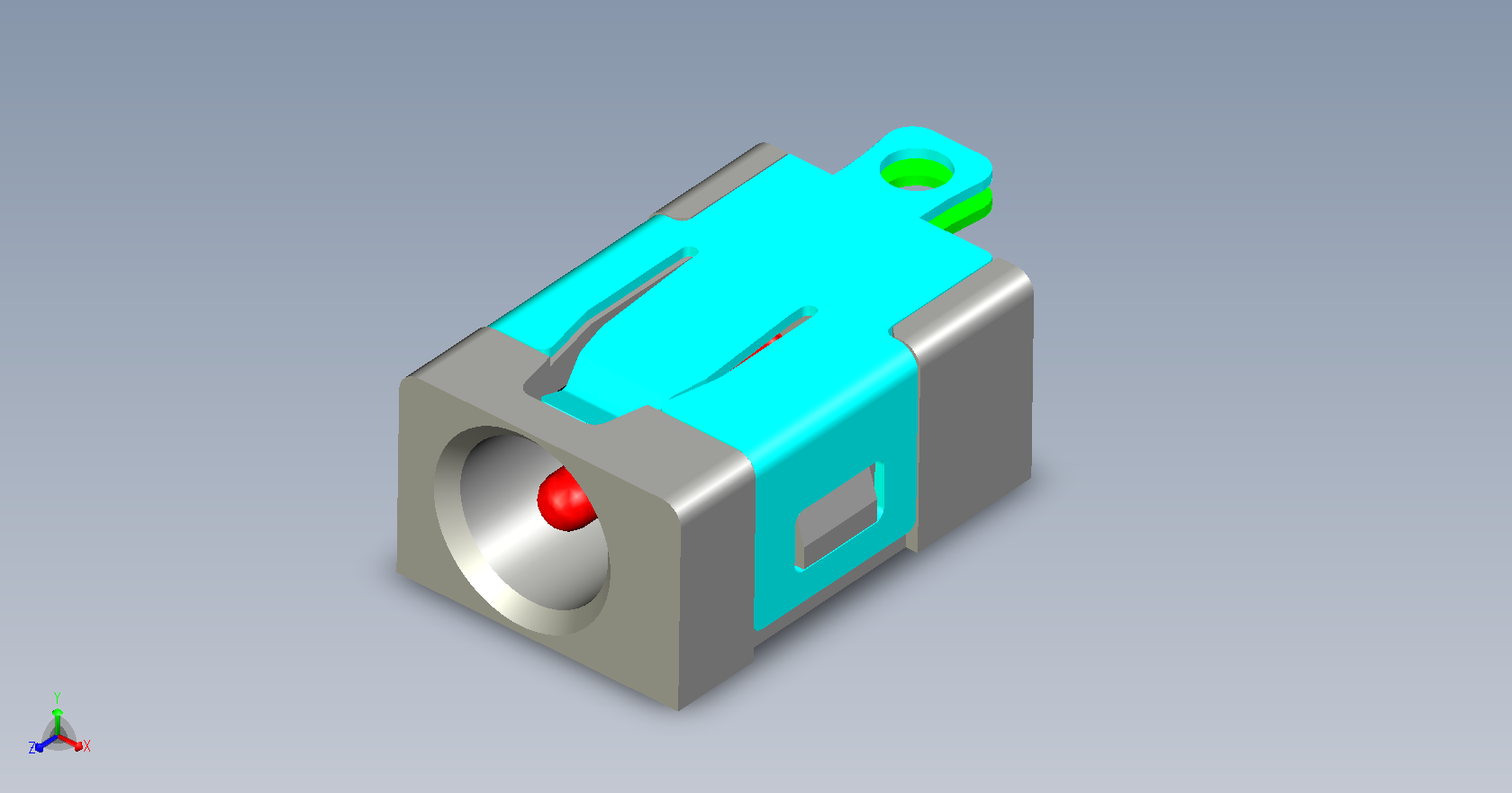

2DC-0053-K08 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 15V Current Rating: 4A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.10 Mating Plug: 1.10x3.00 Center Height: N/A Body Width: 5.90 Body Height: 3.95 Body Length: 8.70 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0053-K12 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 19V Current Rating: 2A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: N/A Body Width: 5.90 Body Height: 3.95 Body Length: 8.70 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

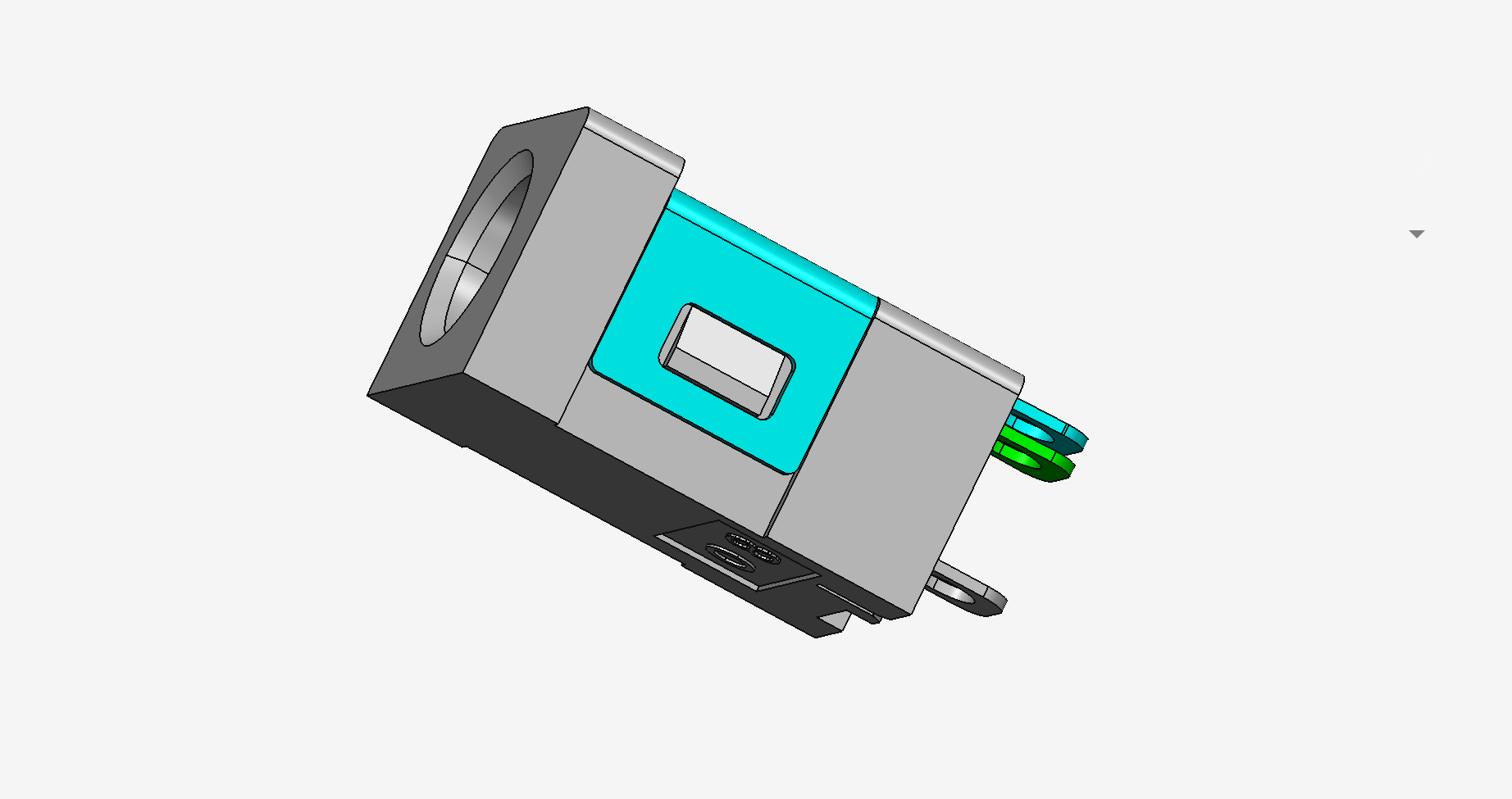

2DC-0053-K16F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: N/A Body Width: 5.90 Body Height: 5.05 Body Length: 8.70 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

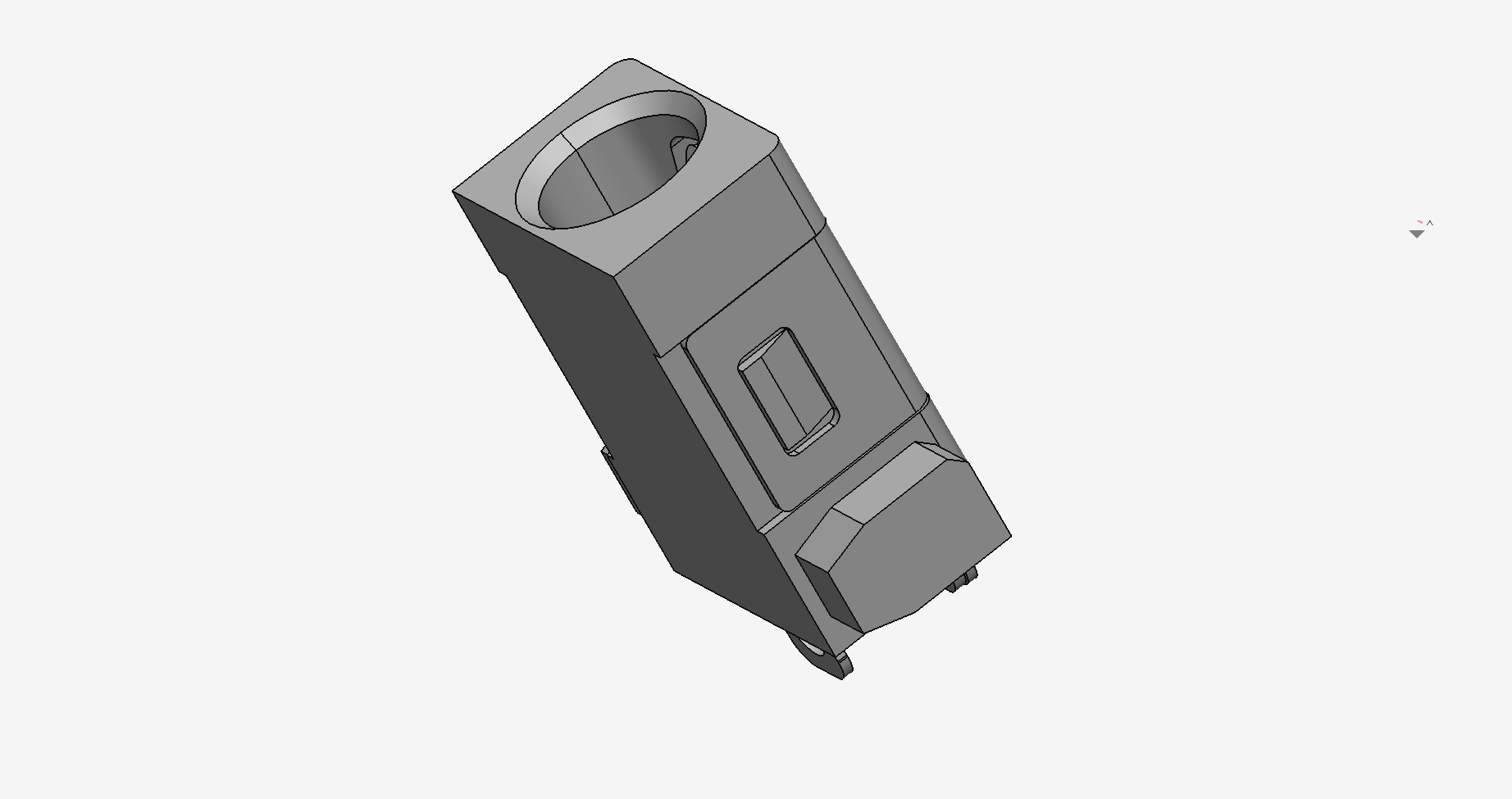

2DC-0053-K21F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 19V Current Rating: 3.42A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: N/A Body Width: 8.30 Body Height: 3.95 Body Length: 8.70 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-0053-K23F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 3A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.10 Mating Plug: 1.10x3.00 Center Height: N/A Body Width: 5.90 Body Height: 3.95 Body Length: 8.70 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0053-K27F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 19V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.00 Body Width: 5.90 Body Height: 4.05 Body Length: 10.70 PCB to Top Height: 4.05 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0053-K28F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 19V Current Rating: 3.42A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: N/A Body Width: 5.90 Body Height: 3.95 Body Length: 8.70 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: White Halogen Free: Yes High Temperature: Yes LED: No

2DC-0053-K29F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 19V Current Rating: 3.42A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.10 Mating Plug: 1.10x3.00 Center Height: N/A Body Width: 5.90 Body Height: 3.95 Body Length: 8.70 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Yellow Halogen Free: Yes High Temperature: No LED: No

2DC-0053-K30F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 19V Current Rating: 3.42A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: N/A Body Width: 5.90 Body Height: 3.95 Body Length: 8.70 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-0053-K31F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 19V Current Rating: 3.5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.00 Body Width: 5.90 Body Height: 4.05 Body Length: 8.70 PCB to Top Height: 4.05 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0053-K32F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 12V Current Rating: 6A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.00 Body Width: 5.90 Body Height: 4.05 Body Length: 8.70 PCB to Top Height: 4.05 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0053-K33F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 19V Current Rating: 3A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.00 Body Width: 5.90 Body Height: 4.65 Body Length: 11.75 PCB to Top Height: 4.65 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0053-K34F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: Hybrid Voltage Rating: 19V Current Rating: 3A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.00 Body Width: 5.90 Body Height: 4.05 Body Length: 10.70 PCB to Top Height: 4.05 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0057-B02 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 15V Current Rating: 9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 11.40 Body Height: 13.80 Body Length: 14.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0057-B11 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 15V Current Rating: 9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 11.40 Body Height: 13.80 Body Length: 14.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0057-B13H DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 15V Current Rating: 9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 13.80 Body Height: 14.50 Body Length: 14.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-0057-B14F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: Wire Voltage Rating: 15V Current Rating: 9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 5.50 Center Height: N/A Body Width: 13.80 Body Height: 14.50 Body Length: 14.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-009T-C01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 3.5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.50x5.50 Center Height: 3.85 Body Width: 10.50 Body Height: 8.30 Body Length: 12.00 PCB to Top Height: 8.30 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-009T-E01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 3.5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.98 Mating Plug: 2.00x5.50 Center Height: 3.85 Body Width: 10.50 Body Height: 8.30 Body Length: 12.00 PCB to Top Height: 8.30 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-009T-H01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 3.5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.45x5.50 Center Height: 3.85 Body Width: 10.50 Body Height: 8.30 Body Length: 12.00 PCB to Top Height: 8.30 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0106-C03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 6.00 Body Width: 7.00 Body Height: 9.50 Body Length: 12.20 PCB to Top Height: 9.50 Miscellaneous Status: Obsolete Shielding: No Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-0107B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0228-B02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 9.05 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0228-B03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 9.05 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0228-I02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 9.05 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0228B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 9A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 9.05 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0228D200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: N/A Body Width: 9.05 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0228I200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 9.05 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0233-B17H DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0238-L01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 9.5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.95 Mating Plug: 3.10x6.50 Center Height: N/A Body Width: 9.90 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0238-L04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 6A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.95 Mating Plug: 3.10x6.50 Center Height: N/A Body Width: 9.90 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0238-R05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 8A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.95 Mating Plug: 3.10x6.50 Center Height: N/A Body Width: 9.90 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0238-R06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 8A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.95 Mating Plug: 3.10x6.50 Center Height: N/A Body Width: 10.65 Body Height: 11.70 Body Length: 11.70 PCB to Top Height: 11.70 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0238-R07H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 8A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.95 Mating Plug: 3.10x6.50 Center Height: N/A Body Width: 9.90 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0268-B01 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 12.00 Body Height: 11.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0268-B05 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 12.00 Body Height: 11.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0268-B07 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 12.00 Body Height: 10.85 Body Length: 13.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0268-B17 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 5.5A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 12.00 Body Height: 11.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0268-B19F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 8A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 12.00 Body Height: 13.60 Body Length: 10.85 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0268B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 12.00 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0268B211F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 12.00 Body Height: 11.60 Body Length: 11.60 PCB to Top Height: 11.60 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-0305-C06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 12V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305-D06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 12V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305-F06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 12V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305-G06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 12V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305C200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305C209 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: -6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305D200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305F200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305F209 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305G200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0305G209 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0326-C01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 19V Current Rating: 3.16A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 3.50 Body Width: 11.00 Body Height: 8.45 Body Length: 11.50 PCB to Top Height: 8.45 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0405-B02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0405-D02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0405F200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415-B02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415-B03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415-B06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.55 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415-C03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415-D01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415-D03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415-F03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415-G03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.45x5.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.55 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0415D200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 14V Current Rating: 3.9A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.55 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0435-H02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0435-H03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0435-H04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 6.65 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0505B100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0505B400H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0505D100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0525D2A5 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0525G2A5 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0655-308 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.60 Mating Plug: 2.60x5.50 Center Height: N/A Body Width: 12.70 Body Height: N/A Body Length: 17.15 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-0726B201 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.60 Body Height: 7.00 Body Length: 11.50 PCB to Top Height: 7.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-0726D201 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: -3.50 Body Width: 10.60 Body Height: 7.00 Body Length: 11.50 PCB to Top Height: 7.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-45P06J-3T00 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: N/A Current Rating: N/A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 0.70 Mating Plug: 0.60x2.90x4.50 Center Height: N/A Body Width: 7.50 Body Height: 7.50 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-655-125 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.60 Mating Plug: 2.60x5.50 Center Height: N/A Body Width: 12.70 Body Height: N/A Body Length: 17.15 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-655-139 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: 20V Current Rating: 9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.60 Mating Plug: 2.60x5.50 Center Height: N/A Body Width: N/A Body Height: 18.00 Body Length: 18.00 PCB to Top Height: 18.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-65P14J1T00 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: N/A Current Rating: N/A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.40x4.30x6.00 Center Height: N/A Body Width: N/A Body Height: 10.20 Body Length: 15.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-65P14J1TP00 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: N/A Current Rating: N/A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.40x4.30x6.00 Center Height: N/A Body Width: N/A Body Height: 10.20 Body Length: 15.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-73-165 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 6.45 Body Width: 11.00 Body Height: N/A Body Length: 17.85 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-73-165S DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 6.45 Body Width: 11.00 Body Height: N/A Body Length: 17.85 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-73-20 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.45 Body Width: 11.00 Body Height: N/A Body Length: 17.85 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-73-20S DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.45 Body Width: 11.00 Body Height: N/A Body Length: 17.85 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-73-25 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.45 Body Width: 11.00 Body Height: N/A Body Length: 17.85 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-73-25S DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.45 Body Width: 11.00 Body Height: N/A Body Length: 17.85 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-A252-K01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 15V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.30 Body Width: 6.00 Body Height: 4.60 Body Length: 12.00 PCB to Top Height: 4.60 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-A252-K02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 15V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.30 Body Width: 6.00 Body Height: 4.60 Body Length: 12.00 PCB to Top Height: 4.60 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-A252-K03F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 15V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.30 Body Width: 6.00 Body Height: 4.60 Body Length: 12.00 PCB to Top Height: 4.60 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-A252A-A640-400 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 12V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.30 Body Width: 6.00 Body Height: 4.60 Body Length: 12.00 PCB to Top Height: 4.60 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-B224-H13 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 5V Current Rating: 3.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.50 Body Width: 6.30 Body Height: 5.00 Body Length: 9.00 PCB to Top Height: 5.00 Miscellaneous Status: Obsolete Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-B01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-B12 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 13.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-B14 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.30 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-B16 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 13.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-B25 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026-B29 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026-B30 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-B32 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 13.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026-B37F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G026-B38F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026-B40F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026-B41F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026-C01F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026-C02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-D01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.90 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-D31 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026-D35F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026-I02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-I05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G026-I06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-G026-I09 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 19V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.90 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026-Q01F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026B201 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G026C201 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G026D201 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G028-B01 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 11.80 PCB to Top Height: 5.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G028-B04 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G028-B06 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G028-B09 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G028-B12 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G028-B13 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G028-B16F DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G028-B18F DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 11.80 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G028-B19F DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 11.80 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G028-C10 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G028-C11 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G028-I02 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G028-I03 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Blue Halogen Free: Yes High Temperature: Yes LED: No

2DC-G052-IY1 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 0.80 Body Width: 10.50 Body Height: 10.20 Body Length: 14.60 PCB to Top Height: 6.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: Yes High Temperature: Yes LED: No

2DC-G062-Q04 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 19V Current Rating: 5A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: N/A Body Width: 11.90 Body Height: 10.00 Body Length: 15.70 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: Yes

2DC-G107B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G107C200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G128-Q03 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.30 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G128-Q05 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.15 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G128-Q07F DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 11.80 PCB to Top Height: 5.40 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G128I200 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.75x4.75 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 11.70 PCB to Top Height: 5.40 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G128I300H DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 11.70 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B07 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 10.00 Body Height: 13.70 Body Length: 13.00 PCB to Top Height: 11.50 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B10 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B13 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B20 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B26 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.80 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B27 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 10.00 Body Height: 11.50 Body Length: 13.00 PCB to Top Height: 11.50 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B28 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B29 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B30 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B34 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B35 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B36 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.80 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B38 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B48 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Gray Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B49 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B51 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B52 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B55 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B62 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B66 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B70H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.80 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-B73F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 11.40 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B76F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B78F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B79F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B80F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 12A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B81F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 4.70 Body Width: 10.00 Body Height: 9.70 Body Length: 13.00 PCB to Top Height: 9.70 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B82F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B83F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B85H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B86F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 12A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B88F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B89F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B92F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B93F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.10 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B96H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B98F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-B99F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-BA1F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: Dip Voltage Rating: N/A Current Rating: N/A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 5.50x2.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.15 PCB to Top Height: 10.10 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-D42 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-D64 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-D65F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-D72H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-D73F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 19.75 Body Length: 14.25 PCB to Top Height: 17.55 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-D74F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213-D75F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.70 Body Width: 10.00 Body Height: 11.70 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-I44 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G213-Q53 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 8.00 Body Width: 10.00 Body Height: 14.50 Body Length: 13.15 PCB to Top Height: 13.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-G213-Q54 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 8.00 Body Width: 10.00 Body Height: 14.50 Body Length: 13.15 PCB to Top Height: 13.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213-Q70F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Blue Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213B300H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213B400F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 5.30 Body Width: 10.00 Body Height: 10.00 Body Length: 13.00 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G213C200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213D200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G213I200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 5.10 Body Width: 10.00 Body Height: 12.20 Body Length: 13.15 PCB to Top Height: 10.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G233-B02 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 21.00 Body Height: 12.20 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G233-B07 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 14.10 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G233-B17 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 10.00 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G233-B24 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 14.10 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G233-B36 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 20.50 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G233-B37 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 19V Current Rating: 9A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 20.50 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G233-B38 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 20.50 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G233-B41F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 20.50 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G233-B48F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 14.10 Body Height: 12.50 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G233-B50F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 14.10 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G233-B53F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 20.50 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G233-B54F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 15.25 Body Height: 11.70 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G233-B58F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 14.00 Body Height: 9.90 Body Length: 13.10 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G233-B61F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 5.50 Center Height: N/A Body Width: 20.50 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G233-I05 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 14.10 Body Height: 12.50 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G233-I06 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 14.10 Body Height: 12.50 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-G233B200 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 20.50 Body Height: 10.00 Body Length: 16.50 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G313-B03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 7.00 Body Width: 12.40 Body Height: 13.40 Body Length: 19.50 PCB to Top Height: 13.40 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G313-B05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 7.00 Body Width: 12.40 Body Height: 13.40 Body Length: 18.80 PCB to Top Height: 13.40 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G313-B06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 7.00 Body Width: 12.40 Body Height: 13.40 Body Length: 19.50 PCB to Top Height: 13.40 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G313-B07 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 7.00 Body Width: 12.40 Body Height: 13.40 Body Length: 18.80 PCB to Top Height: 13.40 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G313-B08 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 7.00 Body Width: 12.40 Body Height: 13.40 Body Length: 15.40 PCB to Top Height: 13.40 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G313-B09H DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 11A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 7.00 Body Width: 12.40 Body Height: 13.40 Body Length: 19.50 PCB to Top Height: 13.40 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G313-B10F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 7.00 Body Width: 12.40 Body Height: 13.40 Body Length: 15.40 PCB to Top Height: 13.40 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G313-B11F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 7.00 Body Width: 12.40 Body Height: 15.70 Body Length: 18.80 PCB to Top Height: 13.40 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G313-B13F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 7.00 Body Width: 12.40 Body Height: 13.40 Body Length: 15.40 PCB to Top Height: 13.40 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G328-B02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: -2.10 Body Width: 9.90 Body Height: 9.00 Body Length: 13.85 PCB to Top Height: 2.48 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G328-B06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: -2.15 Body Width: 9.90 Body Height: 9.00 Body Length: 13.85 PCB to Top Height: 2.48 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G328-B10 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: -0.38 Body Width: 9.90 Body Height: 9.00 Body Length: 13.85 PCB to Top Height: 4.25 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G328-C02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: -2.10 Body Width: 9.90 Body Height: 9.00 Body Length: 13.85 PCB to Top Height: 2.48 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G328-D04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: -2.10 Body Width: 9.90 Body Height: 9.00 Body Length: 13.85 PCB to Top Height: 4.25 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G505-D01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 10.10 Body Height: 14.70 Body Length: 16.00 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G505-D03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 12.40 Body Height: 18.30 Body Length: 16.00 PCB to Top Height: 14.60 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G723I200 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 2.60 Body Width: 8.00 Body Height: 8.00 Body Length: 11.50 PCB to Top Height: 6.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G726-B01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.90 Body Height: 7.30 Body Length: 11.90 PCB to Top Height: 7.30 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G726-I02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.90 Body Height: 7.30 Body Length: 11.90 PCB to Top Height: 7.30 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G726-I03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 3.50 Body Width: 10.90 Body Height: 7.30 Body Length: 11.90 PCB to Top Height: 7.30 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G726-Q12 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.90 Body Height: 7.20 Body Length: 11.90 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Blue Halogen Free: Yes High Temperature: Yes LED: No

2DC-G726-Q22 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.55 Body Width: 10.90 Body Height: 7.45 Body Length: 11.90 PCB to Top Height: 7.45 Miscellaneous Status: Active Shielding: Yes Body Color: Blue Halogen Free: Yes High Temperature: Yes LED: No

2DC-G726-Q23 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.55 Body Width: 10.90 Body Height: 7.45 Body Length: 11.90 PCB to Top Height: 7.45 Miscellaneous Status: Active Shielding: Yes Body Color: Yellow Halogen Free: Yes High Temperature: Yes LED: No

2DC-G726-Q24 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.55 Body Width: 10.90 Body Height: 7.45 Body Length: 11.90 PCB to Top Height: 7.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: Yes High Temperature: Yes LED: No

2DC-G726-Q25F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4.5A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.90 Body Height: 7.20 Body Length: 11.90 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Yellow Halogen Free: Yes High Temperature: Yes LED: No

2DC-G726B201 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.90 Body Height: 7.20 Body Length: 11.90 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-B02 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 10A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-G756-B06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G756-B09 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-G756-B13 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-G756-B19 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-G756-B25 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-B33 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-G756-B47 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-B49 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-B51 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-B53 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Green Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-B64 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 14.10 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-B79 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-B88 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 9.90 Body Height: 7.50 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-B91 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.30 Body Height: 7.20 Body Length: 12.40 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-B93 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 14.10 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-B99 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-BA3 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.90 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-BA6F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-BB1F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: N/A Body Width: 9.90 Body Height: 7.50 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-BB2F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 9.85 Body Height: 7.50 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-BB6F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 9.90 Body Height: 7.50 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-BB8F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-BC1F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.30 Body Height: 7.20 Body Length: 12.40 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-BC3F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 19V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-BC6F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 9.90 Body Height: 7.50 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-BC7F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-BC9H DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-BD4F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-BD7F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.90 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-BD8F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.30 Body Height: 7.20 Body Length: 12.40 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-BD9F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.25 Body Height: 7.20 Body Length: 12.00 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-C06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G756-C09 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-G756-D06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G756-D09 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-G756-D10F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-I01 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-I03 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-G756-I06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G756-I09 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-G756-I11 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-G756-I12 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G756-I18 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: No LED: No

2DC-G756-I23 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G756-I24 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-I27 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Blue Halogen Free: No High Temperature: Yes LED: No

2DC-G756-I28 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-G756-Q31 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-Q34 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-Q71 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-Q72 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Blue Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756-Q81 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756-QA5F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 20V Current Rating: 4.5A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 11.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756-QA6F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 33V Current Rating: 2A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: N/A Body Width: 7.20 Body Height: 10.00 Body Length: 14.95 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-G756B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 14.10 PCB to Top Height: 7.20 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756C200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756D200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-G756I200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G756I200F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.60 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-G813I200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 6.00 Body Width: 8.00 Body Height: 11.00 Body Length: 11.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-02A DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.35x3.50 Center Height: 2.60 Body Width: 8.00 Body Height: 5.20 Body Length: 9.30 PCB to Top Height: 5.20 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-02B DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.60 Body Width: 8.00 Body Height: 5.20 Body Length: 9.30 PCB to Top Height: 5.20 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-02C DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.35x3.50 Center Height: 2.60 Body Width: 8.00 Body Height: 5.20 Body Length: 9.30 PCB to Top Height: 5.20 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-03A DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 30V Current Rating: 2A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.50 Body Width: 6.60 Body Height: 5.00 Body Length: 11.00 PCB to Top Height: 5.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-03B DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 30V Current Rating: 2A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.50 Body Width: 6.60 Body Height: 5.00 Body Length: 11.00 PCB to Top Height: 5.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-04A DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.60 Body Width: 8.90 Body Height: 11.00 Body Length: 14.70 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-04B DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.70 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-06MA DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.05x3.50 Center Height: 2.35 Body Width: 6.00 Body Height: 4.70 Body Length: 9.00 PCB to Top Height: 4.70 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-06MB DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.35 Body Width: 6.00 Body Height: 4.70 Body Length: 9.00 PCB to Top Height: 4.70 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-11-R DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 12V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.05x3.00 Center Height: 2.30 Body Width: 6.00 Body Height: 4.60 Body Length: 12.00 PCB to Top Height: 4.60 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-11A-R DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 5V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.30 Body Width: 6.00 Body Height: 4.60 Body Length: 12.00 PCB to Top Height: 4.60 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-12G DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 12V Current Rating: 1A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 0.80 Mating Plug: 0.90x3.00 Center Height: 1.90 Body Width: 6.00 Body Height: 4.00 Body Length: 11.50 PCB to Top Height: 4.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-16KA DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-16KB DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-16KSA DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-16KSB DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-23 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.30 Body Width: 6.00 Body Height: 6.40 Body Length: 12.00 PCB to Top Height: 6.40 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-23F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 30V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.00 Center Height: 3.30 Body Width: 6.00 Body Height: 6.35 Body Length: 12.00 PCB to Top Height: 6.35 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-24-R DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 12V Current Rating: 2A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 0.65 Mating Plug: 0.70x2.50 Center Height: 1.30 Body Width: 5.00 Body Height: 3.00 Body Length: 9.50 PCB to Top Height: 3.00 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-K020-25A DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: SMT Voltage Rating: N/A Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: N/A Body Width: 9.00 Body Height: 13.35 Body Length: 13.35 PCB to Top Height: 14.15 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-KM02014 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 2.30 Body Width: 6.00 Body Height: 4.60 Body Length: 12.00 PCB to Top Height: 4.60 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-KM02022ABMP DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 6.50 Body Width: 10.00 Body Height: 11.50 Body Length: 14.50 PCB to Top Height: 11.50 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-KM02022AYMP DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.10x3.00 Center Height: 6.50 Body Width: 10.00 Body Height: 11.50 Body Length: 14.50 PCB to Top Height: 11.50 Miscellaneous Status: Active Shielding: No Body Color: Yellow Halogen Free: No High Temperature: No LED: No

2DC-KP020-02JA DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.40 Body Width: 7.30 Body Height: 5.00 Body Length: 12.70 PCB to Top Height: 5.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-KP020-02JAA DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.40 Body Width: 7.85 Body Height: 6.20 Body Length: 12.70 PCB to Top Height: 5.00 Miscellaneous Status: Active Shielding: Yes Body Color: BLACK Halogen Free: No High Temperature: Yes LED: No

2DC-KP020-02JSAA DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.40 Body Width: 7.30 Body Height: 5.00 Body Length: 12.70 PCB to Top Height: 5.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-L0209-1.0 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.00 Mating Plug: 1.05x3.50 Center Height: 4.70 Body Width: 5.00 Body Height: 7.40 Body Length: 11.40 PCB to Top Height: 7.40 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-L0209-1.3 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 4.70 Body Width: 5.00 Body Height: 7.40 Body Length: 11.40 PCB to Top Height: 7.40 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-L0213-20-03A DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Vertical Termination Style: DIP Voltage Rating: N/A Current Rating: N/A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: N/A Body Width: 9.00 Body Height: 13.60 Body Length: 13.60 PCB to Top Height: 13.60 Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-RJ-003 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 15V Current Rating: 2.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 9.00 Body Height: 24.50 Body Length: 14.10 PCB to Top Height: 24.50 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-S005-B15F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 9.10 Body Width: 9.00 Body Height: 13.60 Body Length: 14.50 PCB to Top Height: 13.60 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S005-C06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Light Gray Halogen Free: No High Temperature: Yes LED: No

2DC-S005-D06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Light Gray Halogen Free: No High Temperature: Yes LED: No

2DC-S005-D12 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-S005-D13 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Red Halogen Free: No High Temperature: No LED: No

2DC-S005-D14F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 9.10 Body Width: 9.00 Body Height: 13.60 Body Length: 14.50 PCB to Top Height: 13.60 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S005-D15F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S005-D16F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S005-D17F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S005-F06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.87 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Light Gray Halogen Free: No High Temperature: Yes LED: No

2DC-S005-G06 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 16V Current Rating: 3A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.45 Mating Plug: 1.45x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Light Gray Halogen Free: No High Temperature: Yes LED: No

2DC-S005-J14 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 0.65 Mating Plug: 0.70x2.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S005B100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-S005D100 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.50 Body Width: 9.00 Body Height: 11.00 Body Length: 14.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-S006-B05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 7.80 Body Height: 9.85 Body Length: 11.50 PCB to Top Height: 9.85 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S006-B11 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 7.60 Body Height: 9.75 Body Length: 11.50 PCB to Top Height: 9.75 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S006-B14 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 7.60 Body Height: 9.75 Body Length: 11.80 PCB to Top Height: 9.75 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S006-B15 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 7.60 Body Height: 9.75 Body Length: 11.50 PCB to Top Height: 9.75 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S006-B16 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 7.60 Body Height: 11.00 Body Length: 11.50 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-S006-C05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.45x5.50 Center Height: 6.00 Body Width: 7.80 Body Height: 9.85 Body Length: 11.50 PCB to Top Height: 9.85 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S006-C11 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.50x5.50 Center Height: 6.00 Body Width: 7.60 Body Height: 9.75 Body Length: 11.50 PCB to Top Height: 9.75 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S006-C12 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 6.00 Body Width: 7.60 Body Height: 9.75 Body Length: 11.50 PCB to Top Height: 9.75 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S006-D05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.00 Body Width: 7.80 Body Height: 9.85 Body Length: 11.50 PCB to Top Height: 9.85 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S006-D11 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 6.00 Body Width: 7.60 Body Height: 9.75 Body Length: 11.50 PCB to Top Height: 9.75 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S006-I18 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 24V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 6.00 Body Width: 7.80 Body Height: 9.85 Body Length: 11.50 PCB to Top Height: 9.85 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-S026-B01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026-B04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026-B05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-S026-B15 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 12.20 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026-B16 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.60 Body Width: 10.00 Body Height: 7.30 Body Length: 11.50 PCB to Top Height: 7.30 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026-B17 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 12.20 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026-B20F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.60 Body Width: 10.00 Body Height: 7.30 Body Length: 11.50 PCB to Top Height: 7.30 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S026-C04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026-C05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-S026-D04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026-D05 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-S026-I12 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026-L04 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.95 Mating Plug: 3.10x6.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026B301 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026C301 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.35 Mating Plug: 2.35x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S026D301 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.00x5.50 Center Height: 3.50 Body Width: 10.00 Body Height: 7.20 Body Length: 11.50 PCB to Top Height: 7.20 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S028-B01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 10A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.05 PCB to Top Height: 5.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-S028-B03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.10 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S028-B06F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 11.60 PCB to Top Height: 5.40 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S028-D02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.00 Mating Plug: 2.10x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.10 PCB to Top Height: 5.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S028-I01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 5.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.05 PCB to Top Height: 5.45 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Yellow Halogen Free: No High Temperature: Yes LED: No

2DC-S028B200 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 26V Current Rating: 7A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: 0.90 Body Width: 10.00 Body Height: 9.10 Body Length: 14.10 PCB to Top Height: 5.45 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S034-I01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 6.50 Body Width: 10.00 Body Height: 11.00 Body Length: 13.00 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S034I500 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 20V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 1.65 Mating Plug: 1.70x4.75 Center Height: 6.50 Body Width: 10.00 Body Height: 11.00 Body Length: 13.00 PCB to Top Height: 11.00 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S050-H01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.30 Body Width: 6.00 Body Height: 4.70 Body Length: 9.00 PCB to Top Height: 4.70 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S050-H03 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.30 Body Width: 6.00 Body Height: 4.70 Body Length: 9.00 PCB to Top Height: 4.70 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S050-H04F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.30 Body Width: 6.00 Body Height: 4.70 Body Length: 11.35 PCB to Top Height: 4.70 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S050-H07F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.50 Body Width: 6.00 Body Height: 4.80 Body Length: 11.35 PCB to Top Height: 4.80 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S050-H09F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 50V Current Rating: 2A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.30 Body Width: 6.00 Body Height: 4.70 Body Length: 9.00 PCB to Top Height: 4.70 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S050-H10F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: Hybrid Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.30 Body Width: 6.00 Body Height: 4.70 Body Length: 9.00 PCB to Top Height: 4.70 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S050-H13F DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 24V Current Rating: 4A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 1.30 Mating Plug: 1.35x3.50 Center Height: 2.30 Body Width: 6.00 Body Height: 4.70 Body Length: 9.00 PCB to Top Height: 4.70 Miscellaneous Status: Active Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S050-P01 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 12V Current Rating: 0.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 0.90 Mating Plug: 0.95x3.20 Center Height: 2.30 Body Width: 6.00 Body Height: 4.70 Body Length: 9.00 PCB to Top Height: 4.70 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S050-P02 DataSheet Inquiry

General PCB Mounting: Top-Mount Orientation: Right Angle Termination Style: SMT Voltage Rating: 12V Current Rating: 0.5A Switch: Yes Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 0.90 Mating Plug: 0.95x3.20 Center Height: 2.30 Body Width: 6.00 Body Height: 4.70 Body Length: 9.00 PCB to Top Height: 4.70 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S057-B01 DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 15V Current Rating: 9A Switch: No Signal Pin: No Front Grounding: No Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 11.40 Body Height: 13.80 Body Length: 14.60 PCB to Top Height: N/A Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: No LED: No

2DC-S057-B06F DataSheet Inquiry

General PCB Mounting: Cable-Mount Orientation: Vertical Termination Style: Cable Voltage Rating: 15V Current Rating: 9A Switch: No Signal Pin: No Front Grounding: Yes Dimensions Center Pin Diameter: 2.50 Mating Plug: 2.50x5.50 Center Height: N/A Body Width: 11.40 Body Height: 13.80 Body Length: 14.60 PCB to Top Height: N/A Miscellaneous Status: Active Shielding: No Body Color: Black Halogen Free: Yes High Temperature: No LED: No

2DC-S060-002 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 30V Current Rating: 10A Switch: No Signal Pin: Yes Front Grounding: No Dimensions Center Pin Diameter: 0.80x5.00 Mating Plug: 0.60x5.10x7.40 Center Height: -0.10 Body Width: 10.00 Body Height: 10.55 Body Length: 15.00 PCB to Top Height: 5.35 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S060-004 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 42V Current Rating: 10A Switch: No Signal Pin: Yes Front Grounding: No Dimensions Center Pin Diameter: 0.80x5.00 Mating Plug: 0.60x5.10x7.40 Center Height: -0.10 Body Width: 10.00 Body Height: 10.55 Body Length: 15.00 PCB to Top Height: 5.40 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S060-007 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 42V Current Rating: 10A Switch: No Signal Pin: Yes Front Grounding: No Dimensions Center Pin Diameter: 0.80x5.00 Mating Plug: 0.60x5.10x7.40 Center Height: -0.10 Body Width: 10.00 Body Height: 10.55 Body Length: 15.00 PCB to Top Height: 5.40 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: No High Temperature: Yes LED: No

2DC-S060-008 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 42V Current Rating: 10A Switch: No Signal Pin: Yes Front Grounding: No Dimensions Center Pin Diameter: 0.80x5.00 Mating Plug: 0.60x5.10x7.40 Center Height: -0.10 Body Width: 10.00 Body Height: 10.60 Body Length: 15.00 PCB to Top Height: 5.40 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No

2DC-S060-010 DataSheet Inquiry

General PCB Mounting: Mid-Mount Orientation: Right Angle Termination Style: DIP Voltage Rating: 42V Current Rating: 10A Switch: No Signal Pin: Yes Front Grounding: No Dimensions Center Pin Diameter: 0.80x5.00 Mating Plug: 0.60x5.10x7.40 Center Height: -0.10 Body Width: 10.00 Body Height: 10.55 Body Length: 15.00 PCB to Top Height: 5.40 Miscellaneous Status: Obsolete Shielding: Yes Body Color: Black Halogen Free: Yes High Temperature: Yes LED: No
